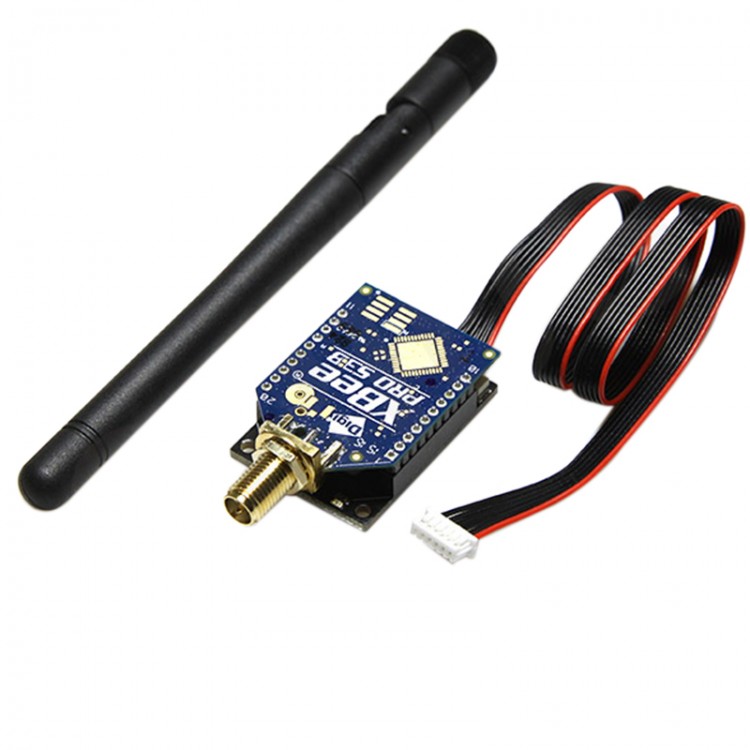

CRIUS XBee PRO 900HP S3B 250mW 920Mhz Module with Adapter RP- SMA Wireless Kit
XBEE Specifications:
- Interchangeable air and ground modules
- Micro USB port
- 6-position PicoBlade connector with UART interface
- Serial interface 3.3V UART
- 500mA DC-DC Converter
- FT231XQ USB to serial IC
- EMI filtering and ESD protection for USB
- Supply voltage: 4~17V DC (from 6-position connnector)
- XBee PRO S3B 902~928MHz 200kb/s module
- 250mW maximum output power (adjustable)
- RP-SMA connecter
-Transmit current: 300mA (3.3V) max at 24dBm
- Receive current: 40mA (3.3V) max
Adapter specification:
- With both USB and TTL interface
- Reset button
- FT213X USB to TTL chip
- DC-DC step dowm module
Package Includes:
- XBee PRO 900HP S3B module x 1
- 2.15dB dipole antenna 115mm x 1
- XBee adapter x 1
- Default Pixhawk Connect cable x 1
Normally. it needs 1pcs to work together, please buy 2pcs if system requires, thanks
