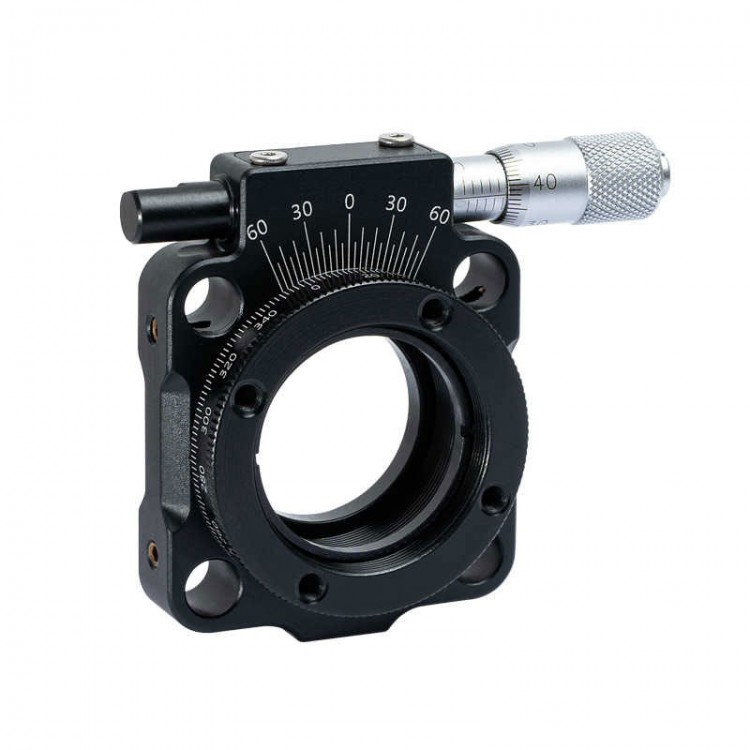

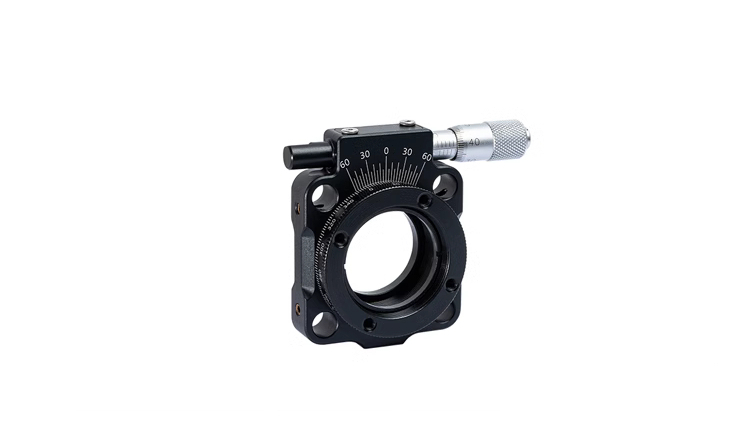

CRM1PT Precision 30mm Cage System Rotation Mount for Ø1" (Ø25.4 mm) or Ø25 mm Optics M4 Hole
Features:
* 360° coarse rotation, lockable
* 2° graduations on dial, labeled every 20°
* ±7° of precision micrometer adjustment
* Vernier scale provides 5 arcmin resolution
* 8-32 (M4) tapped mounting hole
* Includes an SM1RR retaining ring
* Accepts Ø1" (Ø25.4 mm) or Ø25.0 mm optics up to 0.37" (9.4 mm) thick
* Compatible with 30 mm cage system
Description:

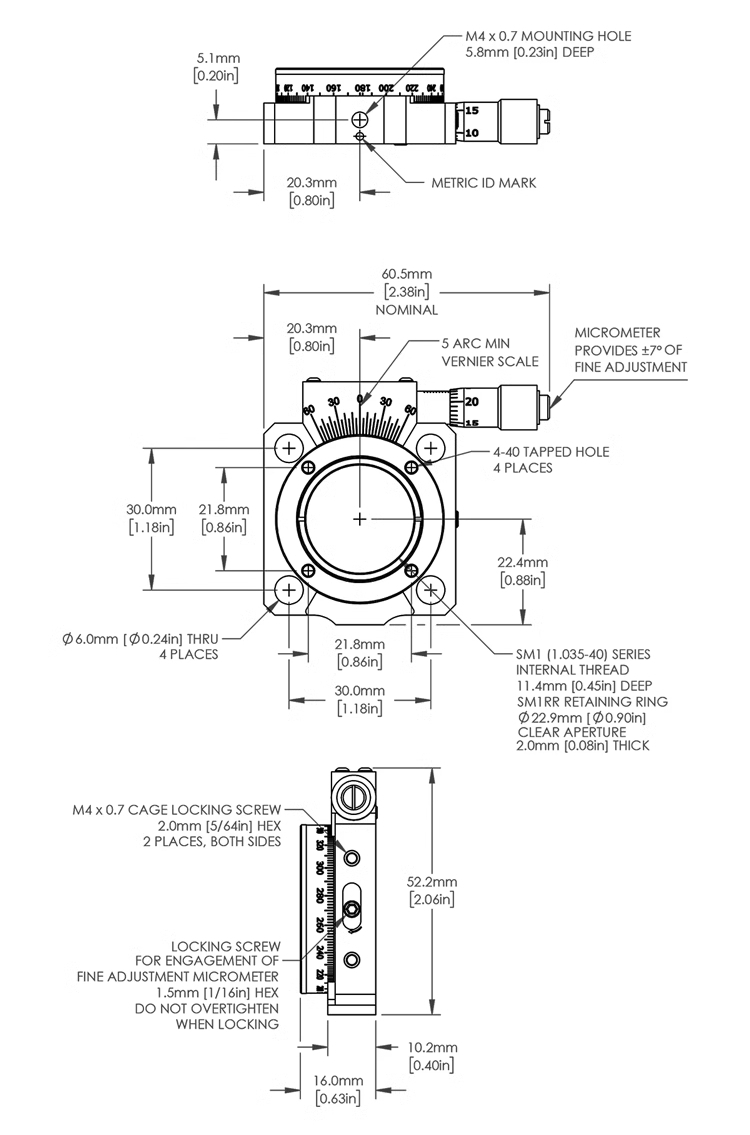

The CRM1PT is designed to mount Ø1" (Ø25.4 mm) optics up to 0.37" (9.4 mm) thick in an SM1 threaded rotation carriage. The optic is secured using the included SM1RR retaining ring. For thicker optics, any of our SM1 series of lens tubes can be threaded into the carriage.
The smooth rotation mechanism on the CRM1PT can be manually rotated to any position. When the rotation carriage is locked, the high-precision, backlash-free micrometer can then be used to fine tune the position of the rotation carriage over a range ±7°. The vernier scale provides a resolution of 5 arcmin between consecutive marks. As the mount is rotated across the entire vernier scale, there is a cumulative error of up to ±12.28 arcmin.
The CRM1PT is compatible with the 30 mm cage system and the M4 tapped mounting hole allows the rotation mount to be secured on a post.
Specifications:
* Model number: CRM1PT
* Item name: Precision Cage Rotation Mount
* Screw hole: M4
* Design: with micrometer drive and for Ø1" optics
Package Included:
* 1 x Rotation mount
Packaging Details:
* Weight: 0.4kg
