CS43131 Headphone Amplifier DAC Decoder DSD256 684Khz 32Bit Type C Adapter For Android Cellphones
Features:
- With light, the color of the light will change
- Easy to operate with a button
- CS43131 headphone amp
- With a multi-function button: For Android device, press the button to pause or select songs, double click or three clicks to choose previous or next song
- When Hiby turns on DSD hard-decoding, the light turns from green to blue
- CS43131 and SA9312L decoding chips for powerful performance
- Sampling rate 384khz, 32bit
Specifications:
- DAC chip: CS43131
- THD+N: <0.00028% (32Ω load, 1.2Vrms)
- Output level: 2Vrms (300Ω load); 1.61Vrms (32 Ω load)
- Output power: 160mw
- Signal to noise ratio: 127db
- Frequency response: 5Hz~40kHz, +/-0.5dB
- Noise level: <0.9uV
- PCM: 32bit/384kHz
- DSD: dsd64, dsd128, dsd256
- Net weight: host weighs 8.8g; host and cable weighs 15.5g
- Size: host 57.8*17*8.1mm; cable length 125mm
- Multifunctional button: For Android: Pause/play/switch songs (press the button twice or three times to switch)

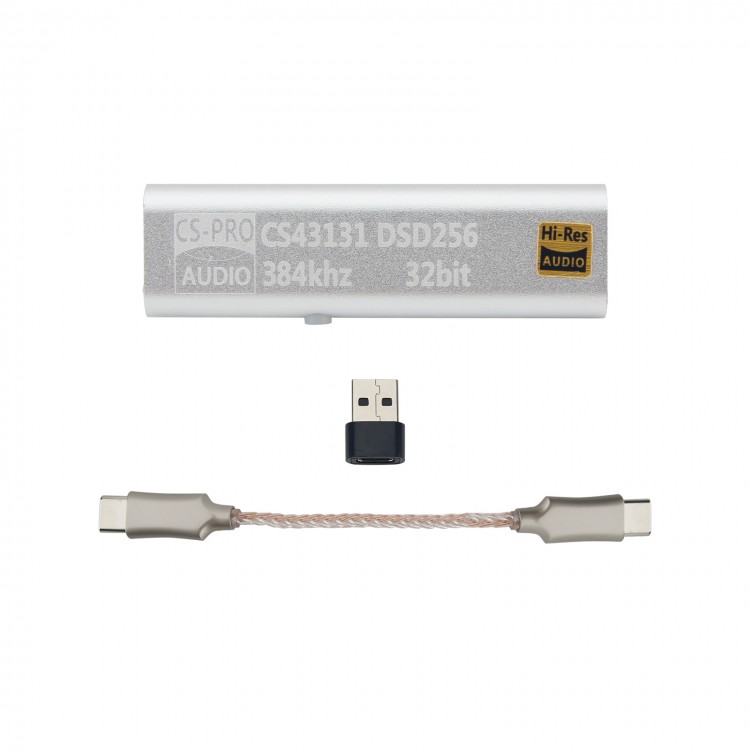

Package Included:
- 1 x Headphone Amp DAC Host
- 1 x Adapter Cable
- 1 x USB Adapter
- 1 x Iron Box
Note:
- It does not support phone calls.
- The version for Android comes with a USB adapter.
