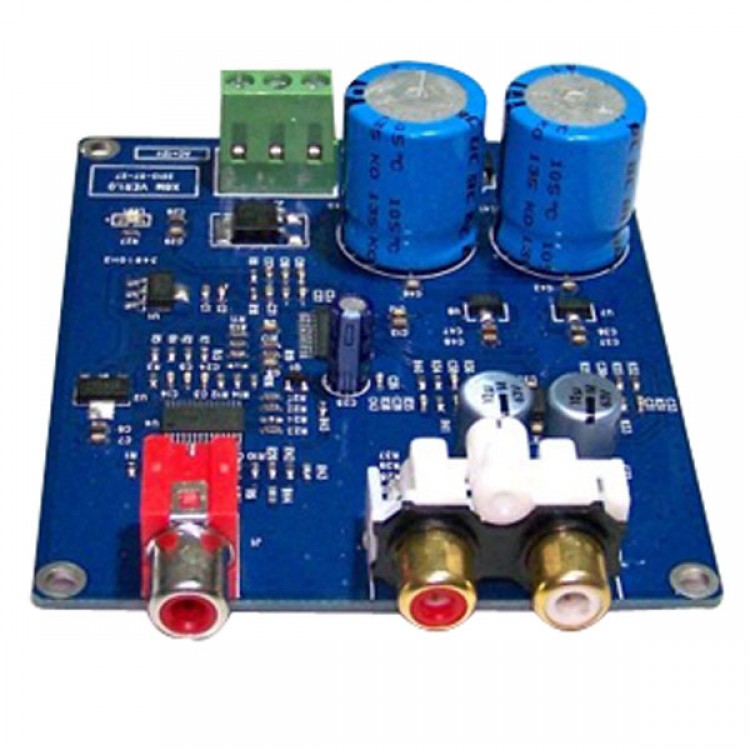

CS8416+CS4398 24BIT/192K DAC HIFI Decoder Board Sound Card

CS8416+CS4398 24BIT/192K DAC HIFI Decoder Board Sound Card

Description:
- CS8416 + CS4398 coaxial DAC decoder board, the highest support 24 bit / 192 k sampling rate, CS4398 sound quality is exquisite, a lot of high-end amplifier and decoder have it.
- Support CS8416 digital audio receiver, such as the next generation DVD - audio, audio formats required frequency of 192 KHZ. By up to 192 KHZ sampling frequency receive and decode audio data, it can ensure the professional and consumer audio products exchange S/PDIF and AES/the EBU audio data. Lo input multiplexer allows up to eight channels of digital audio data input. This input the second output port multiplexer allows S/PDIF pass-through function, increase the system flexibility. It has low clock jitter repair mechanisms, generated from the input audio stream is very pure clock recovery. The device also allows you to select the output signal to three different common output port.
- CS4398 is A perfect stereo 24/192 KHZ digital to analog (D/A) conversion system. System with digital to the D/A, 0.5 decibels step volume control, ATAPI channel mixing, optional fast and slow digital interpolation filter, and A mismatch finalize the design technology of electric fault tolerance and eliminate the distortion of sampling several Delta - Sigma regulator. The system also equipped with more than one element transformation capacitance and low pass filter with differential analog output.

Parameters:
- Plate size: 75 * 90 mm
- Power supply: 12 v ac
- Output range: 1.8 V (RMS)
- Signal to noise ratio: > 100 db (A)
- Distortion: < 0.01% (THD + N)
