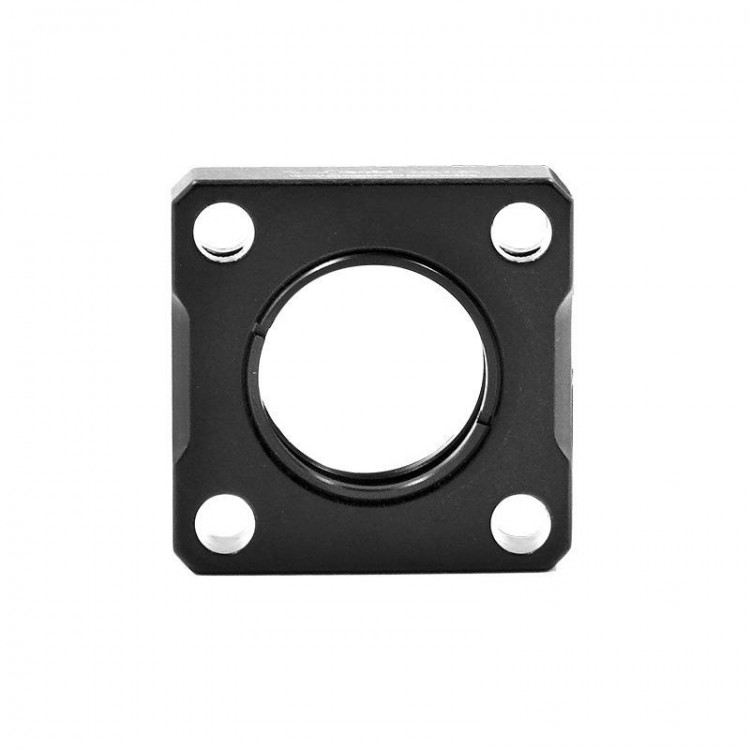

CSJ-30 SM1 Clamping Ring Type Lens Frame 30mm Cage Adjustment Frame for Optics Experiment Components
Description:
- There is a SM1 (1.035"- 40) threaded hole in the middle, compatible with our Ø1 inch lens casing. You can also directly install the thickest 0.2-inches (5mm) Ø1-inch optical parts at the center of the threaded hole, including two CSK3 snap ring.
- Each cage plate is equipped with an M3 locking fixing screw located on the side of the through hole, and the double locking screw allows the two extended cage rods to be inserted and firmly locked in place, achieving a rigid connection between the two cage system sub assemblies.
- More conveniently, the cage plate contains an M4 screw hole for installing extension rods. At the same time, the cage plate can be paired with RMS adapters to integrate threaded components such as the objective lens into the 30mm cage system.
Features:
- Install the optical components directly into the 30mm cage system assembly
- Letter with standard SM1 thread (1.035"-40)
- The connecting rod can be installed through the M4(8-32) threaded hole
- Thickness: 0.35 inch (8.9mm)
- The aluminium material blackened by oxidation
- Limit holes are used for 1 inch optical elements
Package Included:
- 1 x Cage Adjustment Frame
Note:
- The rod displayed in the picture is not included, only for demonstration.
