CSR8675 Bluetooth 5.0 DAC PCM5102A Speaker Receiver Assembled For APTX-HD Without Power Adapter

CSR8675 Bluetooth 5.0 DAC PCM5102A Speaker Receiver Assembled For APTX-HD Without Power Adapter

Version Introduction:
- For LDAC: For SBC/AAC/APTX/LDAC. Support for LDAC 24BIT 94K transmission.
- For APTX-HD: For SBC/AAC/APTX/APTX-HD. HiFi decoding for APTX HD. Audio technology can ensure that Bluetooth-enabled devices can provide HD audio. It can protect audio data during audio transmission, providing a listening experience better than CD. With it, you can enjoy immersive listening quality when using wireless devices.

Features:
- Bluetooth 5.0 lossless transmission, using PCM5102A to decode.
- Bluetooth 5.0 version is more stable than 4.2 version, transmission distance is farther, and power consumption is only half of that of version 4.2. Easily link various mobile phones and tablets. Really lossless transmission, pure sound quality at CD level. Transmission speed is faster and power consumption is lower. Low power consumption and strong compatibility.
- Solve delay problem thanks to the technology for APT-X LL. For games and multimedia applications, it is essential for audio and video synchronization. Allows you to listen to the streaming media of common media services, and music sound quality is consistent.
- Upgraded capacitors are used.
- CSR8675 supports TWS I2S output.
- PCM5102 decoding, I2S protocol transmission, decoding to further improve sound quality and resolution. SNR 112db, direct output 2.1V RMS audio voltage, high frequency sound is not harsh, low frequency sound is full.
- In order to have lower output impedance and good matching output, the product adopts HIFI dual op amp, which can be replaced.
- Power supply requirements: The default 5532 can recommend 15V power supply! Power adatper is not included. For other operational amplifiers, this machine comes with a 12V (5.5X2.1) DC socket, which can be realized by an external adapter.

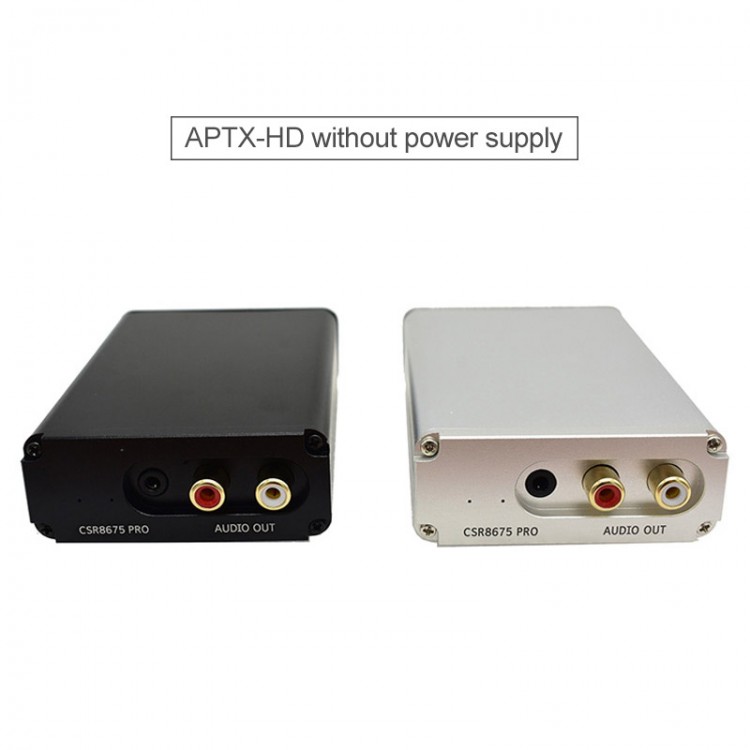

- In front panel, 3.5mm headphone output, built-in headphone amp can drive 300 ohm headphones, and RCA output can be connected to a power amplifier.
- In rear panel, we have Bluetooth antenna, gold-plated socket.
- 12V DC power supply interface, USB interface can be connected to a computer to decode! With Bluetooth antenna, signal is more stable.
- Bare machine size: 97 × 71 × 25mm.
- Military-level dark PCB design, fully anti-static process production.
- The first four groups of independent regulated power supply, better internal separation, 4 original tantalum capacitors, decoupling effect is very ideal.
- Bluetooth 5.0 core chip, CSR8675 core board! Multiple shielding protection circuit, large area ground wire, strong anti-interference!
- PCM5102A has 112dB stereo DAC with 2VRMS output capability.

Package Included:
- 1 x Set of Bluetooth 5.0 DAC

Note:
- Please note that this is a Bluetooth receiver without transmitting function!
- It is assembled and ready to use.
- If a dedicated 15V 2A power adapter is needed, please contact us to pay extra money.
- Optional colors: Silver, Black. Please choose the color you want when purchasing.
