CSR8675 Bluetooth 5.0 Decoder Board Wireless Audio Receiver Module ES9028K2M Decoding LDAC APTX HD

CSR8675 Bluetooth 5.0 Decoder Board Wireless Audio Receiver Module ES9028K2M Decoding LDAC APTX HD

Description:
This version is an upgraded version. The decoding is not the general PCM5102A or ES9018, but the upgraded version ES9028K2M, which has twice the decoding accuracy of ES9018 and twice the PCM5102A. With the addition of CPU intelligent optimization coprocessor, the sound quality is better.

Support ATTX HD and LDAC 24BIT96K transmission at the same time.

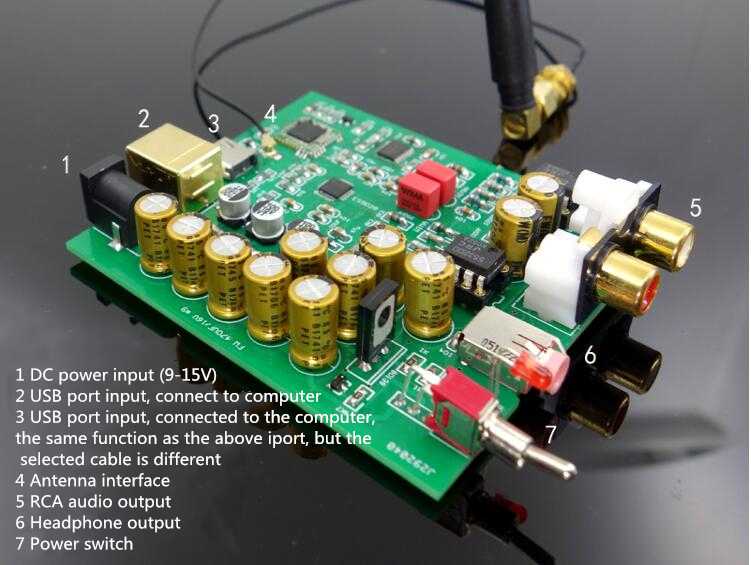

When you connect it to computer as a sound card, the data cable can be the type-C interface mobile phone charging data cable, or the USB A-B data cable, because there are 2 interfaces, you can choose one to use.

PCB size: 86 x 75 x 21mm

Features:
-The decoder comes with a delicate single-chip microcomputer for independent optimization. It can perform comprehensive monitoring and optimization for ES9028 decoding and S8675 Bluetooth reception.
-High-speed Japanese nichicon capacitor rectangular array, coupled with electronic active filtering, allows the decoder to work in a very pure power supply environment with very low noise.
-Germany Vishay MMA0204 wafer resistance, red WIMA capacitor, double-precision NE5532 low distortion op amp low-pass output circuit, full sound quality, very good dynamics, natural and delicate vocals, excellent music details.
-The signal-to-noise ratio of the ES902802M chip is as high as 129dB, while the distortion rate is -120dB.
-Bluetooth 5.0 core chip, CSR8675 core board! Heavy shielding protection circuit, large area ground wire, strong anti-interference.
-With wide compatibility, compatible with both mobile phone and computer.

Package List:
1 x Bluetooth 5.0 Decoder Board
