Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $34.08 | $33.39 | $32.35 | $30.95 | Contact US |

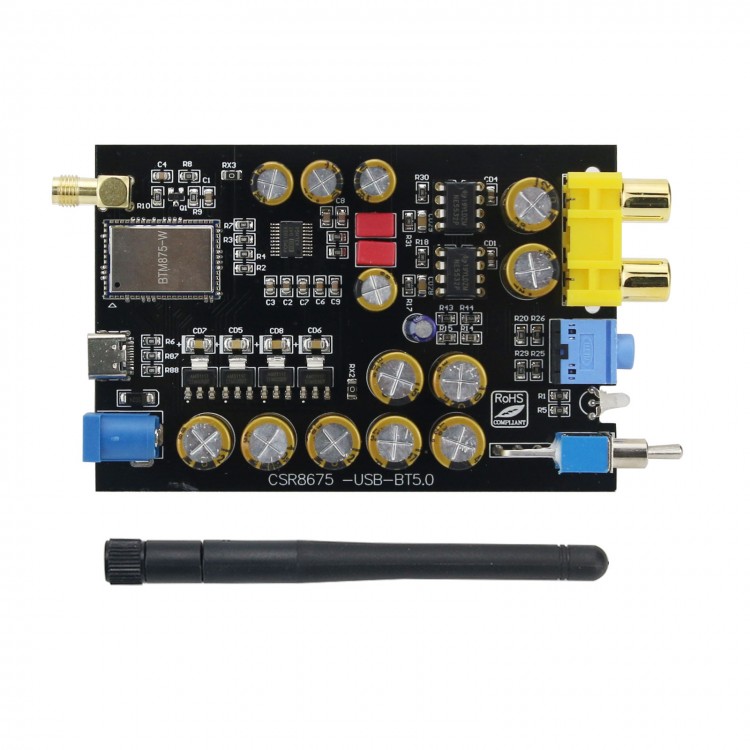

CSR8675 Bluetooth Audio Decoder Board Wireless Receiver Board PCM5102A BT5.0 APTX HD Main Board Finished
Features:
- Bluetooth lossless transmission for CD-level sound
- CSR8675+PCM5102A Bluetooth decoder
- Compatible with APTX, APTX HD
- 3.5mm Output port for your headphone
- Solve APTX-XLL (APTX Low Latency) problems
- It can be powered via USB cable or DC 12V power supply
- A Bluetooth antenna enables stable performance
- Premium PCB board with anti-static process
- The first four groups are independently regulated and powered, and the internal resolution is better. Four AVX original tantalum capacitors are used as backing, and the decoupling effect is excellent
Parameters:
- Chip: CSR8675+PCM5102A
- Support: ATPX, ATPX HD 24BIT Transmission, TWS I2S Output
- SNR :112db, Direct Output 2.1V RMS Audio Voltage
- DC Input (5.5X2.1): For 12V Power DC Adapter (300MA or more).
- USB Input: For 5V Micro USB Charger (500MA or above).
- Output: RCA Output; 3.5mm Headphone Output
Package Included:
- 1 x Bluetooth Audio Decoder Board
Note: Power adapter is not included in this package. Thank you!
