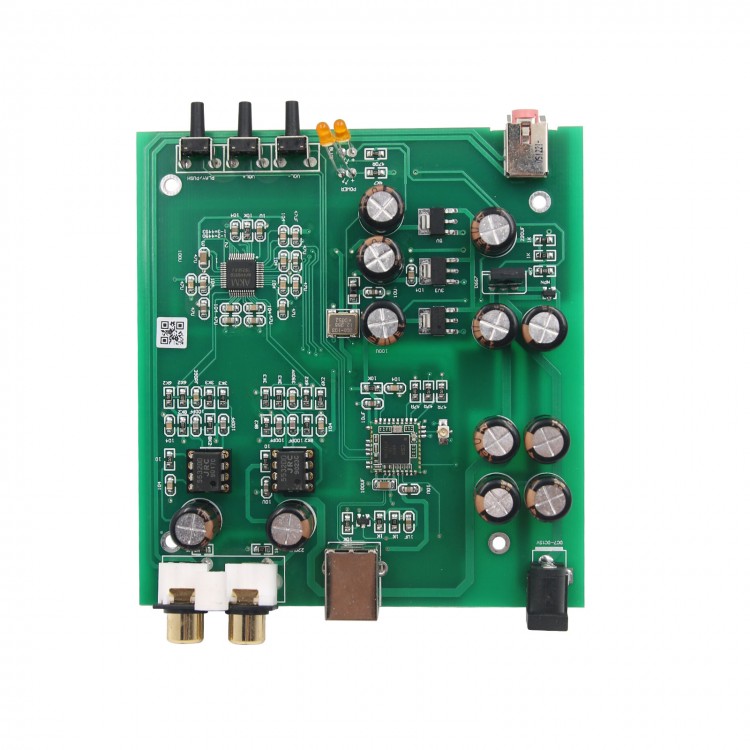

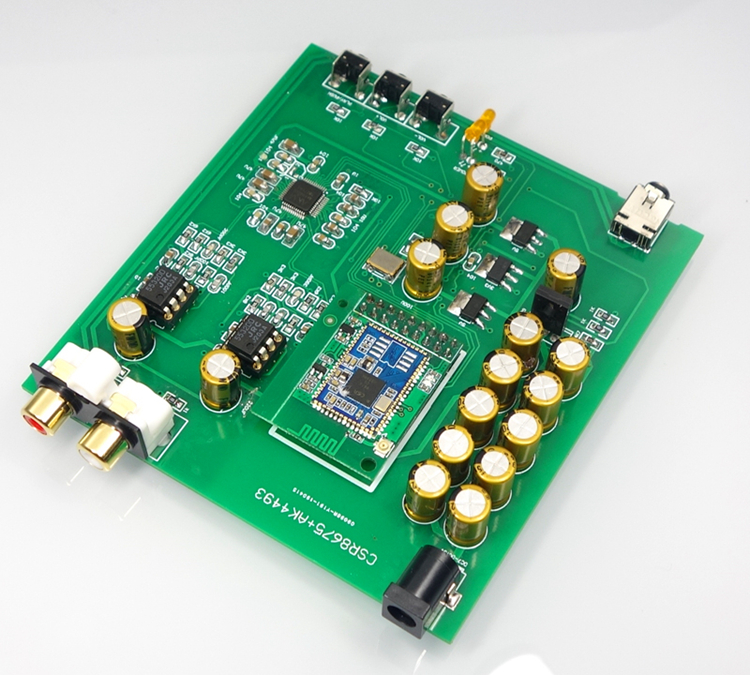

CSR8675 DAC Bluetooth 5.0 DAC Board Support APTX HD AK4493 Outperform ES9038 Finished
Features:
- Can be used with headphone, headphone amplifier and active speakers.
- Adopt CSR8675 Bluetooth chip for input receiving. The chip supports APTX-HD 24Bit and Bluetooth 5.0.
- AK4493EQ is used as output chip. Its sound is close to AK4497 and more delicate. It out-rivals ES9018, ES9028Q2M, ES9038Q2M, PCM1794 and the like.
- HD decoding enables HD lossless music quality.
Specifications:
- Power Supply: DC12V (5.5-2.1 Port) , 1-2A
- PCB Size: 103 x 100mm

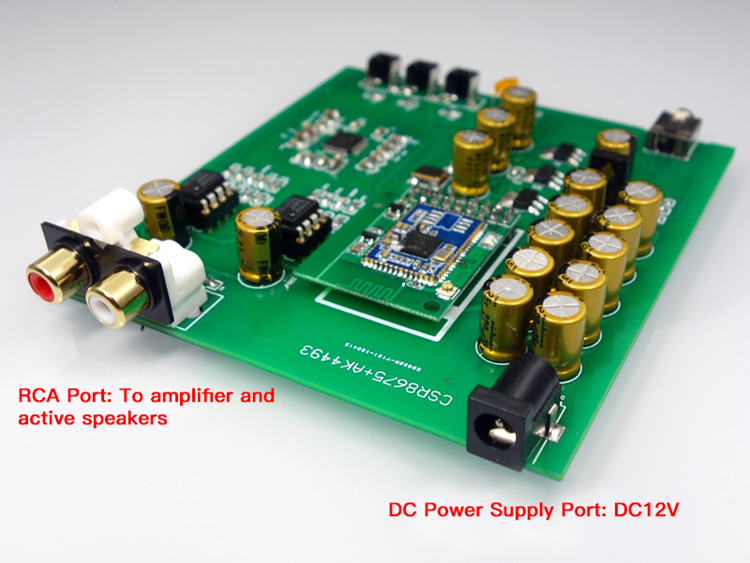

- Output Ports: 3.5mm Headphone Port + RCA Port
- Bluetooth Receiving: CSR8675
- Decoding: AK4493EQ

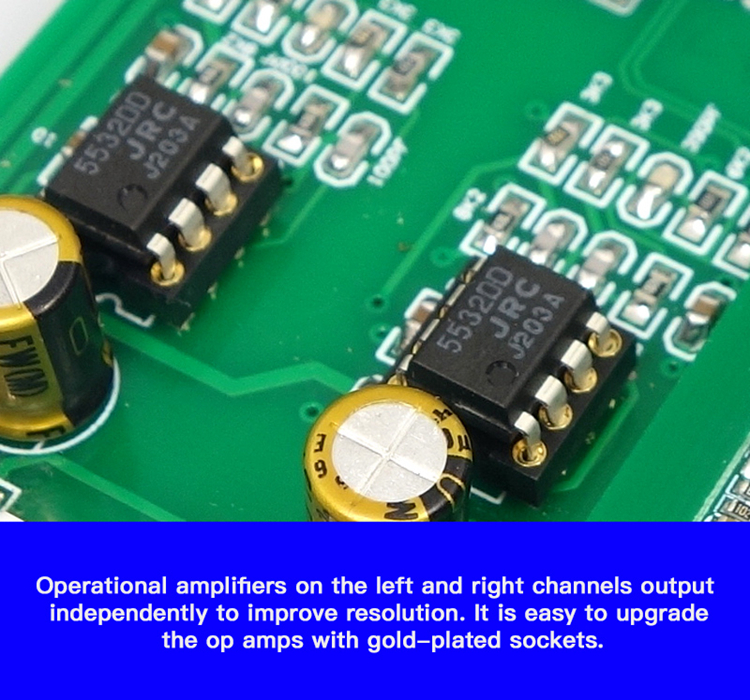

- Operational Amplifier: Doubled Accuracy JRC5532 (Better than TI)
- Bluetooth Compatible Protocols: A2DP, AVRCP, HFP, TWS, AAC, I2S, APTX, APTX-HD, and APTX-LL
Package Included:
- 1 x CSR8675 DAC Board Finished
Note: It is finished and ready to use.
