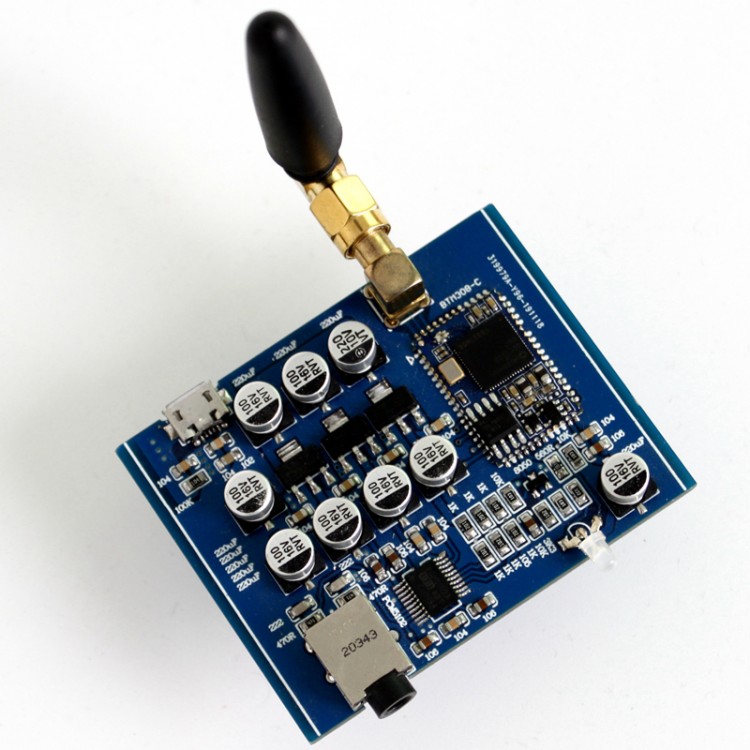

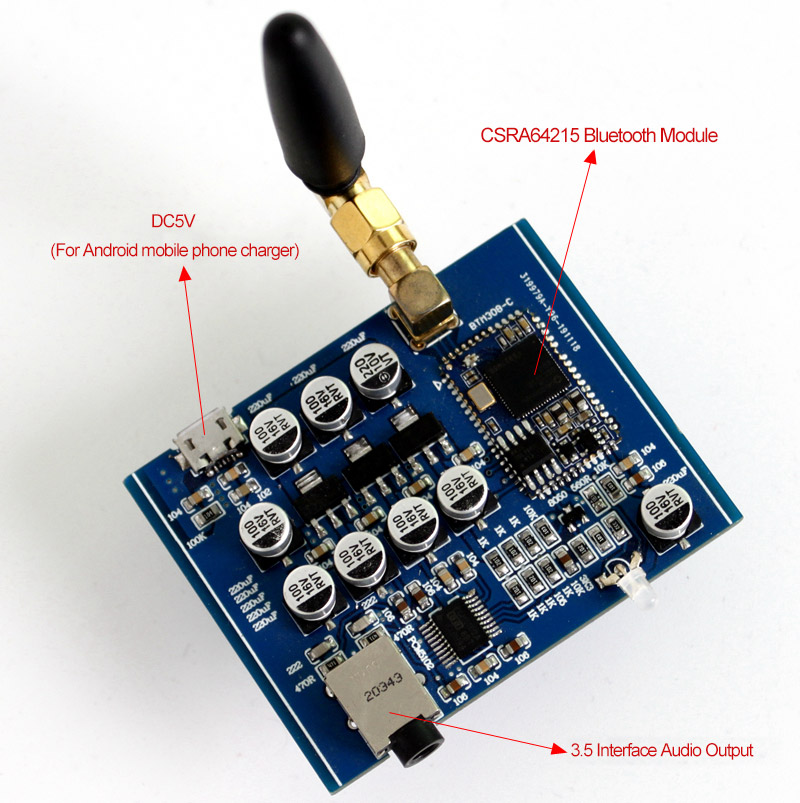

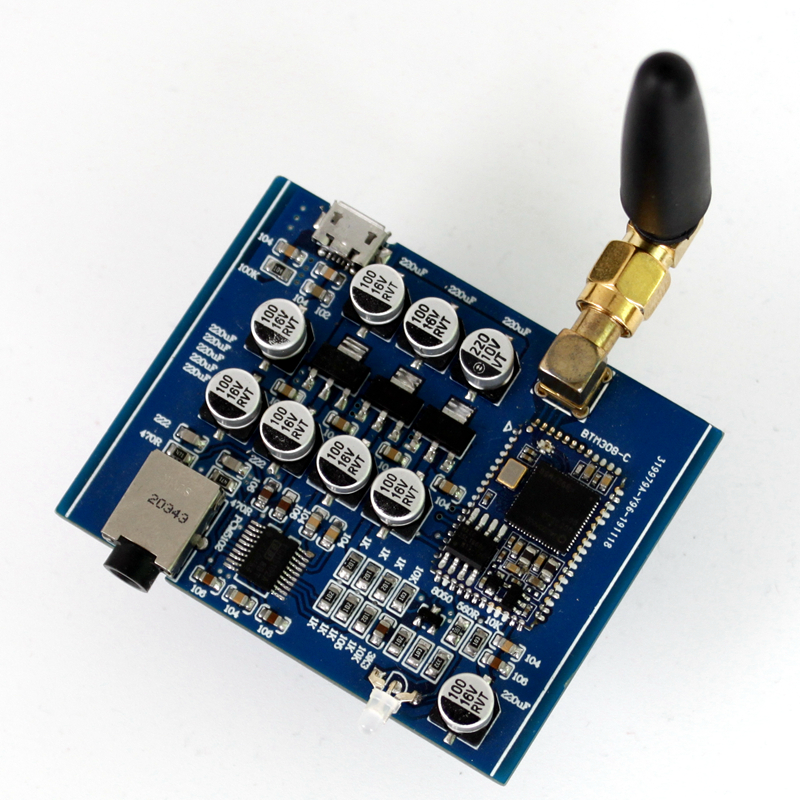

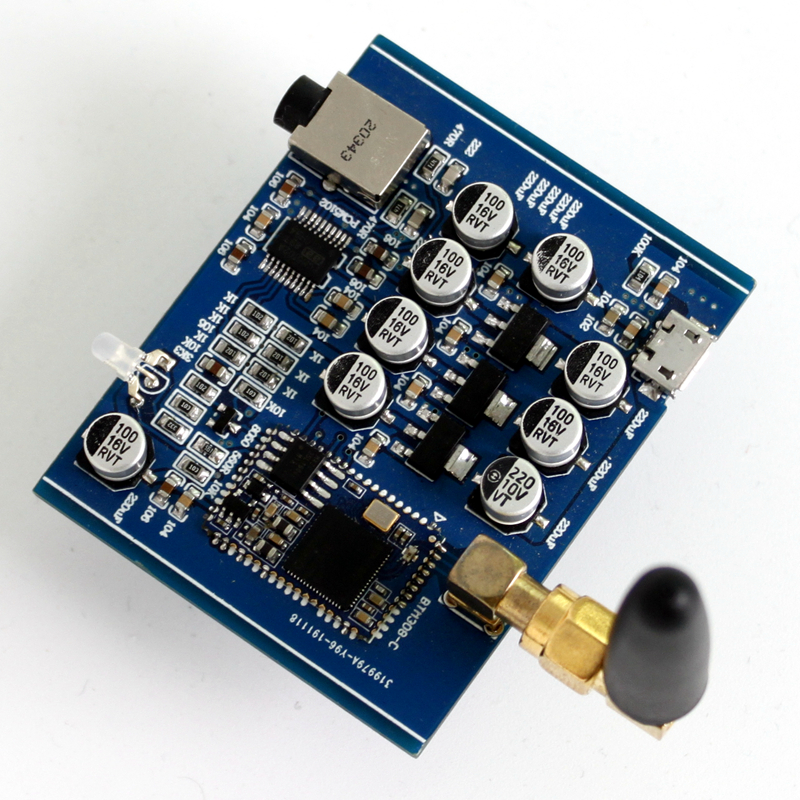

CSRA64215 Bluetooth Module Bluetooth 4.2 DC 5V Support For APTX-LL A2DP AVRCP HFP TWS AAC I2S
Features:
- Using original CSRA64215 Bluetooth module.
- Adopt CSRA64215 chip, support for A2DP, AVRCP, HFP, TWS, AAC, I2S, APTX, APTX-LL, etc.
- 4M SPI FLASH memory chip.
- Main circuit of electrolytic capacitor signal adopts famous brand of Taiwan, and the main filter capacitor adopts chip capacitor, which ensures a strong and continuous power support.
- Resistors are selected with high-precision chip resistors to ensure a good signal-to-noise ratio of the whole machine.
- PCB adopts 1.6mm thick double-sided board, 1.0oz copper to ensure good passing performance of large and small currents. First-class PCB quality.
- Bluetooth version 4.2.
- The way to connect Bluetooth is the same as that of ordinary devices.
Basic Parameters:
1. Working Voltage: DC 5V (Support charger for Android. Plug and play)
2. Input Current: 1A
3. Receiving Range: 10m
4. PCB Size: 61 x 49mm
Package Included:
- 1 x Set of Bluetooth 4.2 Module
