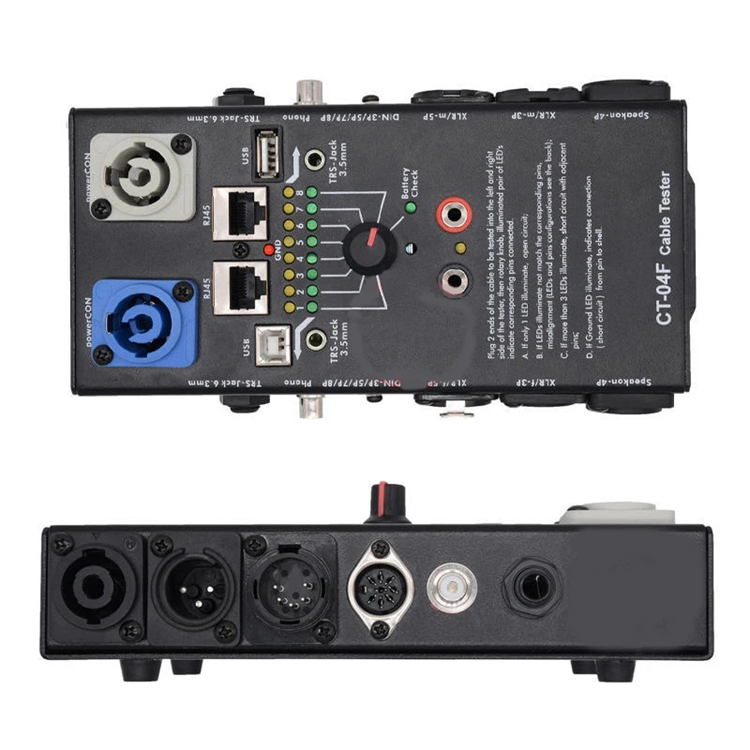

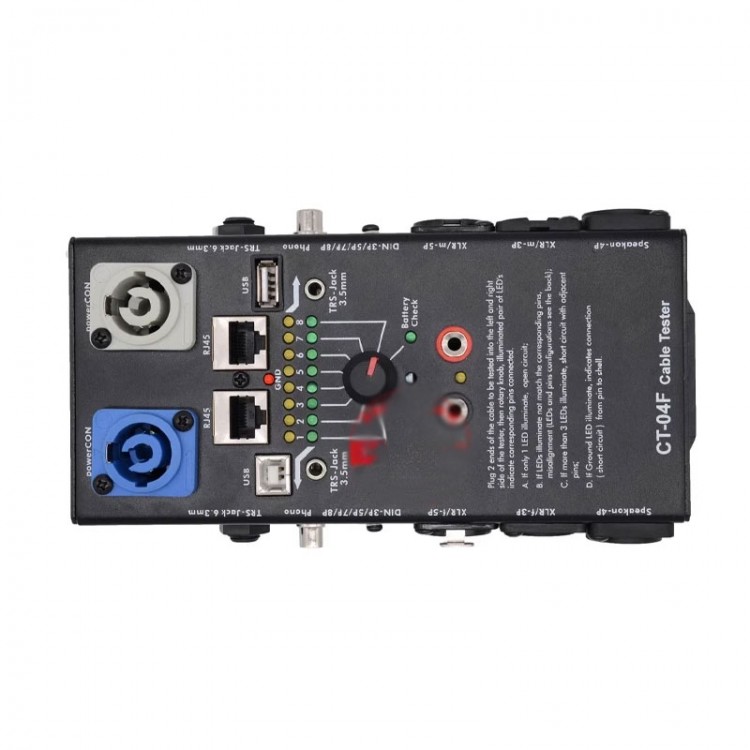

CT-04F Audio Cable Tester RJ45 Cable Tester (Measures 15 Types) for PowerCON Speakon USB DIN-5P
Features:
- It is a multifunctional cable tester
- CT-04F audio cable tester can measure 15 types
- It adopts high-quality steel plate and precise processing technology
- It is easy to operate
Package Included:
- 1 x Audio cable tester
Packaging Details:
- Weight: 0.9kg
Note:
- It is powered by a 9V battery which is not included in the package.
Tutorial:
1. Install a battery:
Put a 9V battery into the battery compartment at the bottom of the cable tester and close the battery compartment.

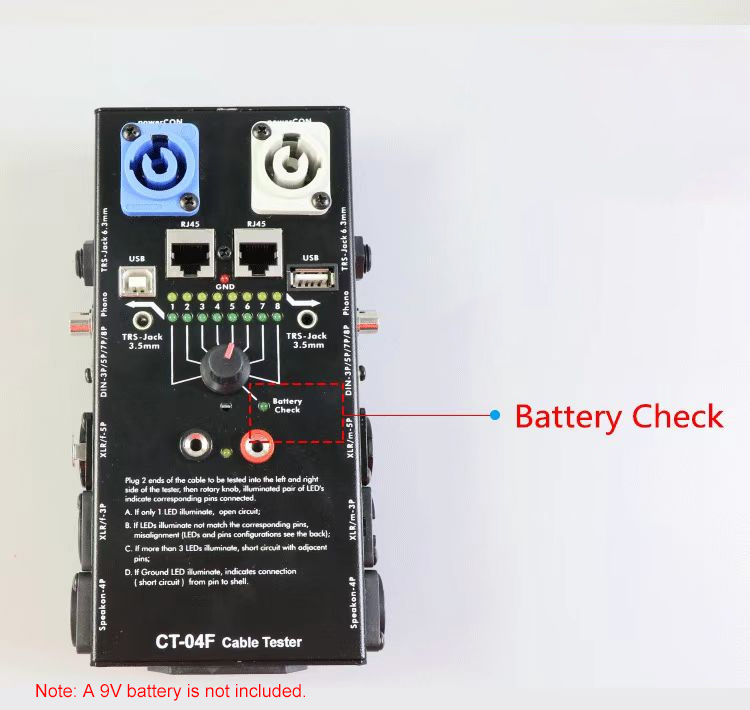

2. Detect the battery:
Twist the knob of the tester to the far right. If its Bettery Check green light is on, it means that the battery is working properly and the tester can work properly. If the Bettery Check indicator does not light up, open the battery compartment to check the polarity of the battery or whether the battery has electricity.

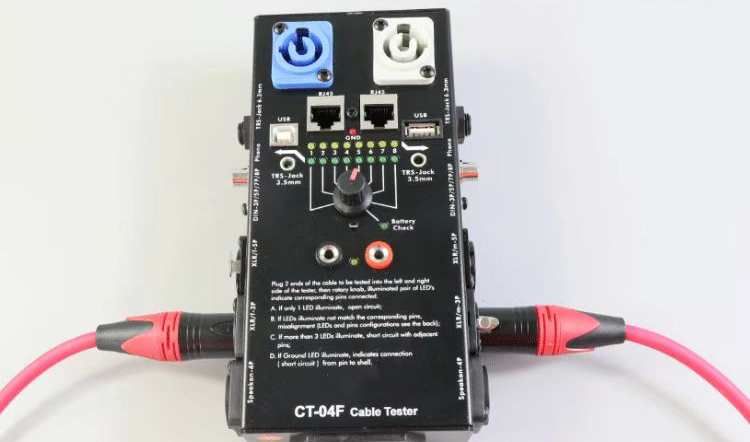

3. Test your cables:
3.1. Insert the cable to be tested into the corresponding jack.
3.2. Rotate the knob to position "1". Yellow and green lights are on at the same time, which means that there is no problem with the "PIN1" connection of this line. And you can turn the knob to "2", "3", and other positions to detect if the connection is working.
