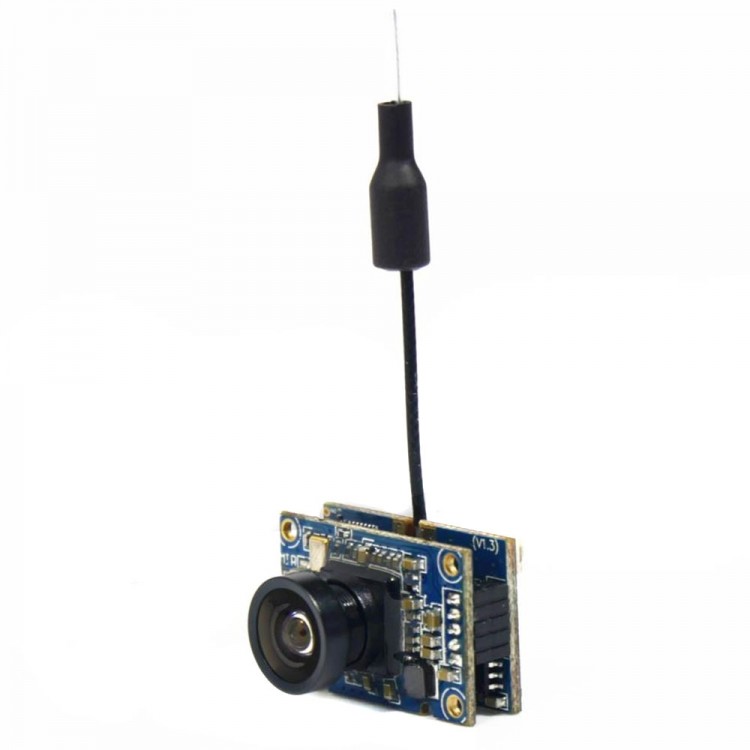

CT25 5.8G 40CH 25MW FPV AV Transmitter with 700TVL Camera 3dB Antenna Telemetry Tx for Quadcopter Drone
Feature:
- Tiny size,integrated transmitter & camera for FPV, a 5.8G 25MW 40CH transmitter soldered 3dbi antenna suitable for indoor coreless motor to race,even separated by the wall still perform well.

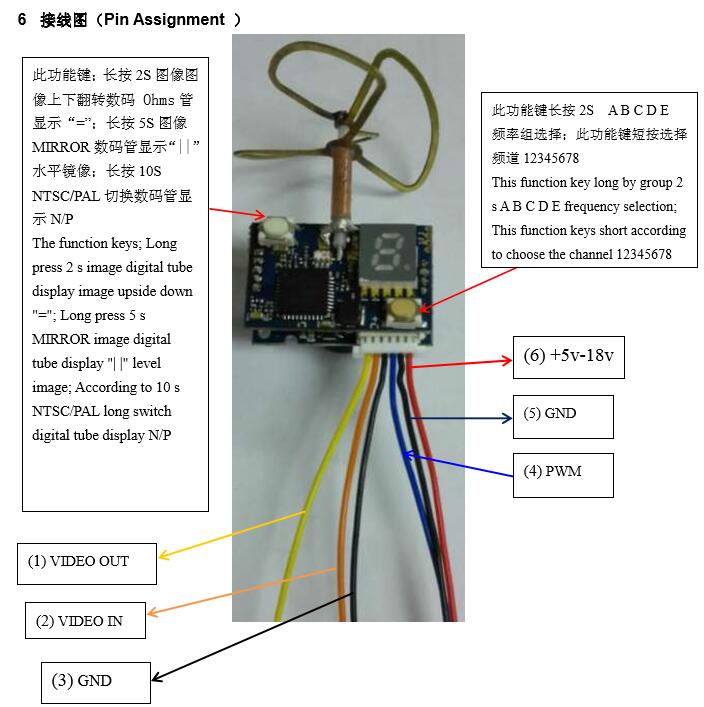

- Support buttom push and PWM selection,NTSC/PAL switchable and external OSD as well as vertical inverted image and horizontal image exchange.

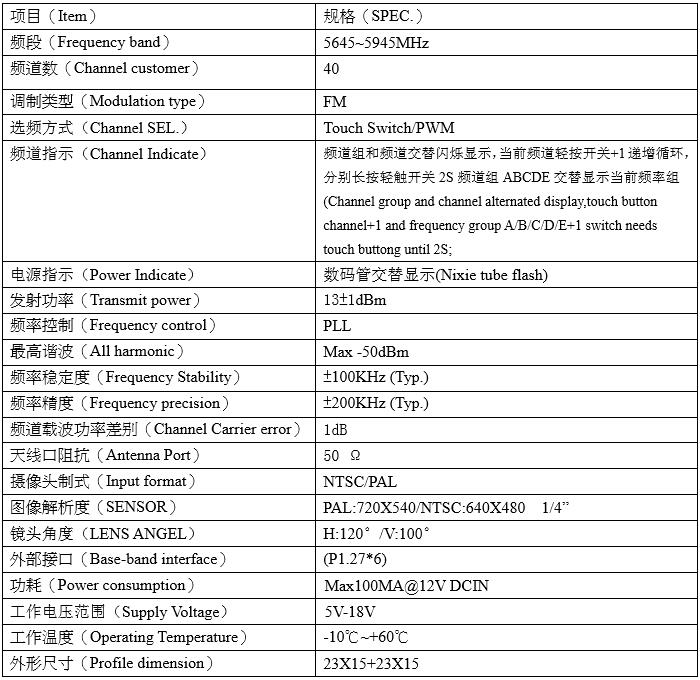

Parameter:
- Work voltage:5-18V
- Work current:100ma@12V
- Work temprature:-10 to 60 centi degree
- Video output:PAl / NTSC
- Power:25mw/13±1dBM

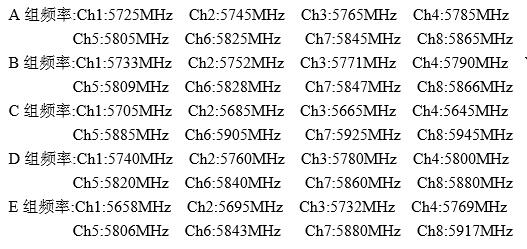

- Frequency point:5.8G 40CH Raceband
- Camera:700TVL
- Effective pixel:PAL(720*540),NTSC(640*480),1/4 inch
- Sensor:1/4 inch HD color CMOS
- Angle:H(120 degree),V(100 degree)
Package list:
- 1 x CT25 5.8G 40CH 25MW FPV AV Transmitter
