CUAV Autopilot Pixhawk PX4 Flight Controller Pixhawk 2.4.7+M8N GPS+2pcs 1000mW 433MHz Radio Telemetry

CUAV Autopilot Pixhawk PX4 Flight Controller Pixhawk 2.4.7+M8N GPS+2pcs 1000mW 433MHz Radio Telemetry

Description:
PIXHAWK is a high-performance autopilot-on-module suitable for fixed wing, multi-rotors, helicopters, cars, boats and other robotic platform that can move. It is targeted towards high-end research, amateur and industry needs and combines the functionality of the PX4FMU + PX4IO.

Features:
- Rich Interfaces: Multiple interfaces for endless functions in the future.
- Seamless Switching for APM & PX4 Users: It provides access to users using APM and PX4. All external devices can be automatically detected and compatible with our flight controller. It fits external equipment, including digital airspeed meter, colorful LED indicators and magnetometer.
- Powered by Collaborative System: It is powered by a coordinated system of voltage and current sensor outputs. Excellent diode controller enables automatic failover and redundant power input. It supports high voltage (up to 10V) high current (10A+) steering gear. There is external output over-current protection and input anti-static protection.
- Integrated PX4FMU & PX4IO: Pixhawk combines FMU controller with IO in one circuit board. Furthermore, it features extra IO, memory and other characteristics.  Integrated multi-threading and Lua task scripting and flight behavior programming environments empower further development.
- Compatibility: The hardware structure of Pixhack is the same as that of PIX and compatible with Ardupilot/ PX4 code.
- Cost-Effective 3DR Telemetry Modules: FT232RQ industrial FTDI chip supports for Android OTG connection. 3DR radio wireless telemetry kit 433MHz modules are perfect for UAV multi-rotors and FPV drones.

3DR Telemetry Firmware Upgrading:
http://v.youku.com/v_show/id_XNzAyNDk1NDEy.html

3DR / XBEE / XTEND Telemetry Drive:
32-Bit: http://www.ftdichip.com/Drivers/CDM/CDM%20v2.12.04%20WHQL%20Certified.zip

64-Bit: http://www.ftdichip.com/Drivers/CDM/CDM%20v2.12.04%20WHQL%20Certified.zip

Specifications:
Processors:
- 32-Bit 2M flash memory STM32F427 Cortex M4, processor unit with hardware. Main frequency: 168MHz, 256K RAM
- 32-Bit STM32F103 backup co-processor

Built-in Sensors:
- LGD0 3-axis 16-bit digital gyroscope
- LSM303D 3-axis 14-bit accelerometer / magnetometer
- MPU6000 6-axis accelerometer / magnetometer
- MS611 high precision barometer

Working Voltage & Operating Environment:
- Operating Temperature: -5℃ to 55℃
- Operating Voltage of PM Sensor: 2 to 6V
- Output Voltage of PM Sensor: 5.4V 3A
- PUM OUT inputs power supply voltage up to 9V (Support high-voltage steering gear. The original Pixhawk does not support power supply higher than 5.5V). 2-way power supply automatic redundancy (PM port and PWM OUT port). The PM port is preferentially powered. When a fault occurs, the device automatically switches to the PWM OUT port for power supply.

Data Interfaces:
- 14 PWM steering gears or ESC outputs
- 25 UART serial ports, of which one supports high power and two with hardware flow control
- 2 CAN I/O ports. One with internal 3.3V transmitting and receiving. One is on the expansion port.
- Compatible with Spektrum DSM/DSM2/DSM-X satellite receiver input: Allows use of the Specktrum remote control receiver.
- Compatible with Futaba input and output
- PPM SUM signal input
- RSSI (PWM or Voltage) input
- I2C & SPI serial ports
- Two 3.3V & one 6.6V voltage analog signal inputs
- Built-in microUSB port & external microUSB port for expansion
- Includes other board-cut micro-controllers and FMU stacks
- Integrated power supply system with redundant design and extended protection

Dimensions & Weights:
- Flight Controller Size: 81 x 47 x 16mm
- Weight of Flight Controller: 36g
- Weight of Telemetry w/ TTL Port: 12g
- Weight of Telemetry w/USB Port: 13g

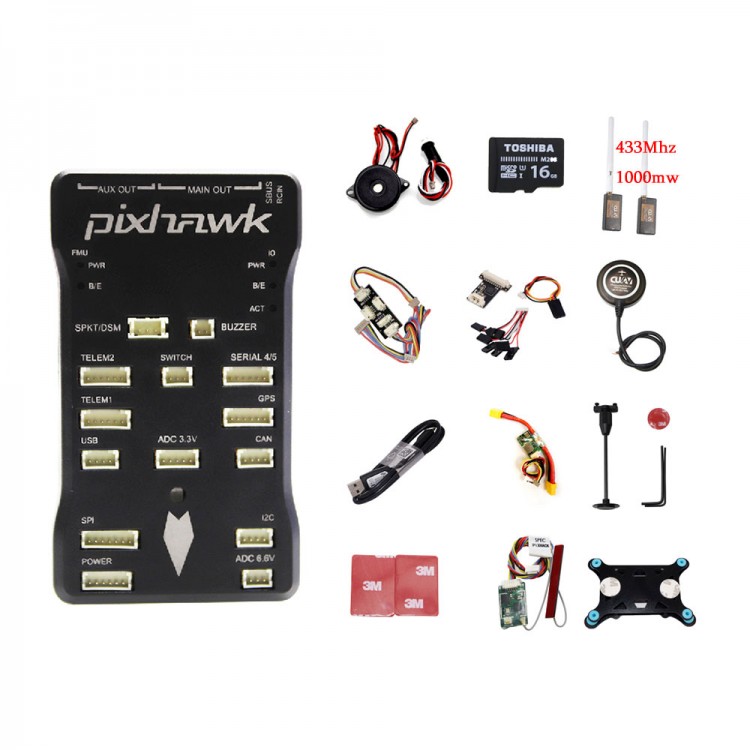

Package Included:
- 1 x Pixhawk Flight Controller Module
- 1 x Pair of 3M Adhesive Tapes
- 1 x Low-voltage Power Supply Module + Data Cable
- 1 x Buzzer + Unlock Switch
- 1 x 16G TF Card
- 1 x USB Data Cable
- 1 x PPM Board with Cables
- 1 x Pixhawk Expansion Board with Cable
- 1 x Wifi Module + Cable
- 1 x Shock Absorption Board
- 1 x M8N GPS
- 1 x GPS Bracket Kit
- 1 x CUAV Radio Telemetry w/ USB Port
- 1 x CUAV Radio Telemetry w/ TTL Port
- 2 x White Telemetry Antennas
- 1 x Flight Control Telemetry Cable
