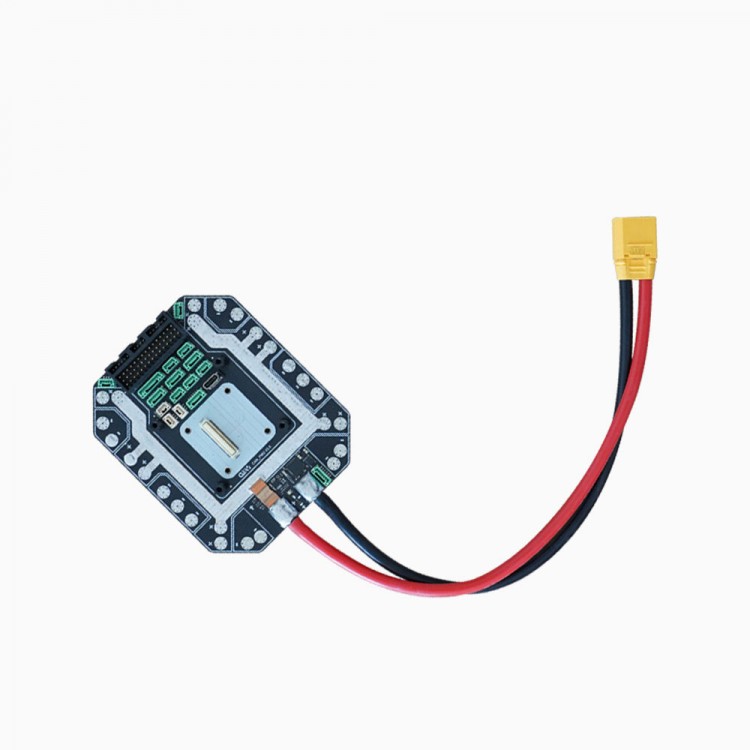

CUAV CAN PDB V2.5 Multifunctional Autopilot Baseboard + X7 Core Autopilot Flight Controller For Drone

CUAV CAN PDB V2.5 Multifunctional Autopilot Baseboard + X7 Core Autopilot Flight Controller For Drone

Description:
CAN PDB is a new integrated flight controller carrier board of CUAV, which combines the functions of the flight control carrier board and the power distribution board. When it is combined with CORE, it can provide automatic driving functions for UAVs/unmanned vehicles/unmanned ships and other equipment, and at the same time provide 10 redundant main power supplies, 5V/6A and 12V/4A power output.

Whether it is circuit design or hardware work materials, CAN PDB is the leader in flight controller carrier boards and power distribution boards. Thanks to the ultra-thick copper and thick tinned PCB, it can provide up to 180A of continuous working current for any device. The self-developed TTI algorithm achieves 0.1A current and 0.05V voltage measurement accuracy comparable to precision instruments.

Main Functions of the Product:
1. Support 10~62V ultra-wide voltage input
2. Continuous current: 180A
3. Accurately measure voltage and current, current accuracy within 110A is 0.1A, voltage accuracy is 0.05V
4. 14 servo channel output
5. Dual regulated output interface: It can provide up to 5V/6A, 12V/4A power output for peripherals
6. Ultra-thick copper and thick tin-plated PCB can effectively reduce the heating caused by the internal resistance of the circuit under high current
7. Power indicator LED, visually indicating Lipo voltage status
8. Ultra low pressure drop 10 main power output
9. Future upgrades support more functions such as high-precision power consumption statistics and transient power consumption push

Advantages:
- Excellent heat dissipation and current-carrying capacity: ultra-thick copper layer PCB brings excellent current-carrying capacity, window tinning reduces internal resistance and improves heat dissipation capacity
- 78W UBEC regulated output: Generally, the UBEC of the distribution board only has a regulated output of 1-2A, and the CAN PDB can provide a regulated output of up to 5V/6A and 12V/4A

Hardware Parameters:
- Processor: STM32F412 100Mhz 512K Flash 256K RAM
- Input voltage: 10-62V (3-15SLipo)
- Accurate measurement current range: 0-110A
- Maximum current range: 0-180A
- 5V regulated output: maximum 6A, stable 5A
- 12V regulated output: Maximum 4A, stable 3.5A
- Number of servo channels: 14
- Remote control receiver signal: support PPM/SBUS/DSM signal input
- Support CORE: V5+/X7/X7 PRO CORE
- Model: Support fixed wing/3-8 rotor/helicopter/VTOL vertical take-off and landing/unmanned vehicle/unmanned boat, etc.
- Firmware: For ArduPilot firmware 4.0.0 and above Px4, native firmware 1.11.0 and above
- Working temperature: -20 to 100℃
- Product size: 12cm(length) x 10cm(width)x 1.2cm(height)
- Weight: 163g (including wire weight)
- Wire length: 30cm (excluding terminal)

Main Interface:
- USB interface: 1 (type-c)
- UART serial port: 5 (including gps/uart4/telem1/telem2/debug)
- CAN standard bus: 2
- I2C bus: 3
- SBUS/DSM IN: 1 (DuPont head)
- PPM_IN: 1
- PWM output: 14 (DuPont head)
- ADC3.3: 1
- ADC6.6: 1
- SBUS OUT:
- RSSI: 3.3V analog voltage (this interface is invalid when using X7/X7 pro core)
- DSU7:1

Package Included (For CAN PDB X7 Core):
- 1 x CAN PDB V2.5
- 1 x X7 Core
- 1 x 16G SD Card
- 2 x I2C/CAN Cables
- 1 x ADC3.3 Cable
- 1 x Pw-Link Module
- 1 x USB-Type C cable
- 1 x CAN Expansion Board
- 1 x RSSI Cable (x7 series)
- 2 x Power Cords 12/5V Output
- 1 x Dupont Cable
- 1 x PPM Signal Cable
- 6 x Mushroom Head Hexagon Sockets M2*6 with Gaskets
- 8 x M3*8 Screws
- 1 x Acrylic Isolation Board
- 4 x M3*12 Nylon Column Male Head
- 4 x M3*12 Nylon Column Female Head

Note:
- Battery is not included.
