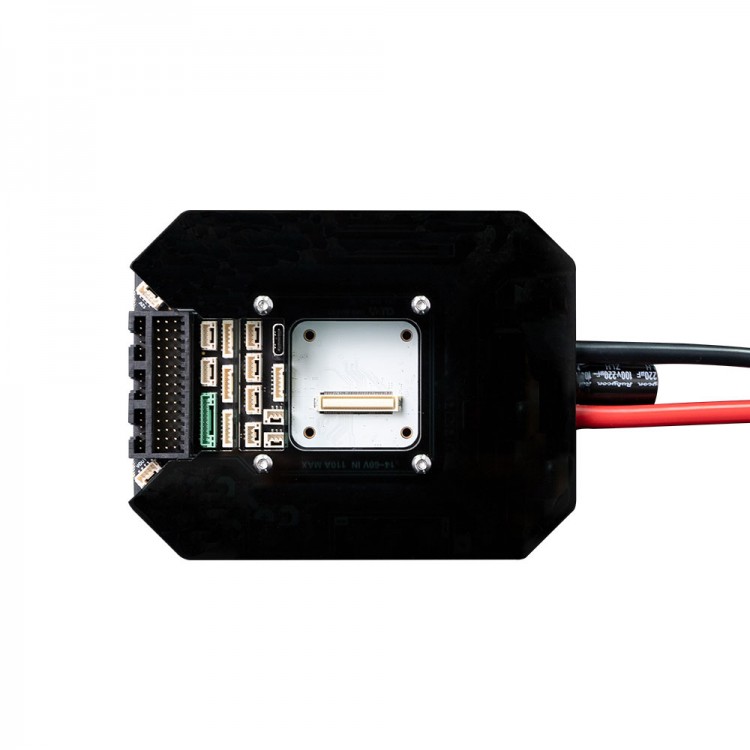

CUAV CAN PDB V2.5 Multifunctional Baseboard Flight Controller Carrier Board and X7 Pro Core Module

CUAV CAN PDB V2.5 Multifunctional Baseboard Flight Controller Carrier Board and X7 Pro Core Module

Description:
CAN PDB is a multi-functional baseboard of flight controller CORE, which provides abundant interfaces, integrates the functions of power supply module and power distribution board, supports voltage input of 10~60V, and provides continuous working current up to 110A. It adopts self-developed ITT algorithm and has high accuracy power detection of 0.1A and 0.05V. It has 10-way power output welding points, and provides a 5V/6A and a 12V/4A stabilized output to provide power for external device. Furthermore, it also supports CORE module of flight controller.

V2.5 Update:
1. Adding PPM interface enriches the support of remote control receiver protocol;
2. The power output is upgraded from screw fixing to welding process, which reduces the risk of loose screws caused by heating and vibration caused by poor contact.

Hardware Parameters:
- Processor: STM32F412 100Mhz 512K Flash 256K RAM
- Input Voltage: 10-62V (3-15S Lipo)
- Accurate measurement current range: 0-110A
- Maximum current range: 0-180A
- 5V regulated output: 6A maximum; stable 5A
- 12V regulated output: 4A maximum; stable 3.5A
- Number of servo channels: 14
- Remote control receiver signal: support PPM/SBUUS/DSM signal input
- Support CORE: V5+/X7+/X7+PRO CORE
- Compatible models: fixed-wing aeroplane/3-8 axis multi-copter/helicopter/VTOL/unmanned vehicles/unmanned ship
- Firmware: for ArduPilot firmware 4.0.0 and above; PX4 native firmware version 1.11.0 and above
- Operating temperature: -20 to +100°C
- Product Size: 12 x 10 x 1.2cm/4.7 x 3.9 x 0.5" (LxWxH)
- Weight: 163g/0.4lb (including cable weight)
- Cable length: 30cm/11.8" (without the sizes of terminals)

Main Interfaces:
- USB port: 1 (type-c)
- UART serial port: 5 (including GPS/UART4/Telem1/Telem2/Debug)
- CAN standard bus: 2
- I2C bus: 3
- SBUS/DSM IN: 1 (DuPont head)
- PPM_IN: 1
- PWM output: 14 (DuPont head)
- ADC3.3: 1
- ADC6.6: 1
- SBUS OUT:1 (does not work when using X 7/X7procore)
- RSSI: 3.3V analog voltage
- DSU7: 1

Package Included:
- 1 x CAN PDB V2.5
- 1 x X7 Pro Core
- 1 x 16G memory card
- 2 x I2C/CAN cables
- 1 x ADC3.3 cable
- 1 x Pw-Link module
- 1 x USB-Type C cable
- 1 x CAN expansion board
- 1 x RSSI cable (X7 Series)
- 2 x Power cords 12/5V output
- 1 x DuPont cable
- 1 x PPM signal cable
- 6 x Screws M2*6 with spacers
- 8 x M3*8 screws
- 1 x Acrylic isolation plate
- 4 x M3*12 nylon columns male
- 4 x M3*12 nylon columns female
