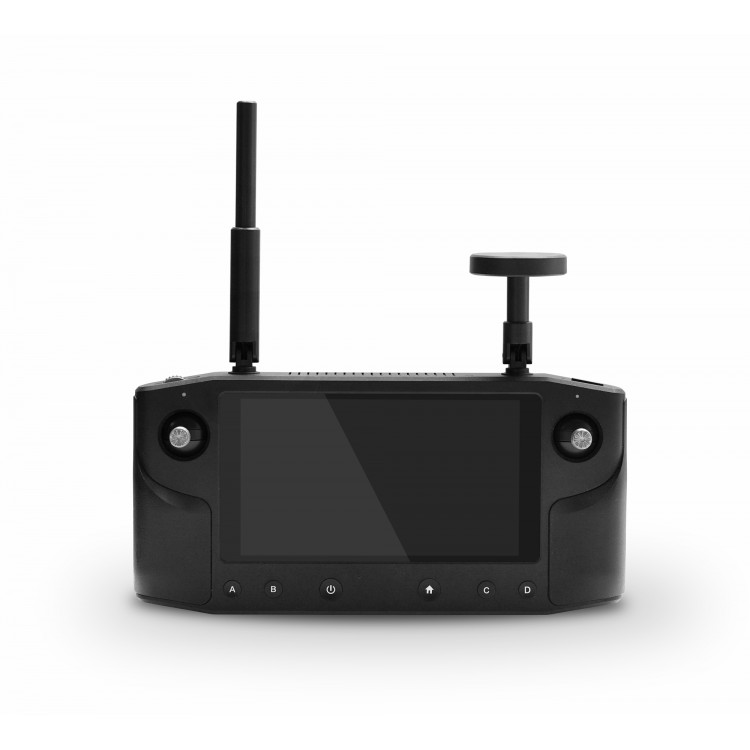

CUAV Drone Remote Controller Handheld FPV Ground Station 20KM Image Data Transmission 1080P w/ Display

CUAV Drone Remote Controller Handheld FPV Ground Station 20KM Image Data Transmission 1080P w/ Display

Description:
It is a drone remote control that integrates screen, image transmission, digital transmission, and remote control receiver. Equipped with 1080P and 600 nits high-brightness screen, it ensures high visibility in outdoor environments. 20KM image transmission and digital transmission meet the requirements of long-distance operation.

Features:
- 20KM Image Transmission: Signal transmission distance is up to 20KM, the delay is about 110-150ms, and the minimum delay is 70ms.
- Digital 1080P image and data transmission in one.
- Support for flight controller PX4 and Ardupilot.
- Powerful brightness 600 nit.
- Lower power consumption. It can be used while charging.
- Dual-channel video input can be switched via the controller. It supports video in 720P 30fps, and 1080P 30fps/60fps.
- For Android System: Built-in ground station for QGroundControll supports for Android operating system. Encapsulated ground station for QGroundControll, which is optimized in depth, enables application immediately after power-on, which eliminates the problems of non-smooth operation and complex information interference when using ordinary mobile devices, making work more efficient.
- Base Station Mode Enabling Cooperative Operation: It provides data forwarding function. Through WiFi wireless network, real-time video and flight data can be shared to a PC or mobile phone, which can realize multi-screen viewing and collaborative control.
- Rich Ports: High-speed USB OTG port supports for HOST and DEVICE modes. It can be used to connect to a PC or expand USB mobile devices, such as 4G network card.
- Compatible Flight Controllers: It fits for flight control running APM / PX4 firmware. Adopting communication protocol for MAVLINK, it supports for CUAV / Pixhawk and other flight controllers running APM / PX4 firmware.
- Open Source Code For QGC: The source code is accessible and can be customized. You can do secondary development to meet your needs.

Performance Parameters:
- Processor For Surge S1: 4AP Cortex A53@2.2GHz; 4AP Cortex A53@1.4GHz; 4 core  GPU for Mali-T860; A7 + DSP SDR
- System Version: For Android 7.0
- Image Transmission Distance: For FCC 20km CE / SRRC 12km
- Video Transmission Delay: 70ms minimum (excluding delay caused by input source)
- Image Transmission: 720p @ 30fps; 1080p @ 30 / 60fps
- Transmission frequency: 2.4GHz ISM
- Receiving Sensitivity: -99dBm @ 20MHz BW
- Interference Recovery Time: <1s
- Power Consumption: The average does not exceed 4W (* Only when image transmission is working, with medium-brightness screen, WiFi off and GPS off.)
- Storage: For LPDDR3, 2GB; For eMMC 5.0, 8GB
- Size and Weight for Sky End: 78.5 x 30 x 15mm, 48g (Antennas are not accounted)
- Size and Weight for Remote Control: 217 x 106.5 x 31mm, 516g

Appearance & Functions of Remote Control:
- Shell: Plastic
- Screen: 600nit peak brightness, 5.46-inch, 1080P, 16M color types
- Audio: Built-in loud speaker x 1
- Built-in Microphone: x 2
- Button Backlight: Yes
- Supported Communication: Bluetooth/WiFi/GPS (WiFi only supports 5G)
- Indicator: Top 3-Color Light x 2 (Left and right)
- Interfaces: Micro USB x 1, For TF Card x 1 (Support up to 64G)
- Antennas: Directional Antenna (4.5dBi) x 1, Omnidirectional Antenna (2dBi) x 1; All antennas are removable
- Built-in Antennas: WiFi antenna and GPS antenna
- External Port: GPS antenna port
- Charging: Micro USB port, 5V 2A charging current

Appearance & Ports of Image Transmission Sky End:
- Shell: Aviation grade aluminum alloy
- Ports: 2 x Micro HDMI, 1 x 2 pin (POWER), 1 x 3 pin (UART), 1 x 4 pin(S.bus), 1 x Micro USB port, 1 x button port, 2 x Antenna ports for MMCX
- Micro HDMI: Video signal input from external camera
- Micro USB: Charging, debugging and upgrading, supporting OTG mode
- Pair/Reset Button: Pair frequency and reset status
- Antenna Port For MMCX: For image transmission signal and ground station communication
- Indicator: Indicates frequency paring and image transmission state
- Output: Support for SBUS

Package Included:
For Sky End:
- 1 x Image Transmission For TeleLink
- 2 x Antennas
- 1 x HDMI Cable
- 1 x S.bus Cable 4-Pin
- 1 x Power Cord 2-Pin
- 1 x Data Transmission Cable 3-Pin

For Remote Control End:
- 1 x Remote Controller For TeleLink
- 1 x Omnidirectional Antenna
- 1 x Directional Antenna
- 2 x Joysticks
- 1 x Micro USB Cable

For Packaging:
- 1 x Carry Bag For Remote Controller

Note: Other items are not included in the package.
