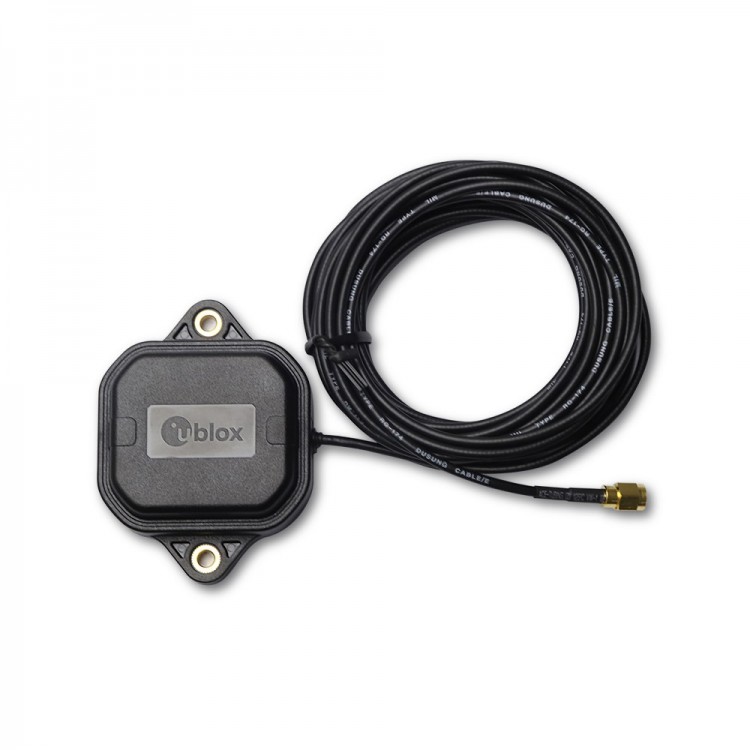

CUAV For U-blox ANN-MB RTK GNSS Antenna C-RTK 9P Extension Antenna (SMA Female Connector 5M)
1.Description:
For u-blox ANN-MB multi-band (L1, L2/E5b/B2I) active GNSS antennas are designed to reduce time to market for the next generation of high precision GNSS applications, which require highly accurate location information. The compact design, excellent price to performance ratio, and versatile mounting and connector choices provide customers with fast, easy, and reliable multi-band antenna solutions. The ANN-MB antenna is a perfect match to the latest platform for u-blox F9, including the ZED-F9P module, thus providing customers with a valuable antenna solution to minimize design-in efforts.

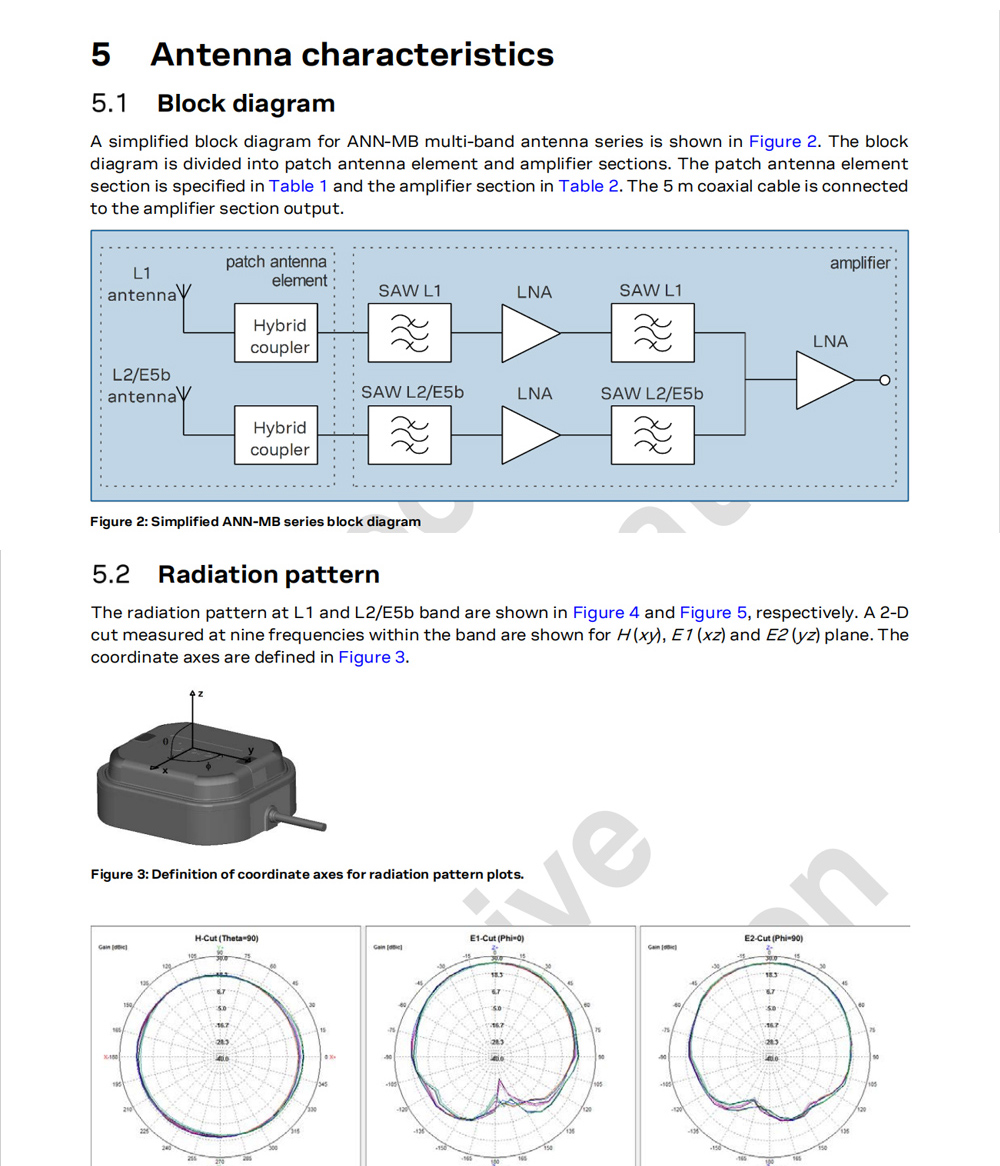

The ANN-MB series includes a high-performance multi-band RHCP dual-feed patch antenna element, a built-in high-gain LNA with SAW pre-filtering, and an antenna cable with three connector options (SMA, SMB, MCX).
Package Included:
- 1 x RTK GNSS Antenna

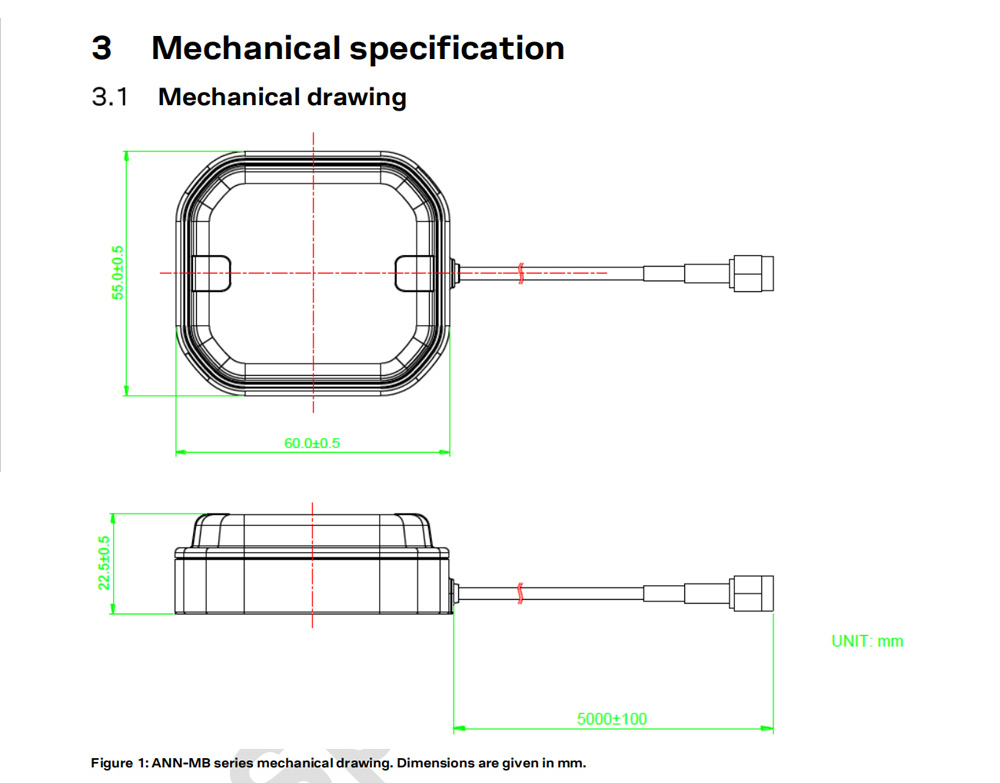

3.2. Mechanical Data:
- Weight (including cable): 167g
- Size: 60 x 55 x 22.5mm

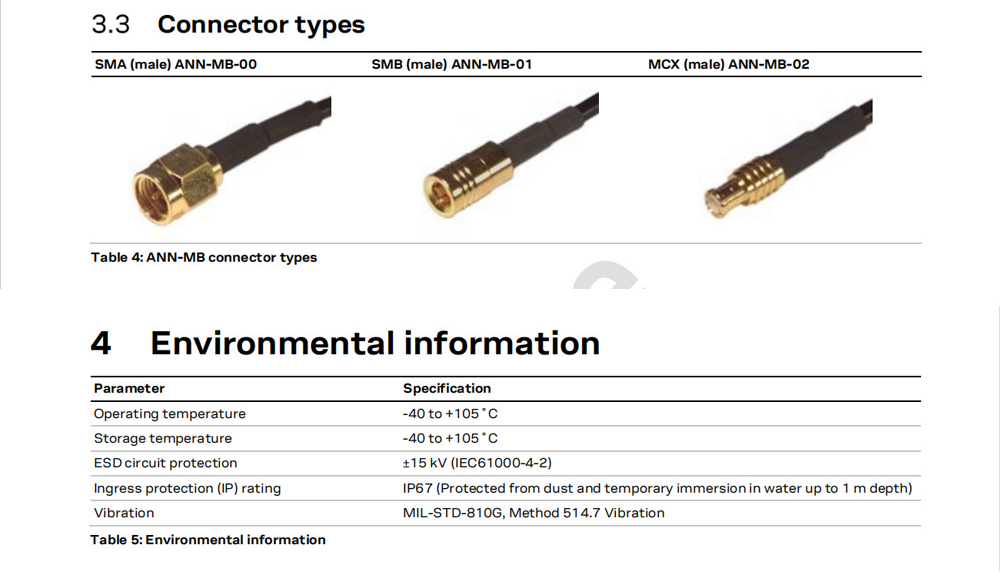

- Connector Options: SMA, SMB, MCX
- Cable Type, Length: RG174, 5M
- Mounting: Magnetic base, fixed installation option (screw mount)
- Housing Color: Black
