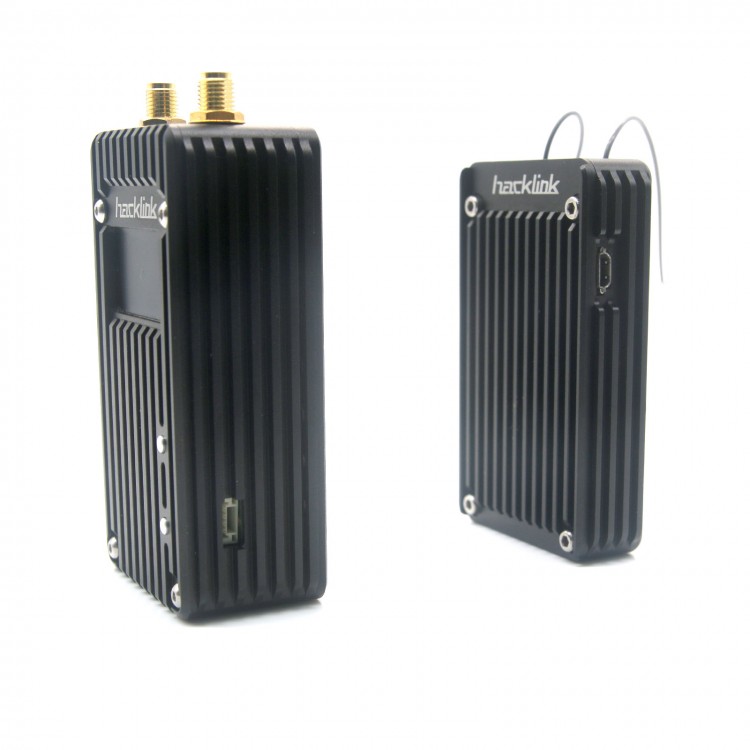

CUAV HACK LINK Digital Data Link System for PIXHACK Flight Controller FPV UAV Drone Quadcopter

CUAV HACK LINK Digital Data Link System for PIXHACK Flight Controller FPV UAV Drone Quadcopter


Phone APP download: Click here
Manual : Click here

Specifications:
- Support HDMI video input (720-1080P)
- Real time 720P HD video and mavlink flying data
- Using APP to display video and flying control
- Dual antenna MINO technology, dual channel 500mW RF unit
- Distance up to 2-3km

Ground station:
- Built in OLED that can display flying data and quantity of electricity
- HDMI 720P vidoe output, can connect to monitor and glasses
- MAVLINK output, can connect to CUAV antenna

Description:
- HACK LINK is the HD digitallink system, supports MAVLINK data.
- This is for PIXHACK
- HACK LINK supports 720P HDMI real time video transmission and mavlink data, also supports PPM remote control data forwarding. You can see and control the video by phone or tablet PC.
- IMX6 CPU for ground/air station, and running Linux system
- Not support SBUS input, only supports PPM input
- Not support to connect the phone by USB
- RC IN without 5V output, if connecting PPM receiver,needs independent power

Hardware parameter:
Air station:
- Communication ditance: 1-3km
- Effective isotropic radiated power (EIRP):500mW*2
- Receiving sensitivity (1%PER): -95dBm-+2dBm
- Antenna gain: 3.0-+0.7dBi@2450MHz
- Working frequency: 2.4Ghz ISM
- Antenna  connector: UFL
- Working voltage: 5V +-0.4V
- Max. current:1600mA
- Processor frequency: IMX6 1GHz
- Memroy: DDR3 512MB
- System disk capacity: 8G
- Delay: 100*200ms
- Working temperature: -5~60 deg C
- Size: 75*45*45mm
- Weight: 79g
- Video input format: HDMI 720/1080P
- Support hardware: Camera with HDMI output, GOPRO3/4/Xiaoyi,etc

Ground station
- Communication ditance: 1-3km
- Effective isotropic radiated power (EIRP):500mW*2
- Receiving sensitivity (1%PER): -95dBm-+2dBm
- Antenna gain: 5.0-+0.7dBi@2450MHz
- Working frequency: 2.4Ghz ISM
- Antenna  connector: SMA
- Working voltage: 5V +-0.2V
- Max. current:1700mA
- Processor frequency: IMX6 1GHz
- Memroy: DDR3 512MB
- System disk capacity: 8G
- Battery capacity: 3100mAh@3.6V
- OLED resolution: White @128*64
- Working temperature: -10~50 deg C
- Size: 80*45*25mm
- Weight:150g
- Video input format: HDMI 720p

Package list:
- 1 x HACK-LINK Ground station
- 1 x HACK-LINK air station
- 2 x Antenna
- 2 x Sipex to SMA connecting cable
- 1 x Micro HDMI cable
- 1 x USB data cable
- 1 x HDMI interface cable
- 1 x Signal cable
- 1 x Power cable
- 1 x Power supply module
- 1 x PIXHACK/PIXHAWK USB cable
