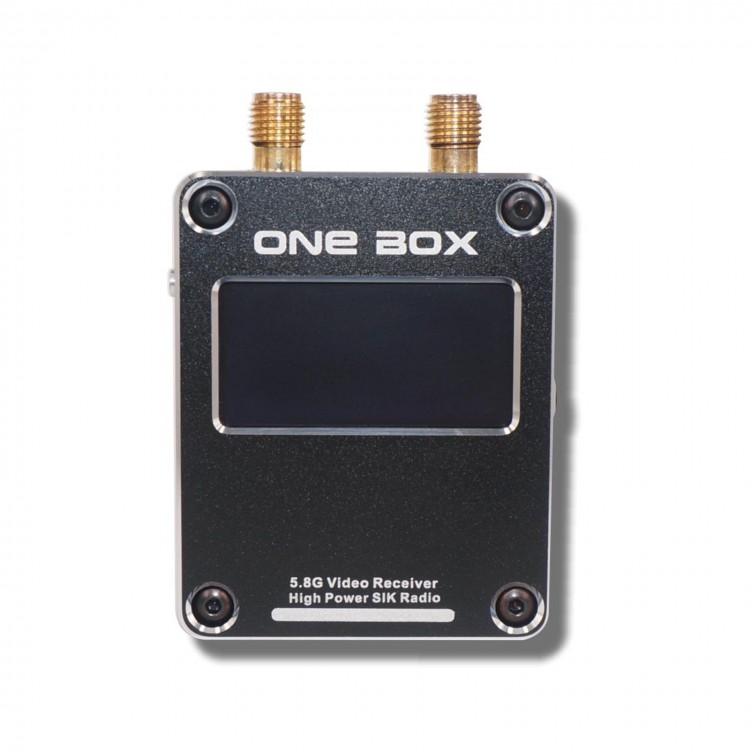

Product Descriptuon:
- ONE BOX is composed of CUAV autonomous flight controller developed for Mavlink image transmission digital integrated receiver, built-in 500MW digital SIK (915Mhz/433Mhz).
- Built-in 5.8G 42 channel high sensitivity receiver, built-in OLED 128*64 screen and microprocessor, can display the flight condition and the video mode, through the MICRO USB interface to access the mobile phone or computer.
- ONE BOX is composed of CUAV autonomous flight controller developed for Mavlink image transmission digital integrated receiver, built-in 500MW SIK digital 5.8G.
- Built-in 42 channel high sensitivity receiver, built-in OLED 128*64 screen and microprocessor, can display the flight condition and the video state, through the MICRO interface to access USB mobile phone or computer can be obtained at the same time real time flight of UAV video and Mavlink data, and digital link, it has a lot of advantages.
- Much easier:You can use the original data and video transmitter, using a OTG USB line can be connected to the phone and computer.
More convenient: The volume is only 49MM*39MM size (3 inches for an ordinary cell phone)
Technical specifications:  Hardware specification

Product Specification:
- SIK Data Transmission Frequency: 915Mhz
- SIK Data Transmitting power: 500mw
- Data Transmitting Communication Distance: 1-2km *No shelter and no interference environment
- Video receiver frequency: 5.8Ghz
- Video Receiver Tunnel : 42 channel
- Video receiver Distance
- Video frequency and condition: standard wire gain（Data Transmission): 3dBi
- Standard wire gain （5.8G）:5dBi
- Video input and output  standard:Analog  AV
- Video resolution: 640*480
- Working Condition and physical reference: Battery capacity and working hour
- Outside Connection External 3.6v 2200mah   Working hours：3-5 hours
- Antenna Interface: SMA External screw thread
- Working Voltage:  5V +-0.25
- Charge Voltage:  5V +-0.25
- Working Current: max 5V 700ma
- OLED Display resolution: White 128x64
- Working Tempurature:  -10~50°
- Size: 49mm X 39mm X 17.5mm( is not included)

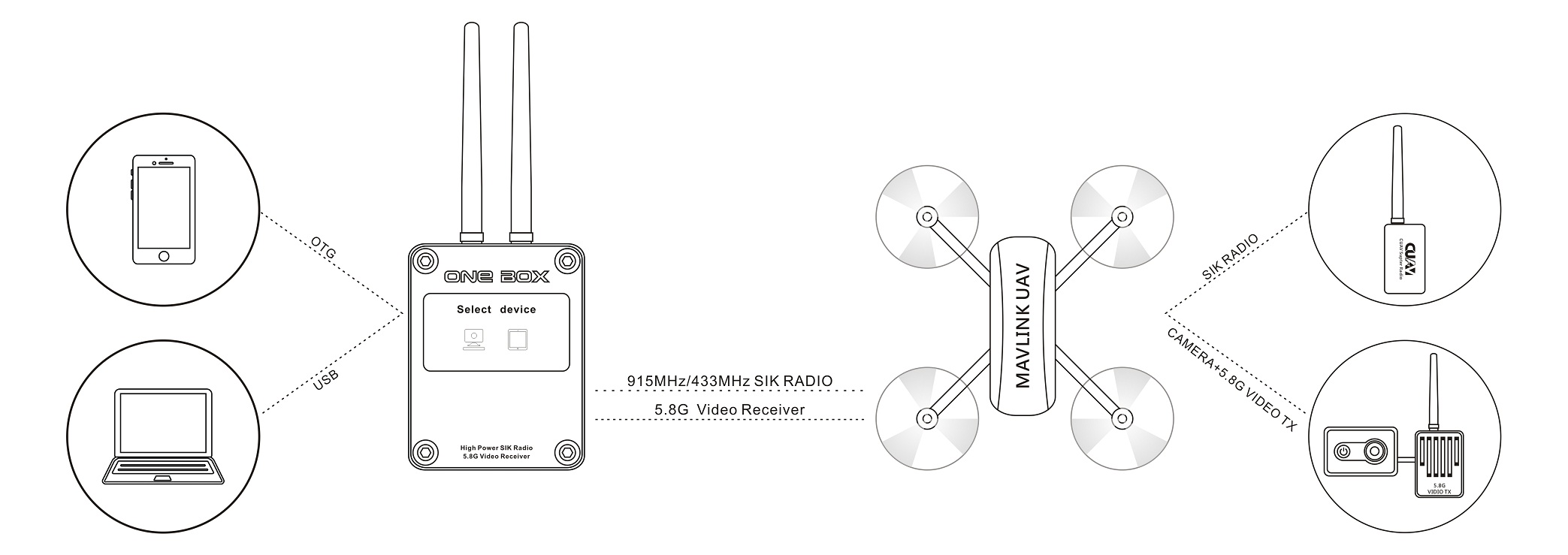

System communication frame diagram

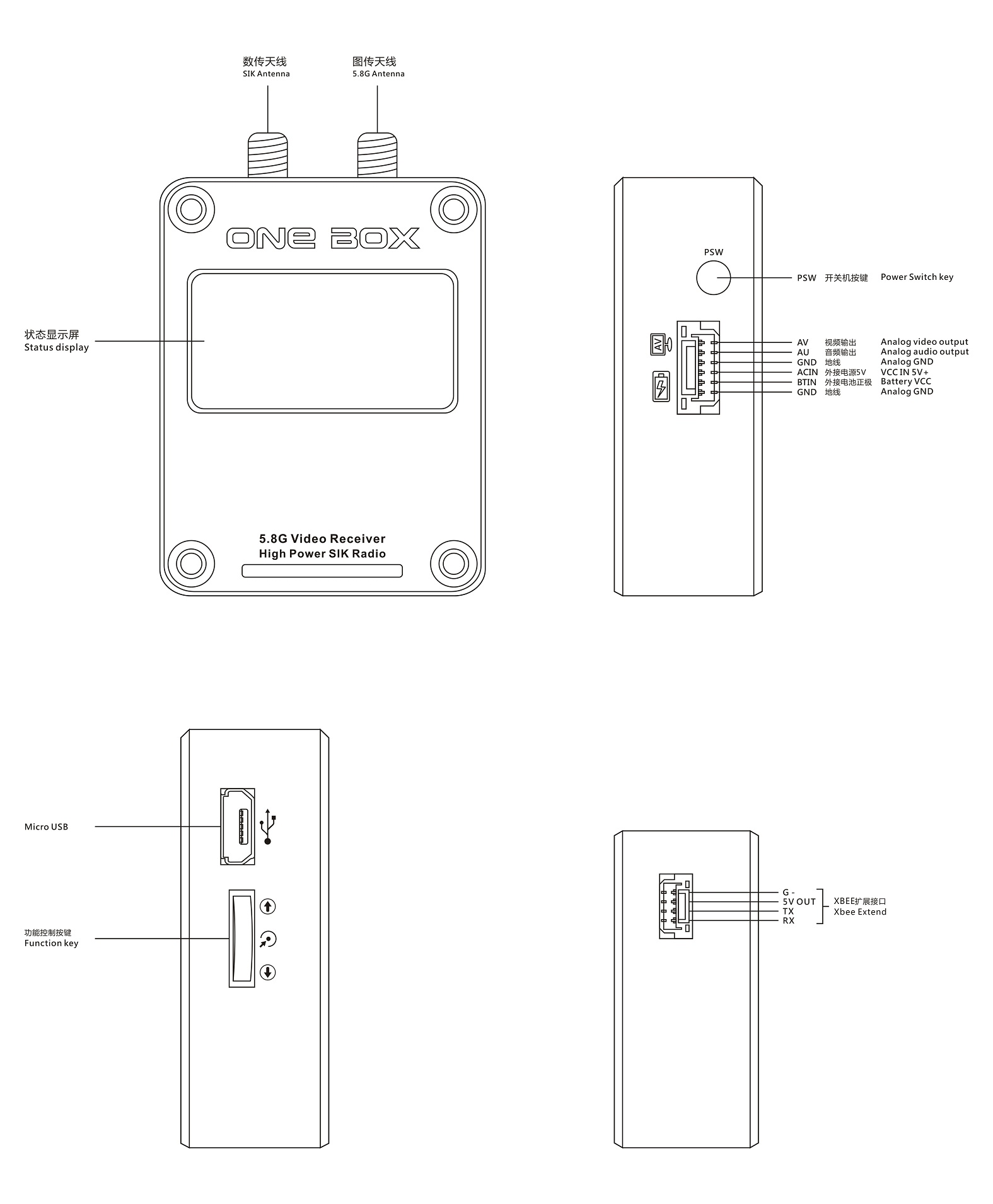

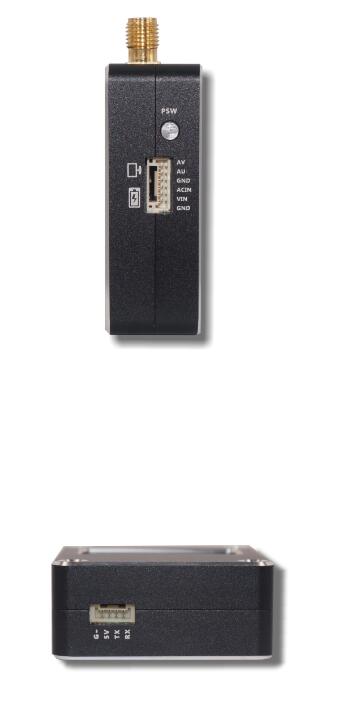

Interface function identifier:

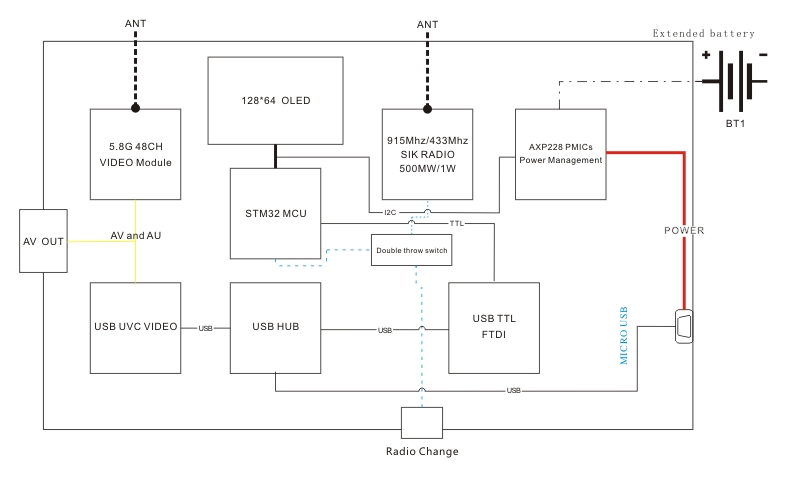

Hardware frame diagram:

Package List:
- 1  X   ONE BOX Integrated  Receiver
- 1  X   AV Wire
- 1  X   OTG Wire
- 1  X   915M Wire
- 1  X   5.8G Wire
