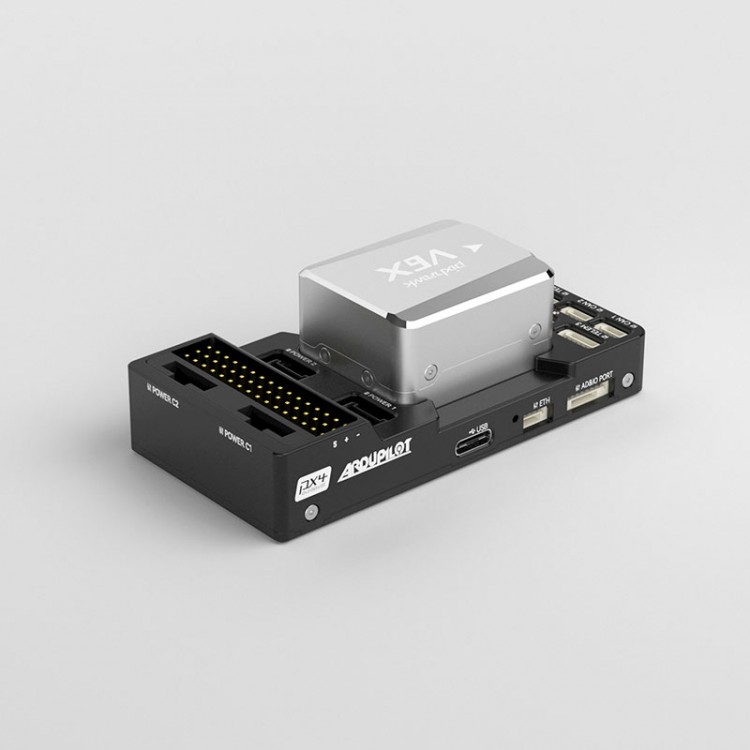

CUAV New Pixhawk V6X with NEO 3 PRO GPS High Performance Flight Controller Customized Carrier Board

CUAV New Pixhawk V6X with NEO 3 PRO GPS High Performance Flight Controller Customized Carrier Board

Description:

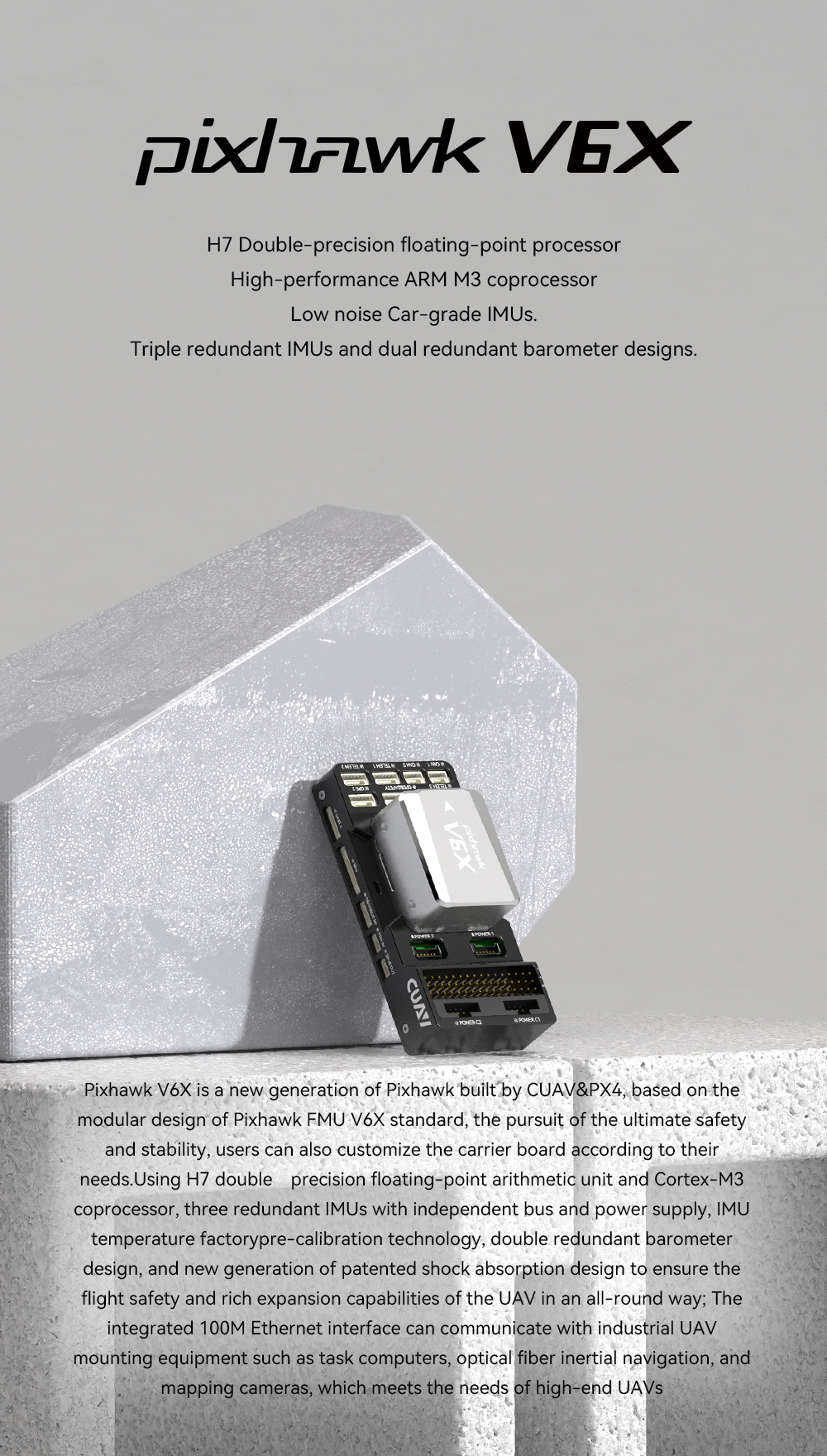

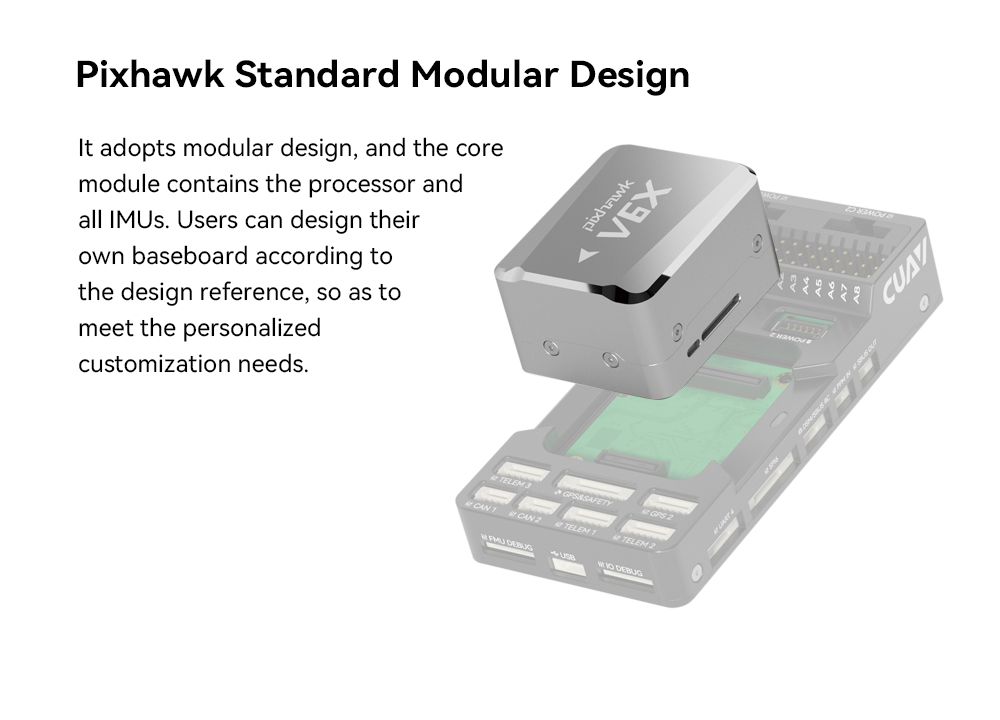

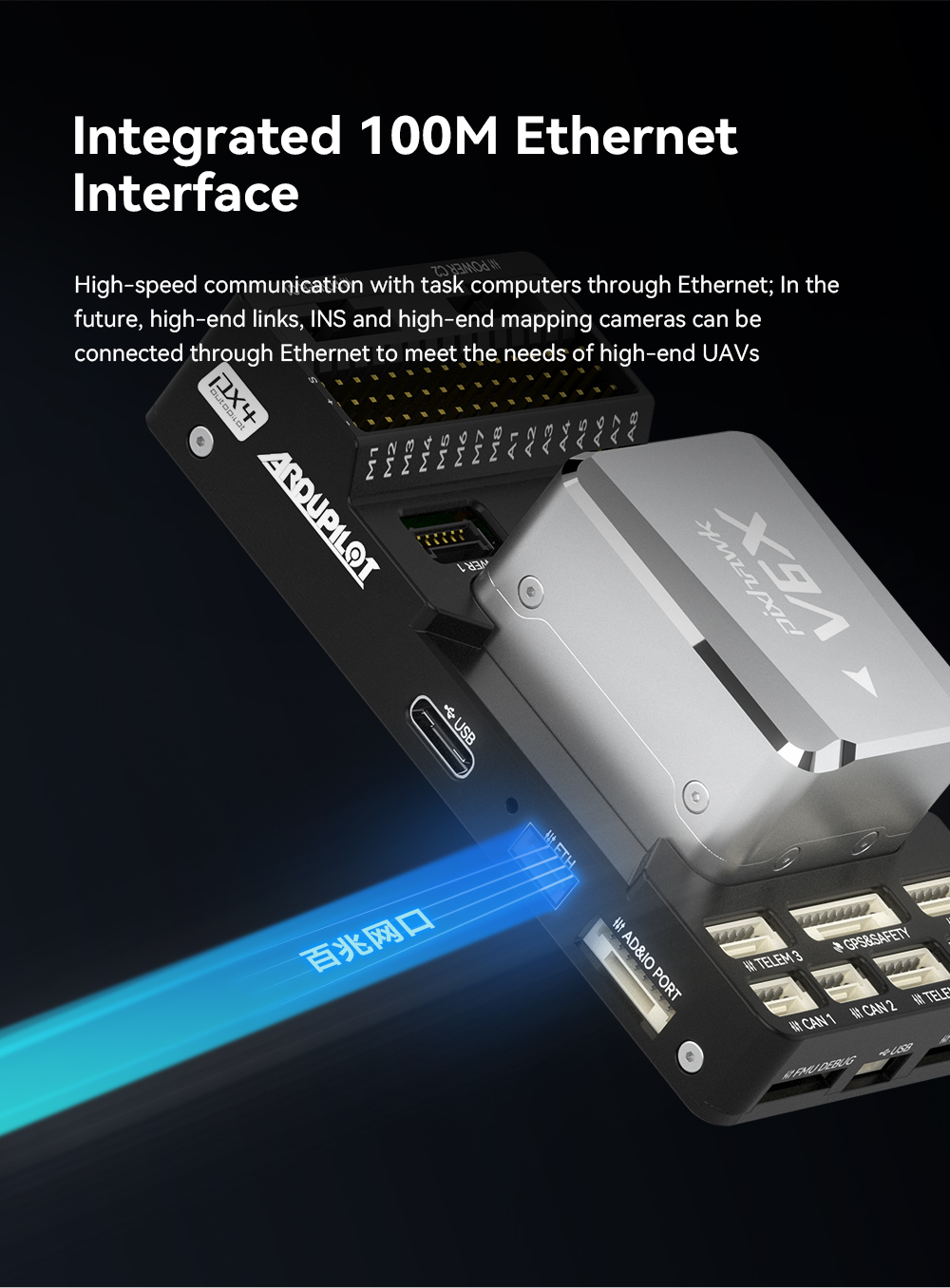

- Pixhawk V6X is a new generation of Pixhawk built by CUAV&PX4, based on the modular design of Pixhawk FMU V6X standard, the pursuit of the ultimate safety and stability, users can also customize the carrier board according to their needs. Using H7 double-precision floating-point arithmetic unit and Cortex-M3 coprocessor, three redundant IMUs with independent bus and power supply, IMU temperature factory pre-calibration technology, double redundant barometer design, and new generation of patented shock absorption design to ensure the flight safety and rich expansion capabilities of the UAV in an all-round way; The integrated 100M Ethernet interface can communicate with industrial UAV mounting equipment such as task computers, optical fiber inertial navigation, and mapping cameras, which meets the needs of high-end UAVs.

Features:

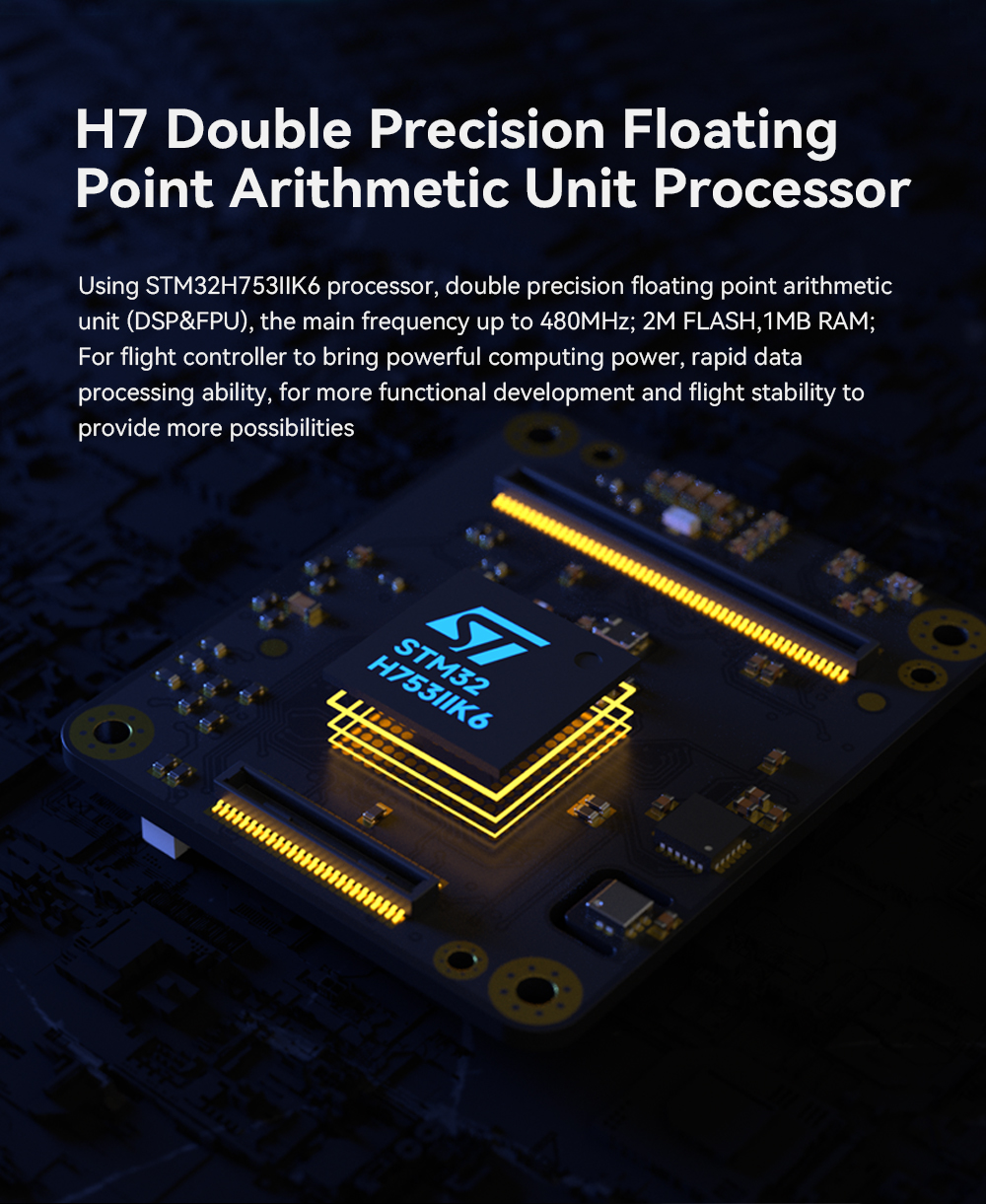

- H7 Double-precision floating-point processor
- High-performance ARM M3 coprocessor
- Low noise Car-grade IMUs.

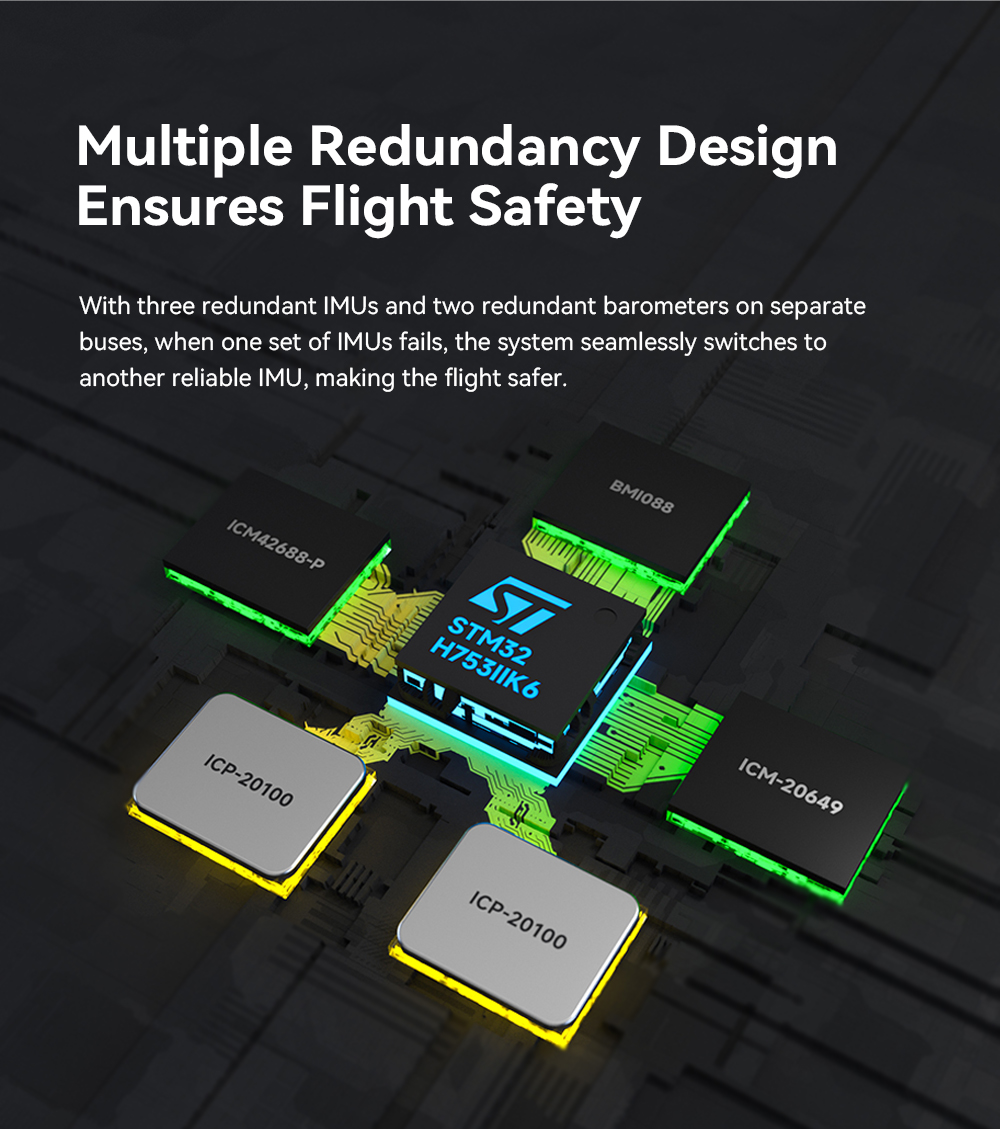

- Triple redundant IMUs and dual redundant barometer designs.

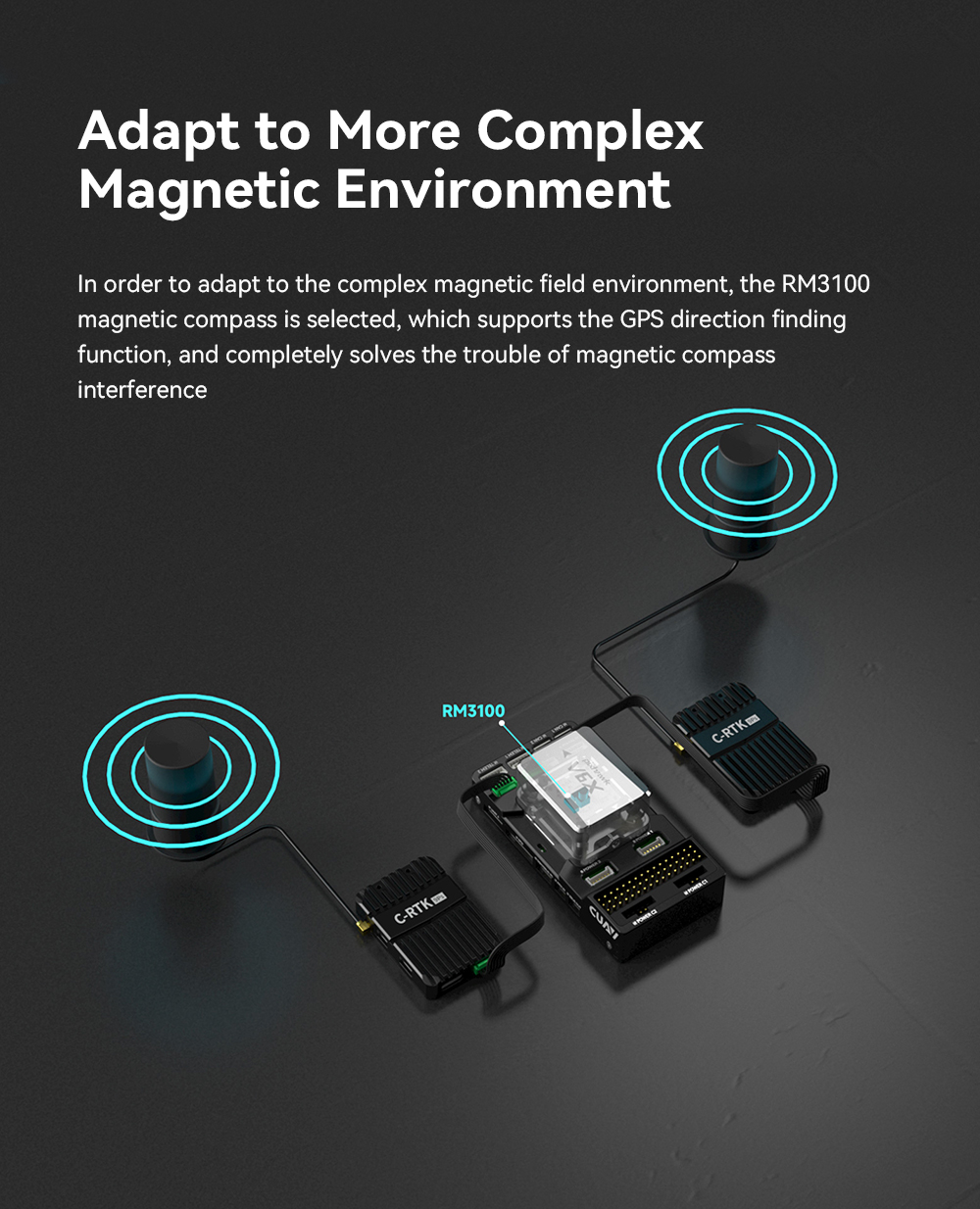

- Car-grade RM3100 magnetic compass

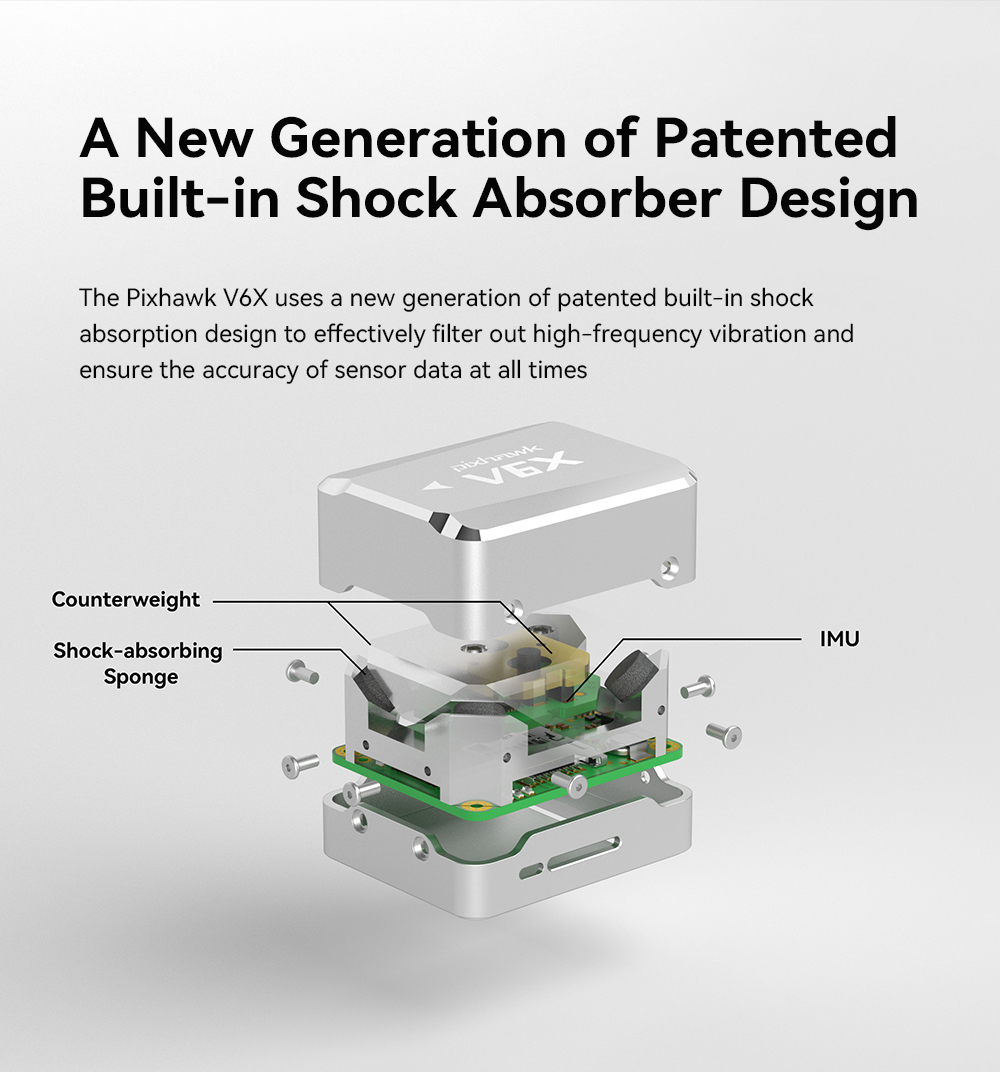

- New built-in shock absorption design

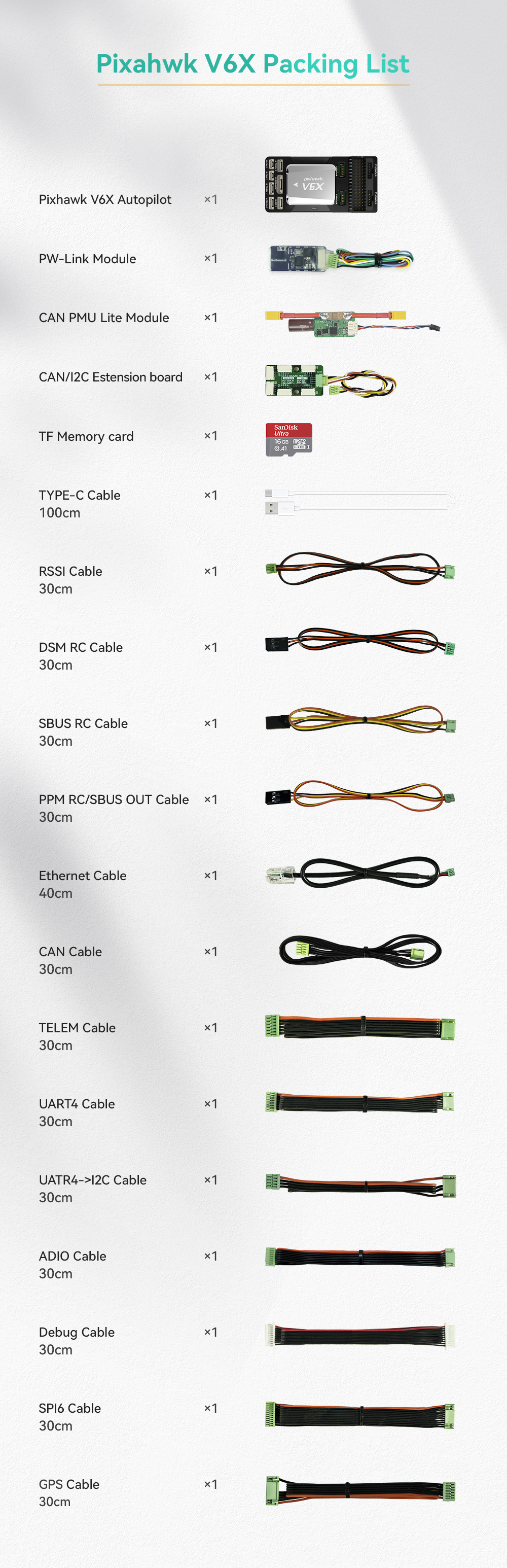

Package Included:
- 1 x Pixhawk V6X Autopilot
- 1 x PW-Link Module
- 1 x CAN PMU Lite Module
- 1 x CAN/I2C Estension Board
- 1 x TF Memory Card
- 1 x Type-C Cable (100cm)
- 1 x RSSI Cable (30cm)
- 1 x DSM RC Cable (30cm)
- 1 x SBUS RC Cable (30cm)
- 1 x PPM RC/SBUS OUT Cable (30cm)
- 1 x Ethernet Cable (40cm)
- 1 x CAN Cable (30cm, 8P)
- 1 x TELEM Cable (30cm, 6P)
- 1 x UART4 Cable (30cm, 7P)
- 1 x UATR4->I2C Cable (30cm, 6P)
- 1 x ADIO Cable (30cm, 8P)
- 1 x Debug Cable (30cm, 10P)
- 1 x SPI6 Cable (30cm, 11P)
- 1 x GPS Cable (30cm)
