Cuav Pixhack 1.9.1 Flight Control Combo for FPV Drone Quad Multicopter Golden Shell

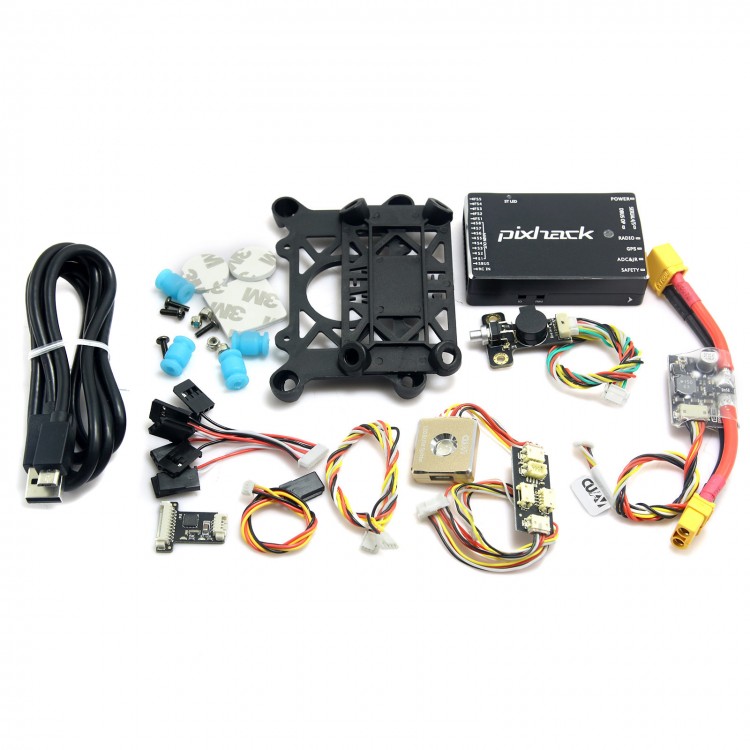

PIXHACK standard combo (golden shell)
- PIXHACK flight control x 1
- LED&USB expansion board x 1
- 8CH PPM Decoder x 1
- Voltage current sensor (no welded) x 1
- 8G memory card x 1
- Buzzer+unlock switch expansion board x 1
- Standard telemetry interface cable x 1
Processor:
- 32 bits 2M flash memory Cortex M4 STM32F427, with hardware floating-point processing unit, main frequency: 168MHZ, 256K RAM
- 32 bit STM32F103 backup co processor
Built in sensor:
Pixhack adopts IMU seperation design, built in universal shock abosorption
- L3G20 3 axis digital 16bits gyroscope
- LSM303D 3 axis 14bits acceleration/ magnetometer
- MS5611 high precision barometer
Working voltage and environment demand
- Working temp: -5°C to +55°C
- PM sensor: working voltage 2-6S
- PM sensor output voltage: 5.4V 3A
- PWM OUT output voltage: max 9V (support high voltage servo, original Pixhawk do not support power supply higher than 5.5V)
- Two channels of extra power supply (PM and PWM OUT port), PM port is superior to power supply, once it has errors, it will automatically switch to PWM OUT port for power supplying
Size:
- Main control size: 68mmX44mmX15MM
- Weight: 68g
Data interface:
- 5PCS UART one compatible high voltage, two with hardware flow control
- 1PCS CAN
- DSM/ DSM2/ DSM-X satellite receiver compatible with input/
- Futaba SBUS compatible with input and output
- PPM signal input
- RSSI (PWM or voltage) input
- I2C agreement device expansion
- SPI interface is reserved
- 3.3 and 6.6V ADC input
- External MICRO USB interface
- 13PCS PWM/ servo output
- Buzzer and unlock button stateLED interface
External device
- Support firmware multirotor helicopter car boat firmware
- Support receiver type: S-Bus, DSM2, PPM
Note: if it's normal PWM receiver, it needs PPM encoder
- Recommended battery type: 2S-6S lipo battery
- System configuration demand: Windows XP SP3 / 7 /8 (32 olr 64 bits)
- Support connect external CUAV product
- MINIM OSD, 3DR telemetry, XTEND telemetry, RTB BOX telemetry, MAAT tracking antenna, optic flow sensor
Pixhack has the same hardware structure with PIX, fully compatible with pixhawk code
