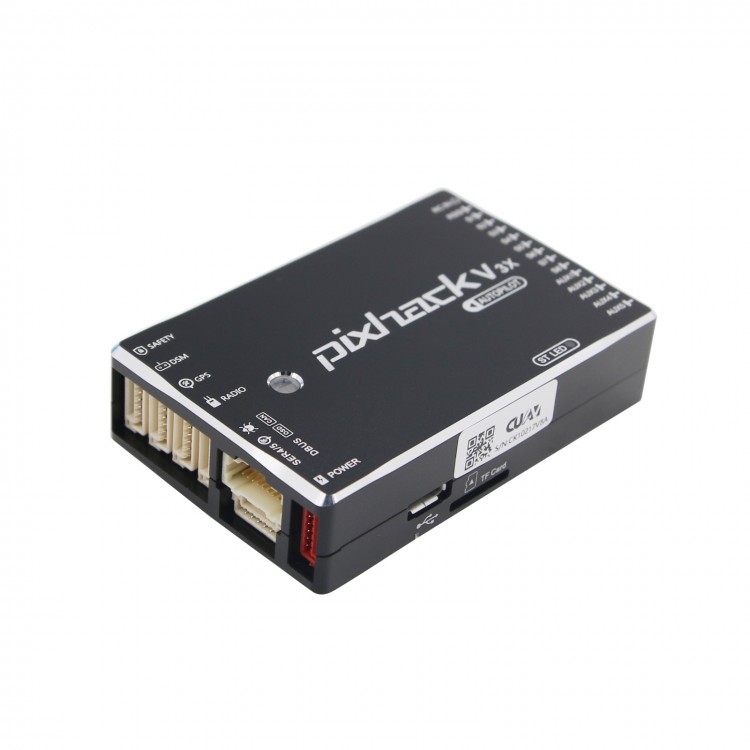

CUAV Pixhack V3X Flight Controller PIX Open Source for FPV Drone Quadcopter Helicopter
Ground station : Click here
Flight controller drive: Click here
Pixhack information: Click here
APM/PIX information: Click here
Notice: The booking period is about 10 days.
Specifications:
- Processor: 2
- Main processor: STM32F427 V3
- Coprocessor: STM32F1
- Support remote control signal: PPM/SBUS/DSM
- Power supply redundancy: Support 3 channels redundancy
- 6* 3 groups of IMU
- Support fixed wing/multirotor 3-8 axis/helicopter/car/boat
- Support PX4/APM software
Sensors:
- L3GD20 3-axis Accelerometer
- LS303D Accelerometer+Magnetic meter
- Ms5611 Barometer
- MPU600 gyroscope+ Accelerometer
- MPU9250 Accelerometer+gyroscope+Magnetic meter
- Ms5611 Barometer
Parameter:
- Weight: 70g
- Shell material: CNC aluminum alloy
- Size: 68*44*15
- Working temperature: -10~55 degree C
- PWM output IO: 13
- Mavlink seriel port: 2
- Support GPS:2
- Debug interface: 1
- I2C interface*2
- CAN interface*1
- Support smart battery
- HackLink : Support
- Built in shock proof
Package list:
- 1 x Pixhack V3X Flight Controller
- 1 x 8CH PPM encoder
- 1 x Voltage and current sersor (unwelded)
- 1 x 8G TF card
- 1 x Buzzer+expansion board
- 1 x Cable
- 1 x USB cable
- 1 x Shock proof plate
