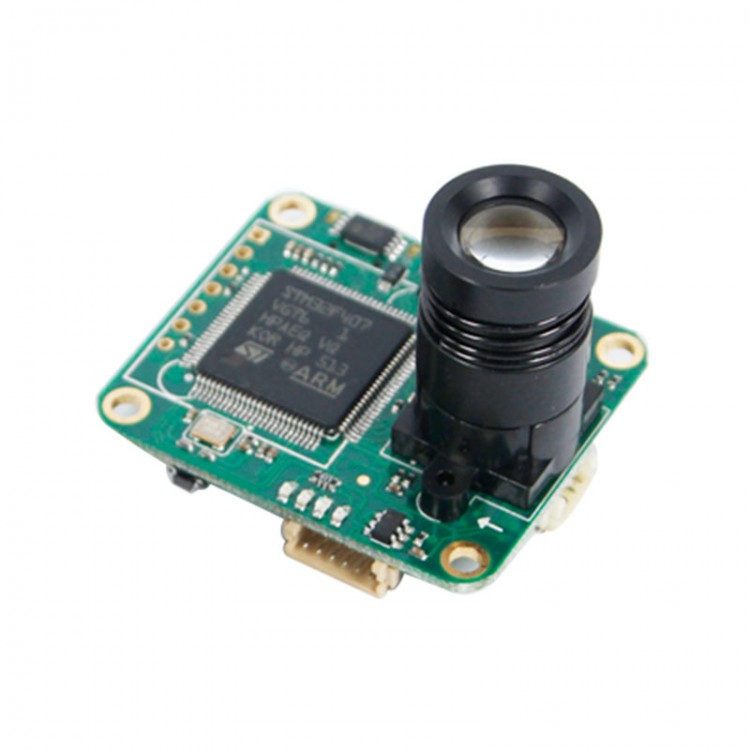

CUAV PX4FLOW 2.1 Smart Optic Flow Module No Sonar
Description:
- The board is with imported Maxbotix sonar, adopting 16mm lens, DF13 terminal
- 168 MHz Cortex M4F CPU (128 + 64 KB RAM)
- 752×480 MT9V034 image sensor, L3GD20 3D Gyro
- 16 mm M12 lens (IR block filter)
- Size 32.5*38mm
- Power consumption 115mA / 5V
Specifications
- MT9V034 machine vision CMOS sensor with global shutter
- Optical flow processing at 4×4 binned image at 400 Hz
- Superior light sensitivity with 24×24 μm super-pixels
- Onboard 16bit gyroscope up to 2000°/s and 780 Hz update rate, default high precision-mode at 500°/s
- Onboard sonar input and mount for Maxbotix sonar sensors. (HRLV-EZ4 ）
- USB bootloader
- USB serial up to 921600 baud (including live camera view with QGroundControl)
- USB power option
- Does fit the MatrixVision Bluefox MV mounting holes (camera center off-centered)
