CUAV SX 1000mw Radio Data Transmission Module 2PCS for Pixhack Flight Control FPV RC

CUAV SX 1000mw Radio Data Transmission Module 2PCS for Pixhack Flight Control FPV RC

Product Decription:
- CUAV SX Radio uses xtend main chip and it is a high power,high speed,high receive sensitivity data transmission module.Built-in XTEND RF module for American DIGI Company.Its transmitting power can reach 1000mw,ISM 900MHz rightful frequency,support multi high level network options and topological model.
- CUAV SX Radio module is low-cost wireless date solution.The module is simple and easy to use.It is especially for UAV network and point-to-point over-the-horizon transmission.
It can provide stable key date transmission betwwen UAV and device.Small size,space-saving.Compared with xtend date transmission,SX date transmission is smaller size,lighter weight but the same function and performance.

Technology Specification:
1.Performance parameter
- Power output:1000mw(0-30dBm),optional software
- Indoor/City distance:The max 3000ft(900m)
- Outdoor/Radio frequency sight distance range:The max 40 miles(64km) visual environment.
- Radio frequency date transmission rate:9.6/115.2Kbps
- Interface date transmission rate:Up to 230.4Kbps
- Receiver sensitivity:-110dBm(9600bps/hour)
2.Website parameter
- Spread spectrum type:FHSS(frequency hopping,spread spectrum)
- Website topology:DigiMesh,port-to-port,point-to-point,point-to-multipoint and repeater
- Error handling:Retry and confirm,multiple transmission
- Filter options:VID(supplier ID number),channel and addressing.
- Channel capacity:10 jump point sequence shares 50 frequency
- Address assignment:Every channel provides 65000 website addresses.
- Encryption:256 bit AES
3.Power parameter
- Supply voltage:2.8~5.5VDC (adjusted)
- Transmission current:730mA(When it is 5V,1W transmission power output)
- Receive current:80mA(When it is 5V,1W transmission power output)
- Discharging current:general 5uA
4.General situation
- Band:902~928MHz
- Serial date interface:3V~5V CMOS UART -requires no configuration,RS232 is not accepted for the moment.
5.Physical property
- Dimension:52x39x16(Single is without antenna)  59x39x16(Antenna head is included)
- Weight:39g(Single is without antenna)    62g(Single is with antenna)
- Antenna option:RPSMA
- Working temperature:-40℃~85℃(Industry)
6.Authentication
US (FCC):OUR-9XTEND
Canada(IC):4214A-9XTEND
Australia:Approved(XTH9)

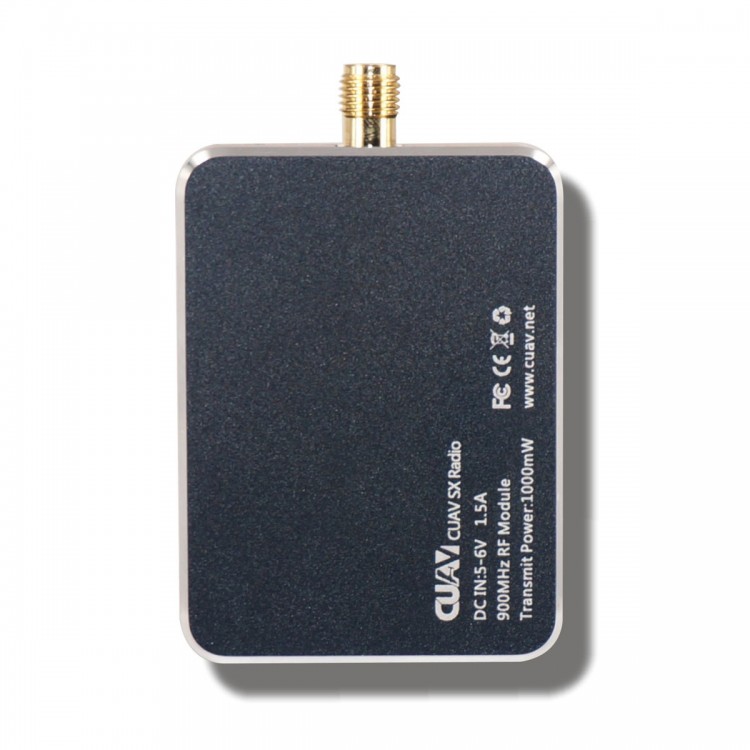

Note:The SX Radio Data Transmission Module is with shell.

Package List:
- 2 x SX 1000mw Radio date transmission
- 1 x SX-PIXHAWK date transmission wire
- 1 x USB wire
- 2 x Date transmission antenna
