CUAV V5+ Flight Controller & NEO V2 GNSS Module (25CM Cable) for FVP Drone Quadcopter Helicopter

CUAV V5+ Flight Controller & NEO V2 GNSS Module (25CM Cable) for FVP Drone Quadcopter Helicopter

Description:

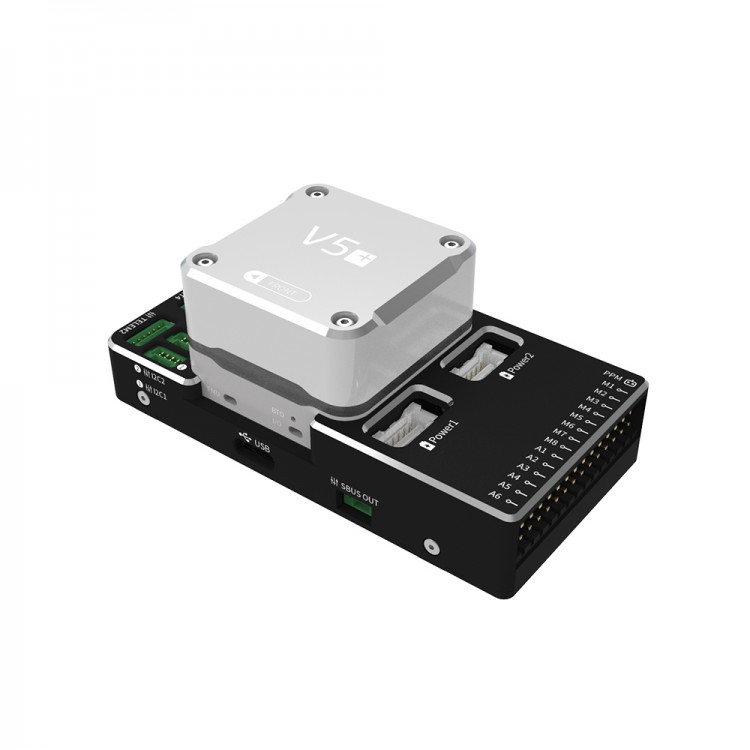

V5+ is an advanced flight controller manufactured by CUAV. The board is based on the Pixhawk FMUv5 design standard, the external interface uses the Pixhawk standard pinouts, and the modular design allows the users to customize their own carrier board. It is compatible with both PX4 and firmware for ArduPilot. V5+ is ideal for academic research and commercial systems integration.

Flight Controller Specifications:
Hardware parameter:
- Main processor: STM32F765 (32Bit for Arm Cortex-M7, 216MHz, 2MB flash, 512KB RAM)
- Coprocessor: STM32F100 (32Bit for Arm Cortex-M3, 24MHz, 8KB SRAM)

Sensor:
- Accelerometer: ICM-20602/ICM-20689/BMI055
- Gyro: ICM-20602/ICM-20689/BMI055
- Compass: IST8310
- Barometer: MS5611

Interface:
- UART: 5
- I2C: 4
- SPI: 1
- CAN: 2
- ADC: 2
- PWM out: 14
- PWM in: 6
- PPM in: 1
- DSM/SBUS/RSSI: 1
- Power1: 1
- Power1: 1
- Safety switch: 1
- Buzzer: 1
- USB-TYPE-C: 1
- TF slot: 1

Function:
- Firmware: for PX4/Ardupilot
- Model: Copter/Plane/Helicopter/VTOL/unmanned vehicle/Rover, etc.
- Power: Three-way power input redundancy

Size and Weight:
- Size: 85.5 x 42 x 33mm/3.4 x 1.7 x 1.3"
- Weight: 91g/0.2lb

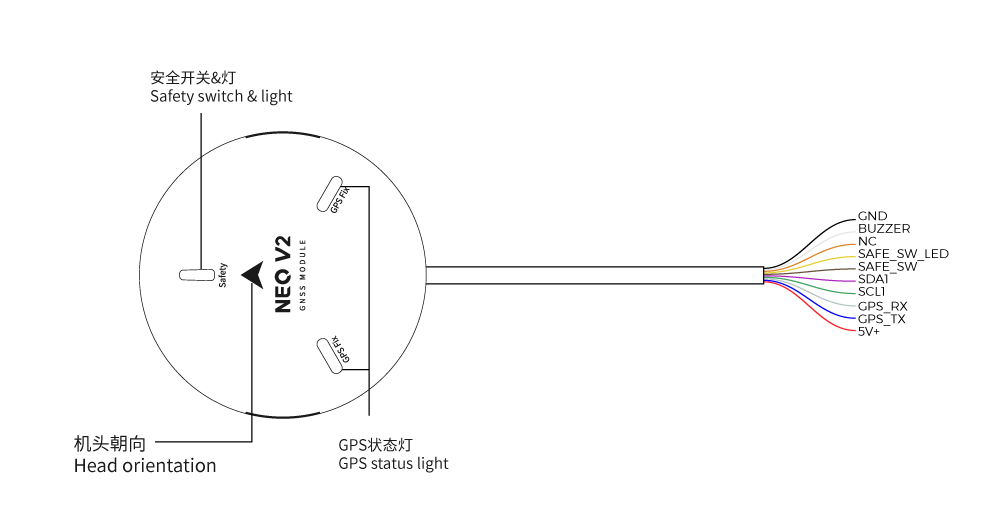

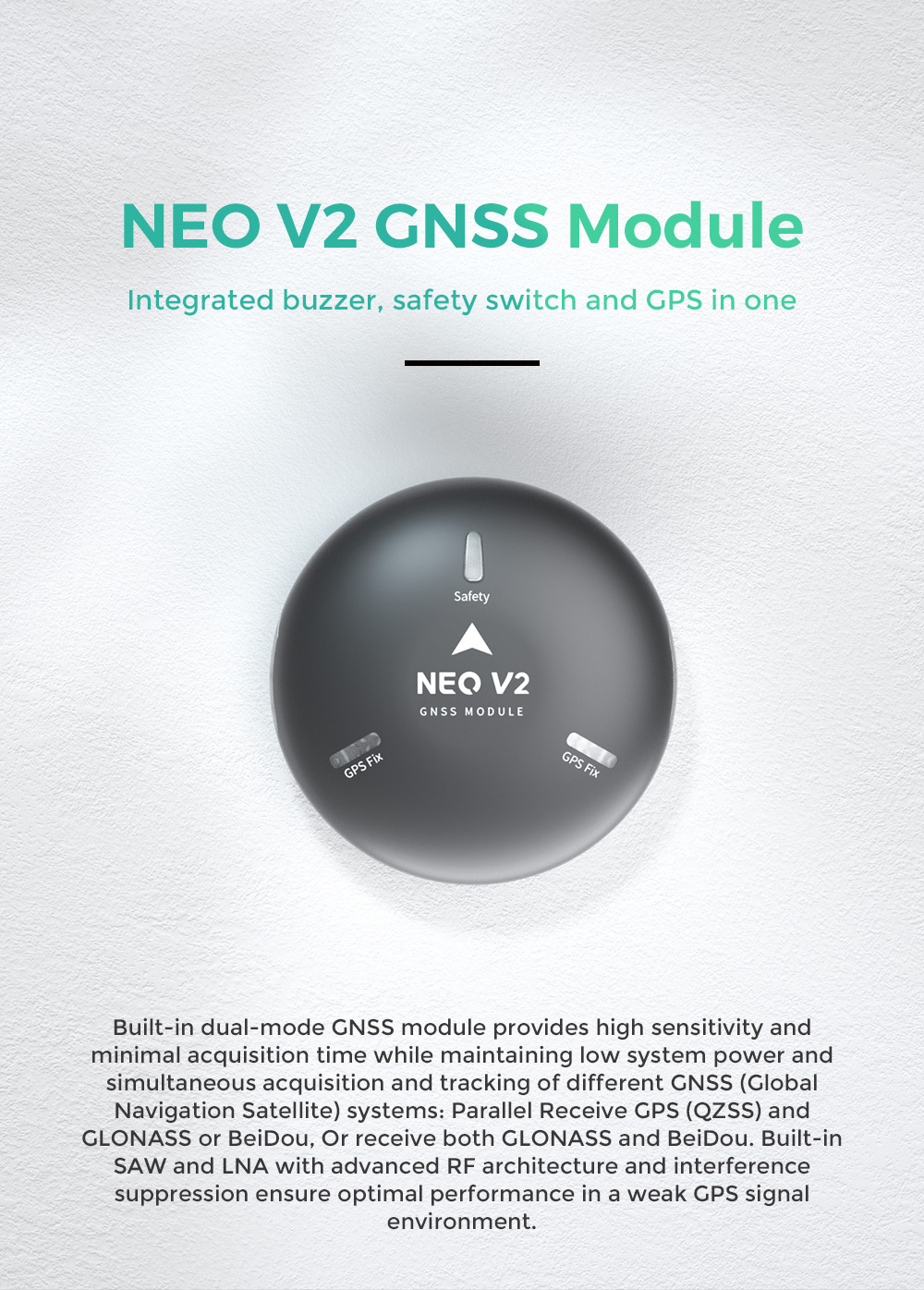

NEO V2 GNSS Module:
Chip Type:
- GPS Location: for U-BLOX M8N

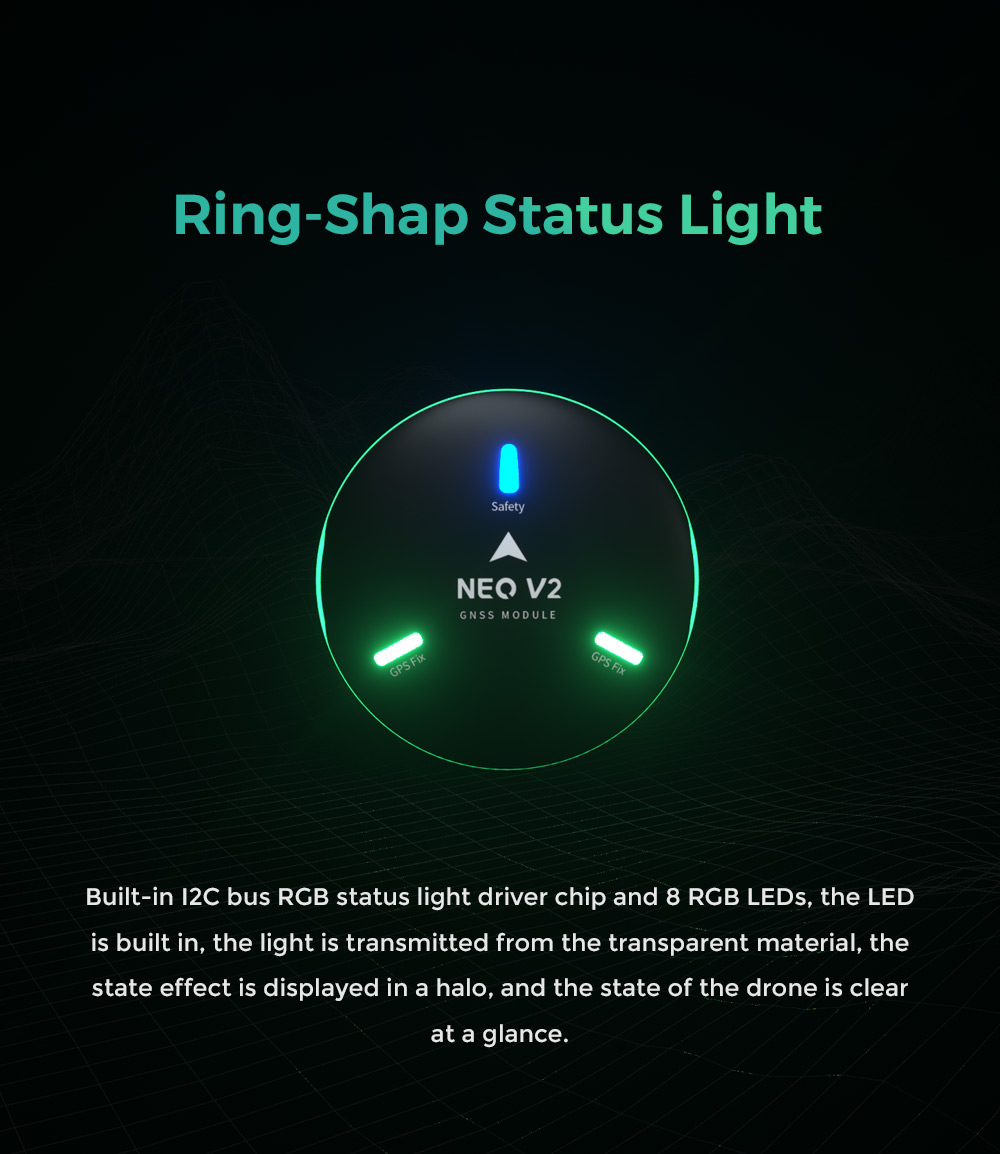

- RGB Status light: NCP5623C
- Compass: IST8310
- Buzzer: Passive buzzer
- Safety switch: Physical buttons

Positioning Performance:
- Accuracy: 3DFix
- Update rate: 10Hz (Max)
- Acquisition: Cold Start 26S; Host Start 1.5S; Aided Start 2S; Re-acquisition 1S

Other Parameters:
- Receiver type: 72 Channels. GPS/QZSS L1 C/A, GLONASS L10F BeiDou B1l, Galileo E1B/C SBAS L1C/A: WAAS, EGNOS, MSAS, and GAGAN
- Sensitivity: Tracking & Navigation: -167dBm; Cold Start: -148dBm; Hot Start-156dBm; Reacquisition-160dBm
- Functional: Advanced jamming. Fast search satellite speed. Security and integrity protection. Receiving up to three GNSS at the same time

Working Conditions:
- Input voltage: 5V
- Temperature: -10 to 70℃

Package Included:
- 1 x Flight Controller V5+
- 1 x I2C/CAN Cable
- 1 x ADC3.3 Cable
- 1 x RSSI Cable
- 1 x SUBS Cable
- 1 x HV PM Power Module
- 1 x Dupont Cable
- 1 x Pw-Link Module
- 1 x USB-Type C Cable
- 1 x 16G Memory Card
- 1 x DSM Cable
- 1 x CAN Extension Board
- 1 x NEO V2 Module
- 1 x Bracket for NEO V2 Module
