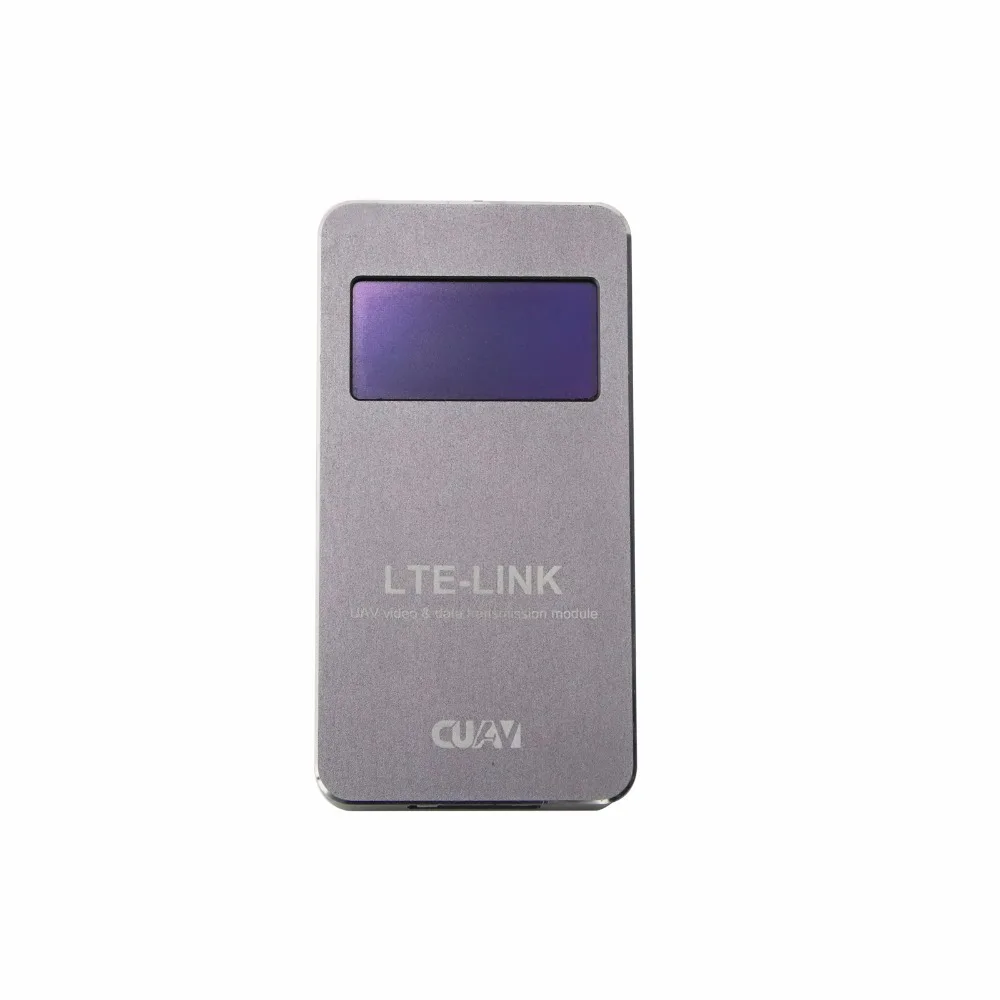

New CUAV LTE-LINK breaks through the traditional transmission method, which utilizes the advanced 4G LTE network (public or private network) to integrate data and video streams for unlimited distance transmission.
CUAV LTE-SYSTEM will be the industry’s first mass-produced popular UAV 4G LTE system
It is not only an infinite digital link, and it is an advanced UAV communication system with a variety of advancements.
It is the next-generation industrial drone communication system, which can not only realize 4G or even 5G public network communication, but also expand 4G LTE private network communication, thus realizing unlimited connection of real drones.
Relying on the advanced 4G LTE/5G network and the Internet, mobile phone signals can be interconnected, regardless of regional, regional or even national restrictions. There is almost no co-channel interference and obstacle restrictions.
A CUAV universal standard account can support up to 12 LTE-LINK terminals simultaneously binding.
Users can log in to the CUAV GS ground station via mobile phone or
computer to control and manage one or more drones of their own.
Via
UAV-HUB platform to view the location and information of the drones in
the group in real time, meeting the needs of most enterprise drones.
Remote WEB cloud management drone through the latest CUAV UAV-HUB Web cloud drone management platform
Includes real-time video and data from drones, flight plans, data playback, permission settings, etc.

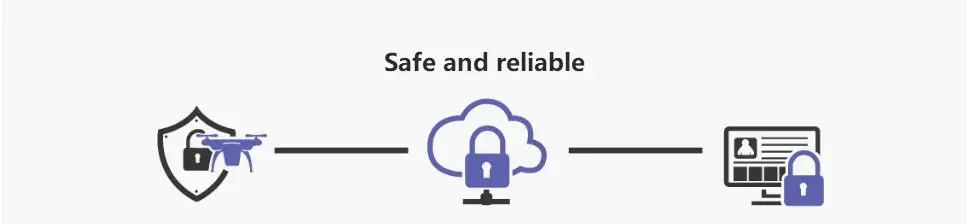

LTE-LINK, client, and server all adopt TLS 1.3 AES-256 bidirectional symmetric and asymmetric hybrid encryption.
Protect your drone data security and reliable transmission, eliminate data tampering, eavesdropping and man-in-the-middle attacks
At present, CUAV has developed Android, WINDOWS, and WEB clients to meet customer needs of different application needs
| Network Type |
|
|
| Support
camera type |
HDMI or SDI HD (depending on model) | |
| Support for flight control type | Pixhack V2/V3/V5 Pixhawk and so on | |
| Support communication protocol | MAVLINK1/2 | |
| Transmission distance | theory is not limited, depending on the coverage of the base station
Scala |
|
| Scalable device | Redundant network module or private network module (TYPE-C extension) | |
| Wireless band | LTE(FDD): B1,B3,B8; LTE(TDD): B39,B40,B41(38), all bands with diversity DC-HSPA+: B1,B9,B5,B8; TD-SCDMA: B34, B39, all bands with diversity EDGE/GPRS/GSM: 1800/900MHz |
|
| Support client | Android 5.0 and above and WINDOWS XP \ WINDOWS 10 |
| Operating Voltage |
|
|
| Working current | 12V/1.5A MAX | |
| Operating temperature | -10°~ +60° | |
| Size | 75 mm * 39mm * 17mm | |
| shell material | 6063 Aviation Aluminum | |
| Antenna interface type | SMA inner hole | |
| Screen type | OLED self-illumination 128*64 resolution |
| Support network type |
|
|
| Support camera type | HDMI or SDI HD (depending on model) | |
| Extension ports | ||
| RJ45 Gigabit Ethernet port X1
TTL serial port X3 TYPE-C USB X1 4G antenna extension X2 HDMI IN or SDI IN (depending on the hardware model) |
Note: If you are interested in purchasing this item, we can do a remote test for you. Thank you!
Specifications:
Package including:
