Cube Baby BASS Guitar Effects Pedal with the Function of Wireless Music Play and Cellphone Recording

Cube Baby BASS Guitar Effects Pedal with the Function of Wireless Music Play and Cellphone Recording

Features:
- It has the incentive effect and balanced regulation effect.
- It has two modulation effects: Chorus and Phase.
- Delay effects & Reverb effects & Compressed effects
- 8 classic IR guitar body simulation
- A high precision tuner
- It has the mobile phone recording function.
- It has the function of wireless music playing and computer sound card.

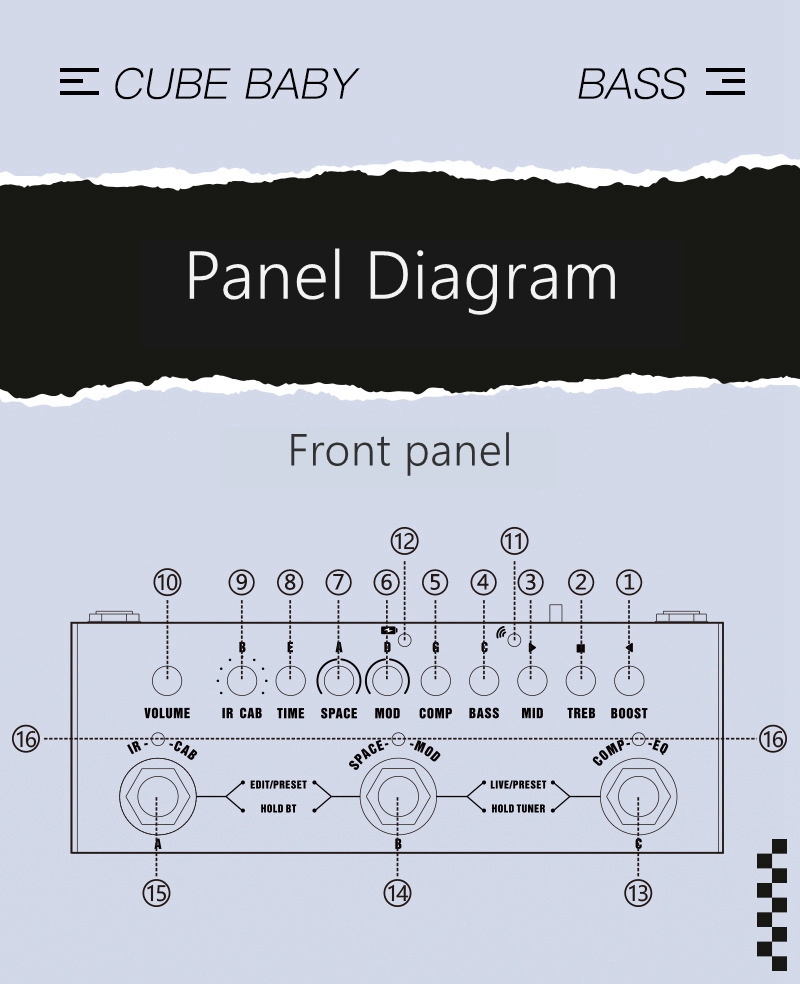

Front Panel:
①BOOST: Incentive effect adjustment
②TREB: High frequency adjustment
③MID: Medium frequency adjustment
④BASS: Low frequency adjustment
⑤COMP: Compressed effects
⑥MOD: Chorus/Phase effects
⑦SPACE: Delay/Reverb effects ratio of wetting-drying-time
⑧TIME: Delay/Reverb-time and speed
⑨IR CAB: IR simulation select knob
⑩VOLUME: Output volume gain knob
⑪Wireless music playback light
⑫Charging light
⑬C function foot switch
⑭B function foot switch
⑮A function foot switch
⑯Module/Pin indicator

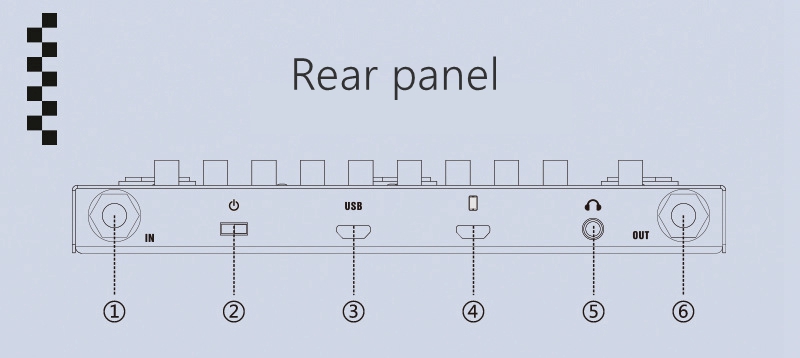

Rear Panel:
①IN: Used to connect signal input of guitar
②Power switch
③USB port: Used to charging, built-in USB audio interface function. It can be connected to the computer for recording playback, support User import third party IR CAB.
④Mobile phone port: Used for recording and playback of mobile phones.
⑤Headphone output: Connect to the listening headphone.
⑥OUT: Mono output, connected to a speaker or mixer.

Function:

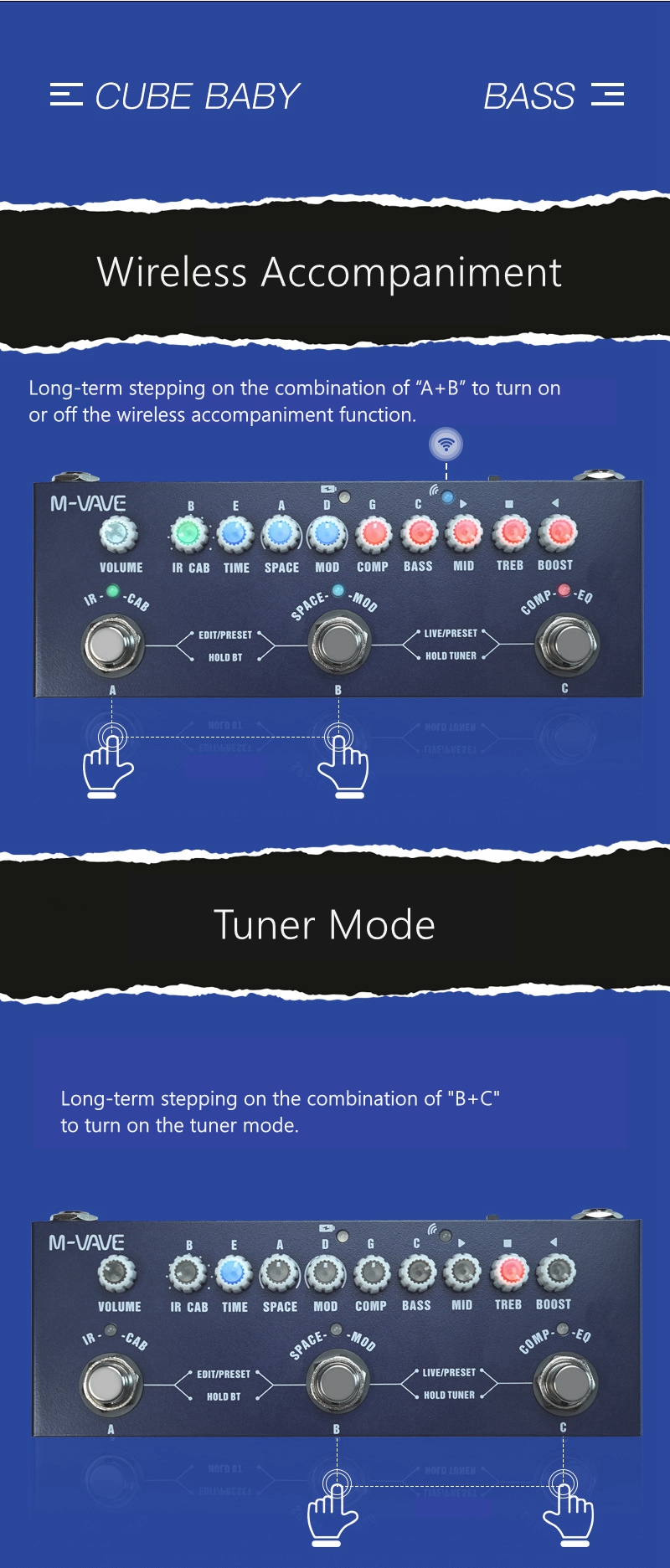

- Wireless accompaniment input function: CUBE BABY-AC includes wireless music playback, which allows users to play accompaniment during practice or performance, and long-term stepping on the combination of “A+B” to turn on or off the wireless accompaniment function. When the device is not connected successfully, the wireless light flashes slowly, and when the connection to the phone/tablet settings is successful, the light lights up blue. Press the “A+B” pin again until the light goes out to exit this function.
- Mobile Recording function: CUBE BABY-AC includes high-quality phone recording capabilities that connect the device's phone socket to your phone/tablet via a random internal recording dedicated cable, and enable high-quality recording using your phone/tablet recording software.

Parameter:
- Input: Standard 1/4’’ interface mono/TS
- Output: Standard 1/4’’ interface mono/TS
- Sample rate: 48K/24bit
- Battery capacity: 780mah

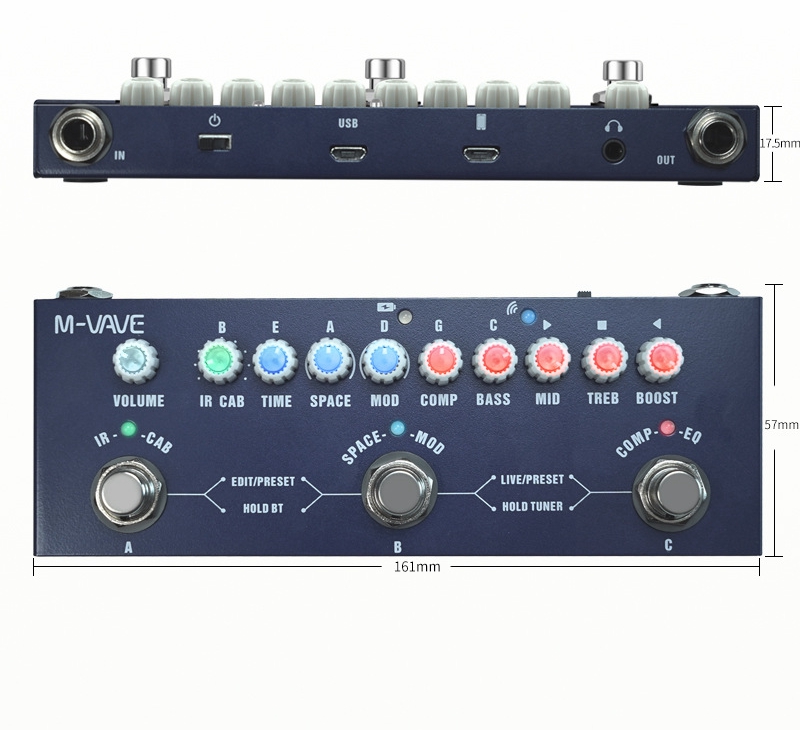

- Size:161 x 57 x 17.5mm
- Weight: 260g
- Attachment: Instruction, Charging cable, Recording cable.

Package Included:
- 1 x CUBE BABY BASS
- 1 x Charging cable
- 1 x Recording cable
- 1 x Manual
