Cube Pixhawk2 Autopilot Flight Controller Open Source For Fixed-Wing Drone Multi-rotors

Cube Pixhawk2 Autopilot Flight Controller Open Source For Fixed-Wing Drone Multi-rotors

Description:
- Modular design for flexibility
- Ready for RTK GPS & multiple GPS
- Triple redundancy IMU system
- Isolated, dampened and temperature controlled IMU

Key Design Points:
- Built-in IMU heating system, allowing flights at extreme temperature (below ice point)
- Robust DF17 interface connectors, enhance drop and shock resistance
- Airframes: VTOL, Plane, Multicopter 3-8Axis, Traditional Helicopter, Rover, Boat, Sub, General Robotics

Hardware Parameters:
- Main Processor: STM32F427 V3
- Companion Processor: STM32F1
- Supported Remote Control Signals: PPM/SBUS/DSM
- Power Redundancy: Support for 3-Way Redundancy
- Sensor Quantity:
   L3GD20 (3-Axis Accelerometer)
   LS303D (Accelerometer + Magnetometer)
   MPU9250 x 2 (Accelerometer + Gyroscope + Magnetometer)
   MS5611 x 2 (Barometer)
- Software: Supports for PX4 & Ardupilot Open Source Flight Control Software

Basic Parameters:
- Weight: 73g
- Materials: CNC Aluminum Alloy (Cube) + Molding ABS (Carrier Board)
- Operating Temperature: -10℃ to 55℃ IMU Constant Temperature Control

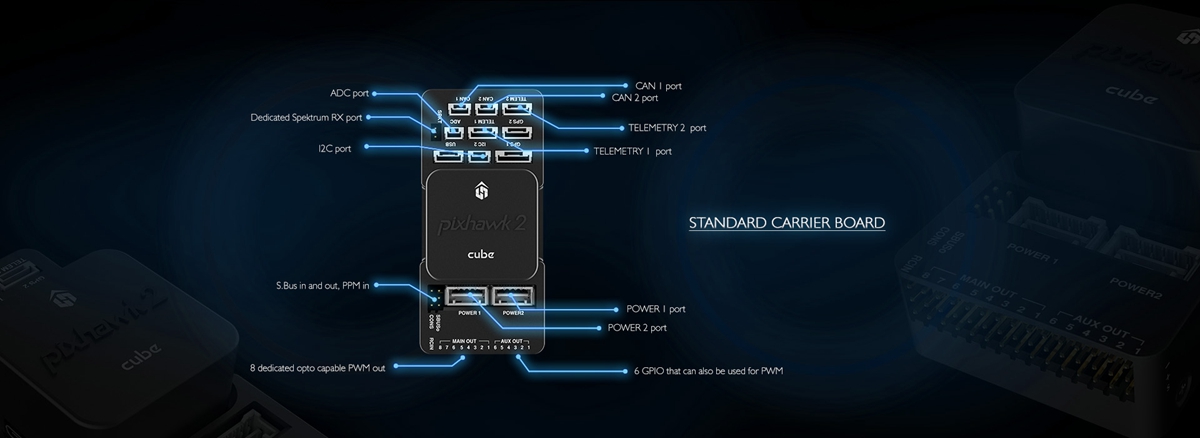

- PWM Output IO: 14
- Mavlink Serial Ports: 2
- Supported GPS: 2pcs
- Debugging Port: 1
- I2C Ports: 2
- CAN Port: 1

Flight Functions:
- Support position holding, fixed height flight, auto flight mode, following mode and other flight modes
- Ground station supports for Qgroundcontrol and Mission Planner
- Built-in flight data recording
- Real-time flight data transmission
- Support 360° obstacle avoidance (Extra distance sensor is needed)

Expansion Functions:
- Support for TX1, Raspberry Pi, Intel Edision and other synergetic computers
- Support OSD display

Protection Functions:
- Smart return
- Low voltage protection
- Obstacle avoidance
- Remote control protection when it is beyond link

Package Included:
- 1 x Set of Cube Pixhawk2 Autopilot
