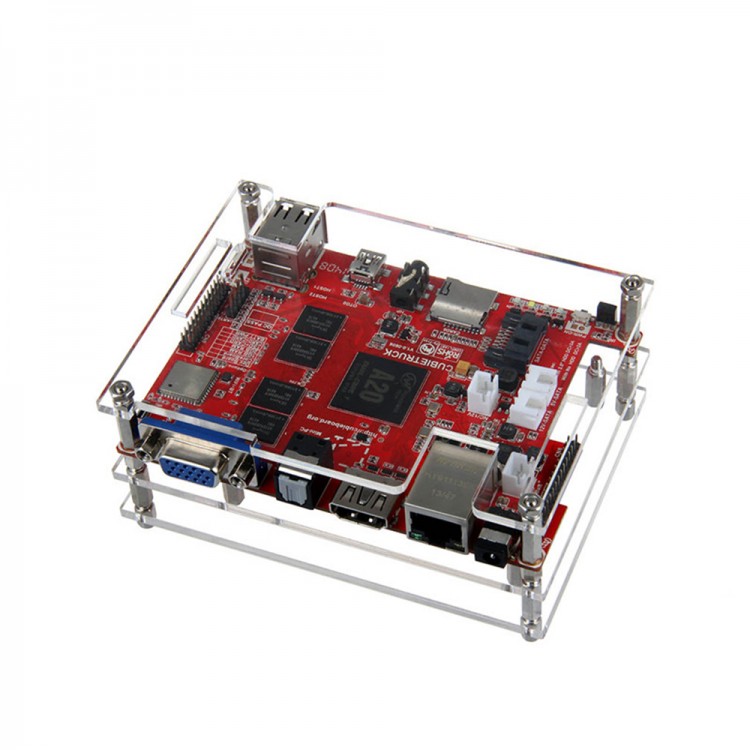

Cubieboard3 A20 Dual Core Development Board Cubietruck Beyond Raspberry Pi Pcduino 2GB DDR3 8G NAND

Cubieboard3 A20 Dual Core Development Board Cubietruck Beyond Raspberry Pi Pcduino 2GB DDR3 8G NAND

Description:
CubieTruck uses Allwinner A20 main chip, the same with Cubieboard2. But it is enhanced with some features, such as 2GB memory, VGA display interface on-board, 1000M NIC, WIFI+BT on-board, support Li-battery and RTC, SPDIF audio interface. It is more for making real product.

Specifications:
- Allwinner Tech SOC A20 ARM® Cortex™-A7 Dual-Core ARM® Mali400 MP2 Complies with OpenGL ES 2.0/1.1
- 2GB DDR3 480MHz
- HDMI&VGA 1080P display output on-board
- 10M/100M/1G Ethernet
- WIFI + BT wireless connection with antenna on-board
- SATA 2.0 interface support 2.5' HDD (for 3.5' HDD, only need another 12V power input)
- Storage solution NAND(8G) + MicroSD
- 2 x USB HOST, 1 x OTG, 1 x SPDIF, 1 x IR, 4 x LEDs, 1 x Headphone, 3 x Keys
- Built-in HDMI/ VGA display interface
- SPDIF audio interface
- Power DC5V/2.5A with HDD support Li-battery & RTC
- 54 extended pins including I2S, I2C, SPI, CVBS, LRADC x2,UART, PS2, PWM x2, TS/CSI, IRDA, LINEIN&FMIN&MICIN, TVIN x4 with
- 2.0 pitch connectors
- PCB size: 11cm *8cm*1.4mm

Cubieboard A20:
- Size: 10*6cm
- CPU: Dual core
- CPU Clock Frequency: 1GHz
- RAM: 1GB DDR3
- Flash/NAND: 4GB
- WIFI/Bluetooth: N/A
- SATA: SATA 2.0
- RTC: N/A
- GPIO: 96 extend pins
- USB Host/OTG 2xUSB: 2.0  2xUSB/1xMini USB 2.0
- Video Out HDMI: HDMI
- Audio Out: HDMI/SPDIF/Headphone
- OS support: Linux/Android

Pack List:
- 1 x CubieTruck main board
- 1 x SATA 2.0 cable
- 1 x Mini USB to OTG
- 1 x Mini USB cable
- 1 x Screw set
- 1 x Acrylic Board Set
- 1 x Ultrathin Heat Sink
