| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $57.34 | $56.17 | $54.41 | $52.07 | Contact US |
ZM-3H2080 24V High Performance 3-Phase Stepper Motor Driver Controller AC80-220V for 86-130MM Stepper Motors
$166.32
ZM-3H2080 12V High Performance 3-Phase Stepper Motor Driver Controller AC80-220V for 86-130MM Stepper Motors
$166.32
ZM-3H2080 5V High Performance 3-Phase Stepper Motor Driver Controller AC80-220V for 86-130MM Stepper Motors
$166.32

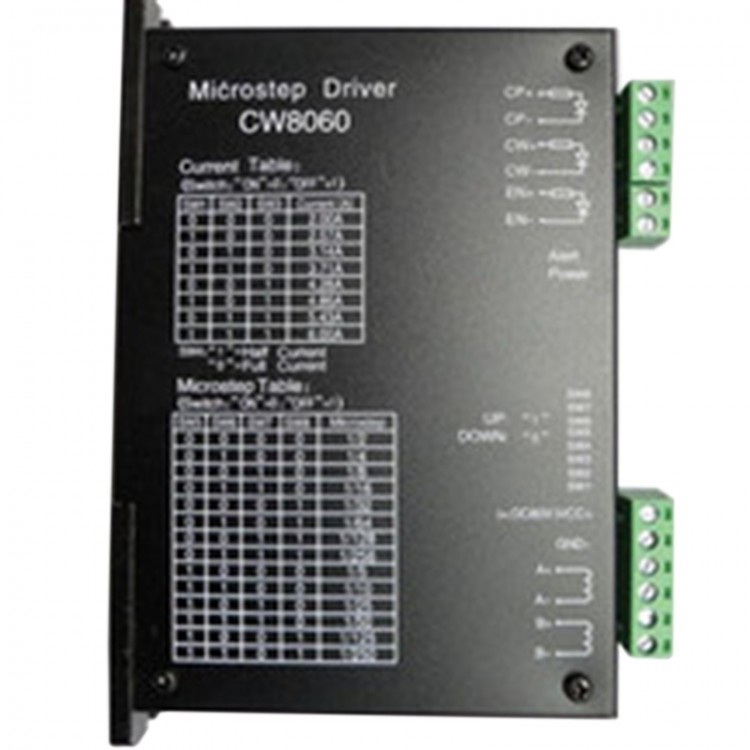

CW8060 Stepper Motor Driver 80VDC/6A /256 Microstep for CNC Router Stepper Controller
Specification:
1. DC power input type: 24V~80V
2. Output current: 2~6A

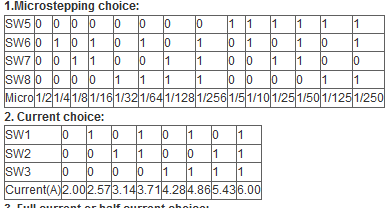

3. Mircostepping:1(1.8deg),1/2,1/4,1/8,1/16,1/32,1/64,1/128,1/256;1/5,1/10,1/25,1/50,1/125,1/250
4. Protect form: Overheated protect, lock automatic half current, error connect protect
5. The maximum pulse rate is 100KHZ;
6. Dimensions: 147mmx97mmx30mm;
7. Weight:<500g.
8. Working environment: Temperature-15~40deg Humidity<90%.
9. It is fit for NEMA17-34 two and four phase stepper motors whose current is small than 6A.
Full current or half current choice:
SW4:0=Full current;1=half current

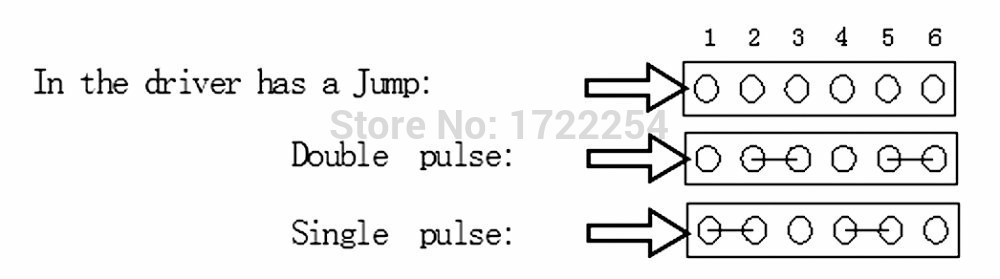

Pulse choice:
Usually default setting is single pulse
Package included:
- 1 x Stepper Motor Driver
