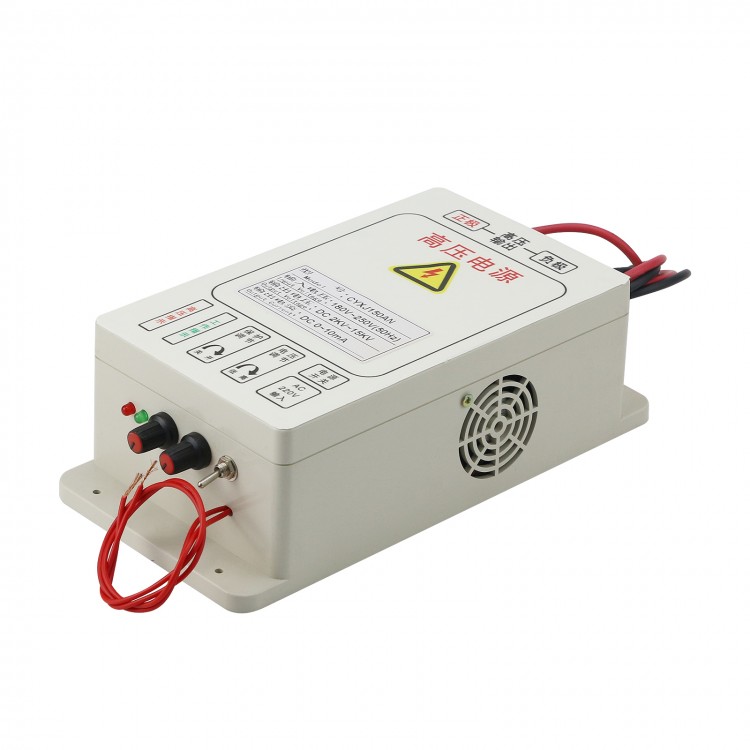

CX-150A HV Power Supply 150W 15KV High Voltage Power Supply for Oil Fume Purifier Air Purification

Availability: In stock, usually dispatched in 1 business day

  • Price:$55.06
  • Price in reward points: 551 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $53.96 $52.86 $51.21 $49.00 Contact US
Quantity:

CX-150A HV Power Supply 150W 15KV High Voltage Power Supply for Oil Fume Purifier Air Purification

Main Parameters:

- Model: CX-150A
- 150W single output
- Input Voltage: 180V~250V (50hz/60hz) or 110V±10V (50hz/60hz)
- Output Voltage: DC 2KV~15KV
- Output Current: 0-10mA
- Output Power: 150W
- Size: 240 x 120 x 70mm/9.4 x 4.7 x 2.8"
- Weight: 0.85kg/1.9lb

Attention:
Either the positive output cable or the negative cable can be connected to the Ground: if you used the positive output as 0V ,the negative output will generate -15kv to -2kv; if you used the negative output as 0V(GND)the positive output will generate +2kv to +15kv.

Protection:
- Short-circuit protection: when the positive output line and the negative output line are short-circuit, the output voltage will be cut off
- Spark prevention: when the electrostatic field is generating a spark-over, the HV power supply will cut the output, after half one second, the output will be restarted again, the preventing spark-over protection function can also be shut down by the potentiometer on the box,if the preventing spark-over protection function was closed, the HV power supply can continuously generate the high voltage spark between the positive and negative cable. You can change the output voltage continuously with the potentiometer on the box
- Over-voltage protection.

Application Occasions:
High voltage electric field, electrotatic air cleaner, electrostatic field, clean smoke, air purifiers, air ionizer, etc.

The output voltage can be adjusted by DC 0-5V input, you can use the PLC to control the output voltage too.
