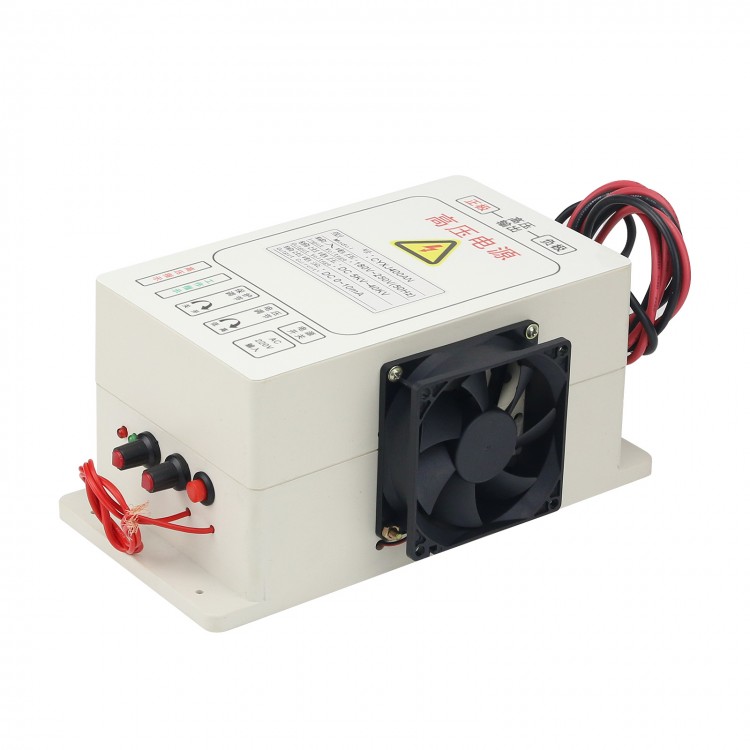

CX-400A HV Power Supply 5KV-40KV One-Way Output for Electrostatic Ionization Air Purification
Specifications:
* CX-400A: Single output
* Input Voltage: 180V-250V (50hz/60hz) or 110V±10V (50hz/60hz)
* Output Voltage: DC 5KV-40KV
* Maximum Output Power: 400W
* Output Current: DC 0-10mA
* Size: 240 x 145 x 105mm/9.4 x 5.7 x 4.1"
Attention:
Either the positive output cable or the negative output cable can be connected to the ground or used as 0V: if you use the red output cable as 0V, the black output cable will generate -40kv to -5kv. If you use the black output cable as 0V , the red output cable will generate +5kv to +40kv.
Protection Functions:
1. Spark prevention: when the electrostatic field is generating a spark-over, the HV power supply will cut the output, after half one second, the output will be restarted again. The preventing spark-over protection function can also be shut down by the potentiometer on the box, if the preventing spark-over protection function was closed, the HV power supply can continuously generate the high voltage spark between the positive and negative cable. You can change the output voltage continuously with the potentiometer on the box
2. Short-circuit protection: when the positive output line and the negative output line are shorted, the output voltage will be cut off
3. Over-voltage protection
Application Occasions:
* High voltage electric field, electrotatic air cleaner, electrostatic field , clean smoke, air purifiers, air ionizer, etc.
Package Included:
* 1 x HV Power Supply
