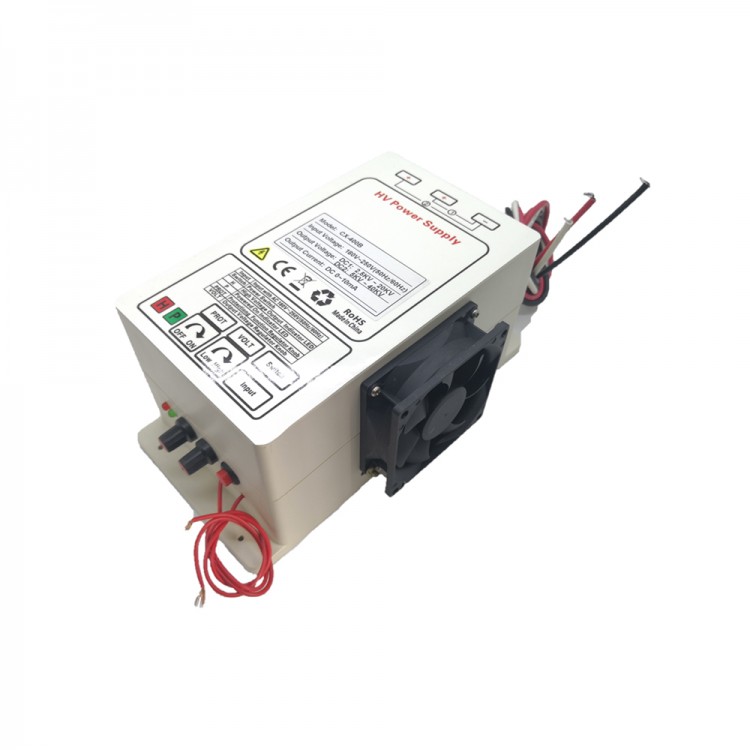

CX-400B HV Power Supply High Voltage Power Supply 5KV-40KV Dual Output for Spraying Air Purification

CX-400B HV Power Supply High Voltage Power Supply 5KV-40KV Dual Output for Spraying Air Purification

Specifications:
* CX-400B: Dual output
* Input Voltage: 180V-250V (50hz/60hz) or 110V±10V (50hz/60hz)
* Output Voltage: DC1: 2.5KV~20KV; DC2: 5KV~40KV
* Maximum Output Power: 400W
* Output Current: DC 0-10mA
* Size: 240 x 145 x 105mm/9.4 x 5.7 x 4.1"

Attention:
Either the positive output cable or the negative output cable can be connected to the ground or used as 0V:

If you used the red output cable as 0V, the black output cable will generate -40kv to -5kv, the white output cable will generate -20kv to -2.5kv.

If you used the white output cable as 0V, the black output cable will generate -20kv to -2.5kv, the red output cable will generate +2.5kv to +20kv.

If you used the black output cable as 0V, the white output cable will generate +2.5kv~+20kv the red output cable will generate +5kv to +40kv.

Protection Functions:
1. Spark prevention: when the electrostatic field is generating a spark-over, the HV power supply will cut the output, after half one second, the output will be restarted again. The preventing spark-over protection function can also be shut down by the potentiometer on the box. If the preventing spark-over protection function was closed, the HV power supply can continuously generate the high voltage spark between the positive and negative cable. You can change the output voltage continuously with the potentiometer on the box
2. Short-circuit protection: when the positive output line and the negative output line are shorted, the output voltage will be cut off
3. Over-voltage protection

Application Occasions:
* High voltage electric field, electrotatic air cleaner, electrostatic field , clean smoke, air purifiers, air ionizer, etc.

Package Included:
* 1 x HV Power Supply
