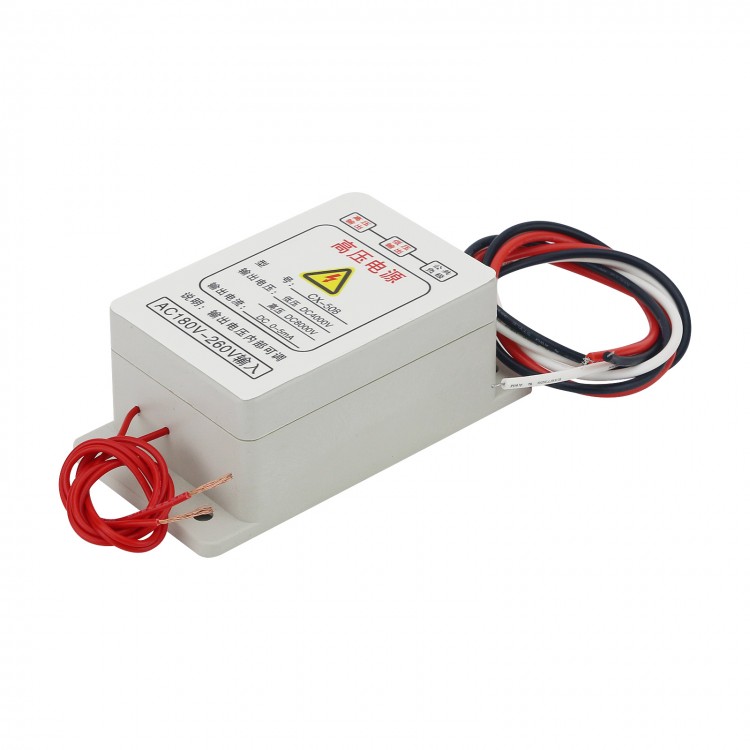

CX-50B 50W High Voltage Power Supply High-Voltage Low-Voltage 2-Channel Output For Home Air Purifier
Description:
This power supply is specially designed for air purifiers. The output voltage is 4KV and 8KV dual common ground output. Internal voltage is adjustable, and the overall high-voltage package is used to generate high-voltage, which is more reliable than the traditional method of using a voltage doubler to obtain high-voltage output, and the power quality is stable and reliable.
Specifications:
- Model: CX-50B (2-Channel Output)
- Input voltage: 180V-260V
- Adjustable Output Voltage: Low-voltage DC 4000V; High-voltage DC 8000V
- Output Current: 0-5mA
- Output Power: 50W
- Dimensions: 131 x 67 x 50 mm (LxWxH)
Package Included:
- 1 x Power Supply
Using Method:
1. Connect high-voltage output line to a required load. Red line 1 is the high-voltage positive DC 8KV, white line is the low-voltage positive DC 4KV, and the black line is the public output negative. Please note that the high-voltage package must be connected to a load to avoid damage to it.
2. Connect three high-voltage wires to load electric field and 220V AC voltage respectively, and the equipment can work normally. When the load is too large and the voltage drops too much, you can open the case and adjust the internal potentiometer to the voltage you need.
