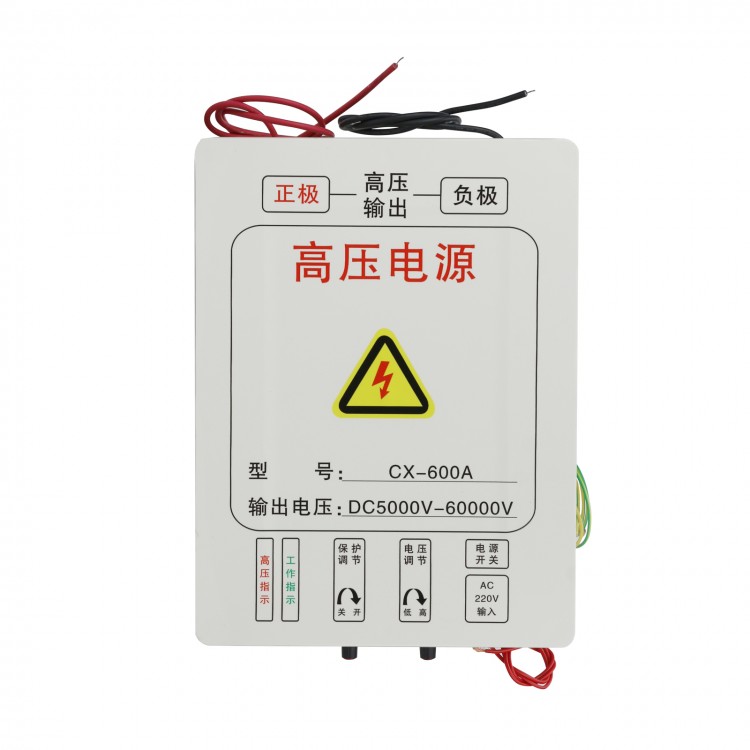

CX-600A 600W High Voltage Power Supply Output DC 5000V-60000V for Barbecue Car Remove Charcoal Kiln Smoke
Description:
The new type of pulse output type adopts program intelligent control, with more complete protection function, open-circuit, fire-proof, short-circuit, over-temperature, over-current, over-voltage protection, and adopts new program control. Without changing the power, the discharge efficiency is improved, the purification effect is greatly improved, and the work is more stable and reliable.
CX-600A 60kV High Voltage Power Supply Farm for Smoke Removal in Charcoal Kiln with High Power Space Electric Field.
On the output power of high voltage power supply:
1. If used in greenhouses and farms, the actual output power is about 40W and the output current is less than 1mA.
2. If it is used to remove smoke from charcoal kiln (the diameter of driving pipe is 13-16 cm), the output power is related to the number of pipes. The maximum output power can reach 600W, the length of pipes is 3 meters, and the number of pipes is 6-12.
3. If it is used in other purifiers, the actual power is related to the electric field form. It is not introduced here. For details, please consult.
Note that if used for electrostatic precipitation and dehumidification in aquaculture farms, it is necessary to connect the positive (red line) of the high-voltage output to the earth and the negative (black line) of the high-voltage output to the overhead line.
If it is used in vegetable greenhouse electrostatic field, the high-voltage output positive (red line) is connected with overhead line, and the high-voltage output negative (black line) is grounded. Users who can buy enough should pay attention to the use.
In addition, users are required to purchase overhead wires, high-voltage porcelain bottles (insulating terminals) through wall porcelain tubes, and timers. Our shop only provides high voltage power supply.
Features:
- New pulse output type
- Built-in fan enables excellent heat dissipation effect
- Intelligent program control: Pulse output type, high efficiency, and more protection functions
- Power supply boasts higher efficiency and more stable working status, perfect for charcoal kiln smoke removal
Specifications:
- Model: CX-600A
- Input Voltage: AC 180~250V
- Output Voltage: DC 5000V-60000V
- Output Current: DC 0-10mA
- Output Power: 600W
- Dimensions: 320 x 230 x 110mm/12.6 x 9.1 x 4.3"
Package Included:
- 1 x High Voltage Power Supply
