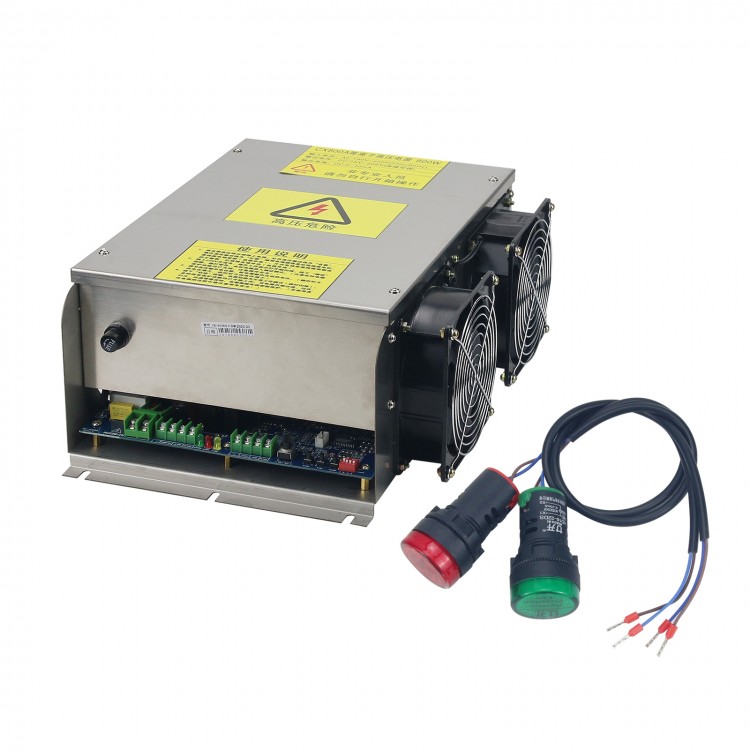

CX-800A 800W High Voltage Power Supply Plasma Power Supply For Oil Fume Cellular Electric Field
Advantages:
- Stainless steel housing
- Optimized circuit
- New machine patch process
- Optimized software
- Works more stably
Attention:
1. This high-voltage power supply must not work without load. Please connect a load (purifier electric field) before powering on. Although the power supply has an open circuit protection function, 100% effective protection cannot be guaranteed when power supply is high. Therefore, the high voltage line must be connected to the electric field before power-on.
2. At the same time, ensure that the connection of high-voltage output line to the load end is reliable and cannot be loosened, otherwise the power supply may be damaged due to instant high-voltage shock!
3. Never disconnect the load during the operation of the power supply, otherwise the power supply may be damaged due to instant high voltage shock!
Description:
This high-voltage power supply can be used for air fume purification, restaurant kitchen fume purification, cellular electric fields, and tubular electric fields. The power supply is protected against ignition, over-current, short-circuit and over-temperature. The power supply is controlled by program. At the same time, the power supply can automatically adjust output voltage according to the ignition degree of electric field to realize intelligent protection. At the same time, the corresponding protection function and ignition sensitivity gears can be selected through dip switch on the circuit board according to users' preference.
Watch Operation Video Here:
http://v.youku.com/v_show/id_XMTQzMzk5NTUyMA==.html
Specifications:
- Model: CX-800A
- Input Voltage: AC 180V~250V; Frequency: 50Hz/60Hz
- Output Voltage: DC 2KV~20KV (Continuously adjustable)
- Output Current: DC 0-40mA
- Output Power: 800W
- Size: 375 x 240 x 130 mm
Package Included:
- 1 x High Voltage Power Supply

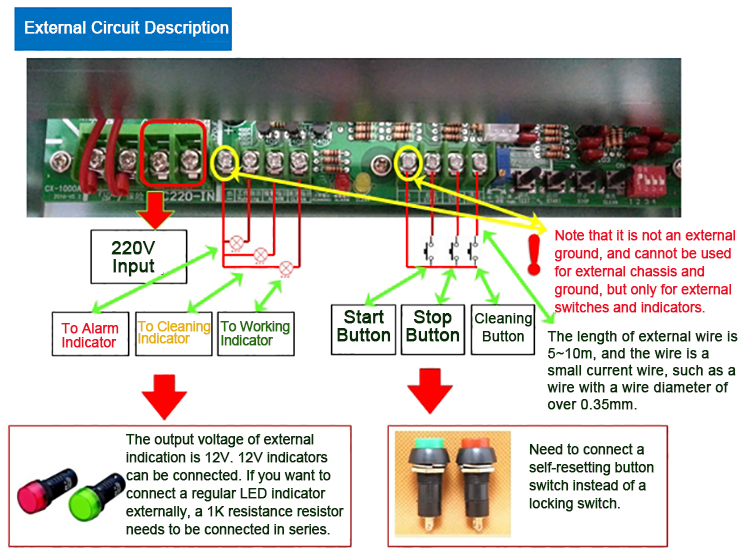

Power Supply Installation & Precautions:
