| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $785.59 | $769.56 | $745.51 | $713.44 | Contact US |

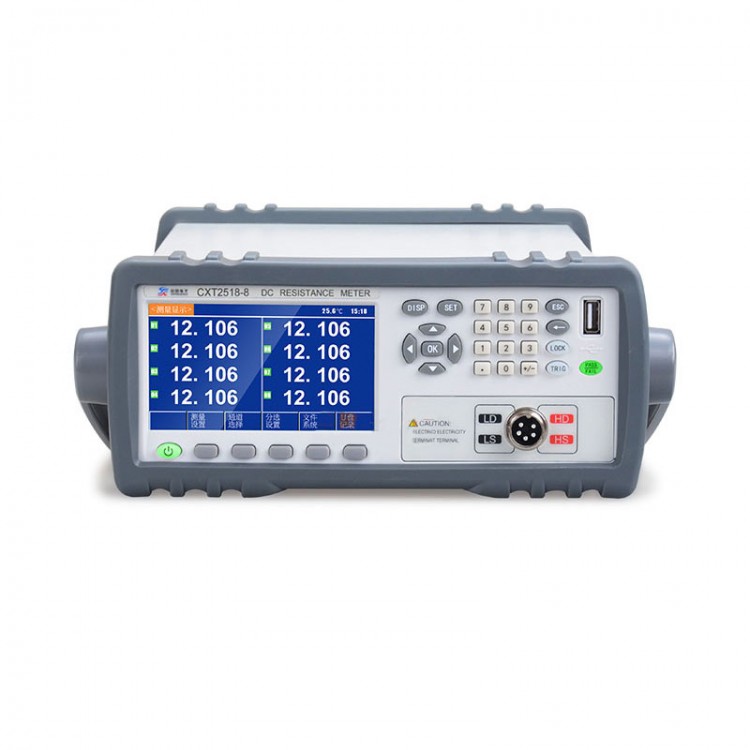

CXT2518-8 DC Resistance Meter 8-Channel Milliohm Meter Designed with 4.3 Inch True Color LCD Screen
Features:
- Automatically detect whether test clips are connected for reliable testing and avoid wrong judgments
- Scan and test multiple-channel resistance, and display sorting results simultaneously
- The upper and lower limits of resistance can be set independently
- Resistance accuracy up to 0.05%
- Resistance resolution up to 10μΩ
- Temperature compensation function (TC) and the basic temperature accuracy is 0.5°C
- Test speed up to 50 times/sec (single resistance)
- Sorting & comparison function: Qualified/disqualified
- Multiple-channel resistance ranges can be selected automatically and independently
- Resistance testing basically does not need to be cleared
- HANDLER, RS232 and USB ports for remote control
- Optional RS485 interface: Using MODBUS protocol, multiple testers can be connected for resistance tests of more channels
- With handler, RS232, USB device, USB host and TEMP ports
Package Included:
- 1 x CXT2518-8
