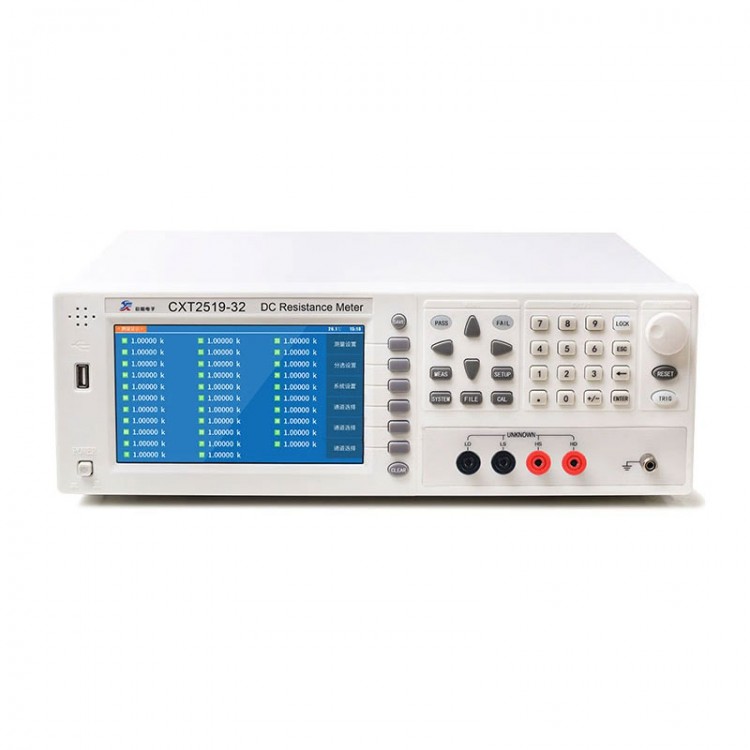

CXT2519-32 1uΩ-2MΩ 32CH Milliohm Meter DC Resistance Meter w/ 7" Screen for Thermopower Elimination
Description:
CXT2519 series resistance tester is a high-precision wide-range automatic DC resistance tester specially designed for multiple-channel resistance tests. It can measure the resistance of 4 channels (CXT2519-4), 8 channels (CXT2519-8), 16 channels (CXT2519-16) and 32 channels (CXT2519-32) at the same time, and display them on the screen. The instrument has high anti-interference. Each channel has an accuracy of 0.02% and a range of 1uΩ~2MΩ. The number of digits displayed is 5½ digits. Its test speed can reach up to 40 times/second. The temperature compensation of the instrument can eliminate the influence of ambient temperature on tests. The instrument has a very convenient sorting function. Handler interface can output the sorting results of all test channels without expansion, and can be equipped with RS232/USB/RS485 interface for remote control and data acquisition and analysis.
The instrument is small, compact and versatile. Through four-terminal test method, it can measure various high, medium and low value resistors with high speed and high precision. It can be applied to: various switch contact resistances; relay working coils and contact resistances; transformers, inductors, motors, and deflection coil winding resistors; coil resistance, shunt resistance, series film resistance and wire resistance; metal riveting resistors for vehicles, ships and aircraft; low DC resistance such as DC resistance of fuses, resistors and conductive rubber, printed board lines and via resistance.
The DC resistance tester can be widely used in most places such as research and development, production lines, and feed testing.
Application:
1. DC resistance measurement of multi-winding transformer
2. Coil DC resistance measurement
3. Multi-winding resistance measurement of motor
4. All kinds of multi-channel resistance measurement, especially suitable for multi-channel resistance measurement with large differences in resistance value of different channels
Features:
- Bad contact detection prevents test misjudgments
- The maximum resistance accuracy is 0.02%, and the minimum resistance resolution is 1uΩ
- Temperature compensation function (TC); basic temperature accuracy is 0.1 °C
- Maximum test range: 1uΩ~2MΩ
- Weak resistance test does not need to be cleared
- The maximum test speed of a single channel: 40 times/second
- 3-level comparison function: pass/over the upper limit/over the lower limit
- Multiple triggers: internal, external, and manual
- HANDLER/RS232/USB interfaces for remote control
- USB drive is supported to record test data and instrument software can be remotely upgraded
- Low voltage test mode effectively protects measured parts
- Thermopower elimination for accurate measurement of low resistance
Package Included:
- 1 x CXT2519-32
