CY-190S OTDR Fiber Optic Handheld 60KM OTDR Fiber Test 1310nm Fiber Detector VFL FC/SC Connector

CY-190S OTDR Fiber Optic Handheld 60KM OTDR Fiber Test 1310nm Fiber Detector VFL FC/SC Connector

Description:
This CY190S is a simple OTDR optical time domain reflectometer in the industry. It integrates powerful analysis software to quickly and accurately detect the location and type of optical fiber cable faults, loss values of optical fibers, and display and store optical fiber test curve data. The ultra-short event blind spot is more suitable for the fiber-to-the-home environment and solves the final hundreds of meters of fiber installation and maintenance for users. It is widely used in the construction, maintenance testing and emergency repair of optical fiber communication systems; the development and production of optical fiber cables. Test and so on.

Features:
- Lightweight and small size makes it easy to carry
- Reliable performance and good repeatability
- It is easy to test the fiber link node length, loss value and fault location
- Integrated visual fault location system for easy detection of fiber optic fault location in blind spots
- 3m ultra short incident blind spot
- It can identify whether optical communication signals are in use in the optical fiber
- The use of lithium batteries, long working hours, easy replacement, more environmentally friendly, suitable for a long time field operations.
- Accurately measure connector type FC/PC
- The instrument is suitable for fault location in engineering construction and maintenance based on FTTX and access network

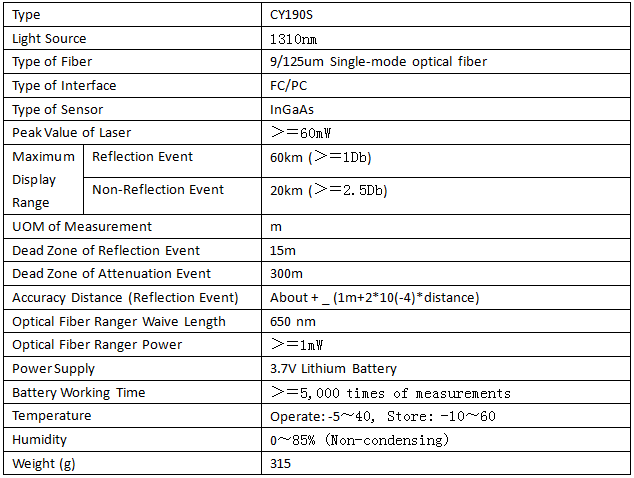

Specifications:

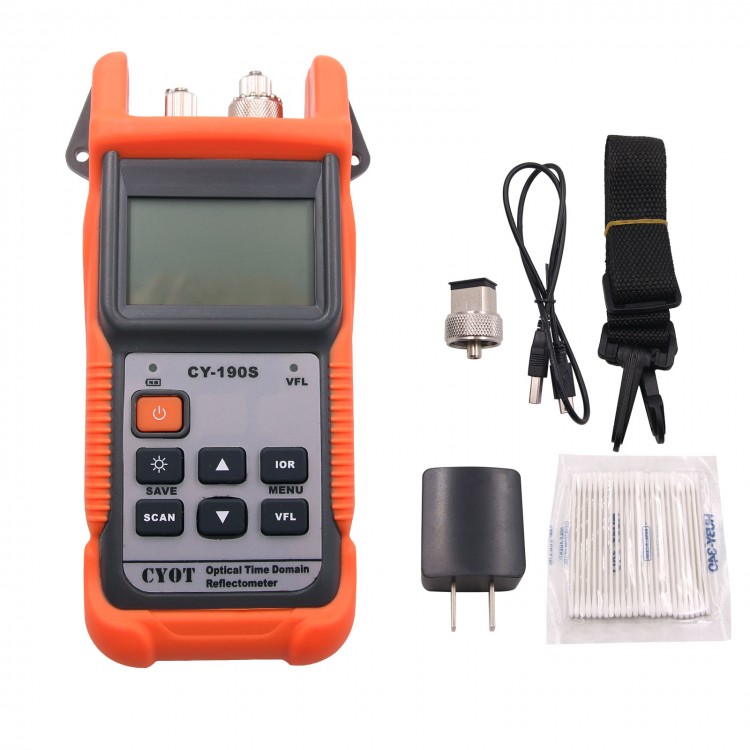

Package Included:
- 1 x OTDR Fiber Optic
- 1 x Carry Bag
- 1 x Optical Converter
- 1 x Bag of Cotton Swab
- 1 x Charger
- 1 x Strap for Handhold
- 1 x Retail Box
