| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $114.95 | $112.61 | $109.09 | $104.40 | Contact US |

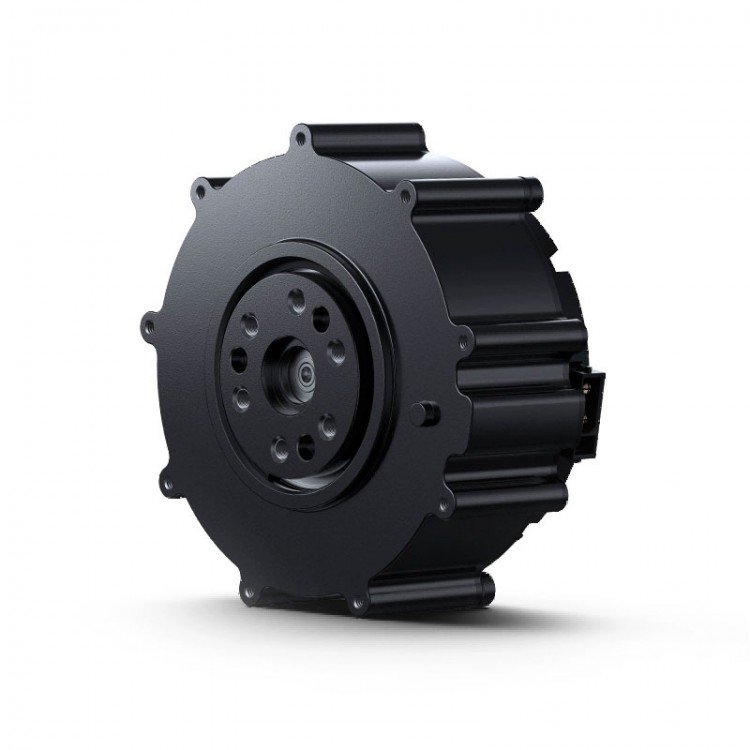

CyberGear Micro Motor High Speed and Precision Motor Intelligent Robot Mechanical Arm for Xiaomi
Specification:
- Motor weight: 317g+/-3g
- Rated voltage: 24VDC
- Constant torque: 4N.m
- Peak torque: 12N.m
- Constant torque maximum speed: 240rpm +/- 10%
- Constant torque maximum phase current: 6.5A +/- 10%
- Peak torque maximum phase current: 23A +/- 10%
- Maximum speed: 296rpm +/- 10%
- Communication method: CAN
- Back electromotive force constant: 0.054 - 0.057V/rpm
- Maximum power-to-weight ratio: 511.04W/kg
- Reduction ratio: 7.75:1
- External diameter: 80.5mm
- Height: 36.5mm
- Torque constant: 0.87N.m/A
Package Included:
- 1 x Motor
