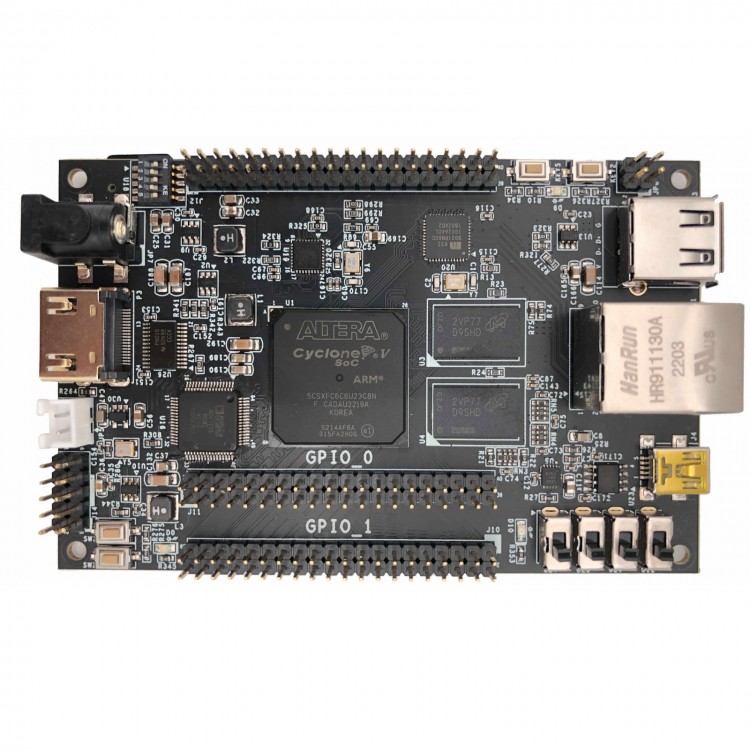

Cyclone V FPGA SoC Board 5CSXFC6C6 Mister FPGA Development Board with 2x512MB Micron DDR3 Memory

Hardware Specifications of the Cyclone V SoC Development Board:
* Main SoC: 5CSXFC6C6U23
* External clock source frequency for the main SoC: 50MHz
* Memory: The Cyclone V SoC development board provides 2x512MB Micron DDR3 memory, model MT41K256M16TW-107:P
* Power supply for the SoC chip: Uses the TPS563201 wide-range input DC/DC converter for TI
* Expansion ports: The development board features three 40-pin headers (2.54mm pitch) for external module expansion
* Button ports: The board provides 4 buttons for testing
* LED ports: The board provides 3 LEDs for testing
* JTAG debug port: The development board exposes the JTAG debug port for both HPS and FPGA, using a 10-pin, 2.54mm pitch header
* USB HOST port: The board exposes a USB HOST port, utilizing the Microchip USB3300C chip
* Gigabit Ethernet port (RGMII): The board exposes a Gigabit Ethernet port, using the Microchip KSZ9031RNX chip
* HDMI-compatible display interface: The board exposes an HDMI-compatible interface, using the ADV7513 chip for ADI
* UART serial port: The board exposes a UART serial port, using a USB-to-serial chip, WCH CH340N
* MicroSD/TF card interface: The board exposes a MicroSD/TF card slot
* Dimensions: The size of the Cyclone V SoC development board is 106.9mm x 68.6mm. And the recommended input power supply is a 3A 5V DC.

Package Included:
* 1 x 5CSXFC6C6U23 Development Board (Default Black PCB with Solder Mask)
* 1 x 32GB TF Card
* 1 x Mini-USB Cable
* 1 x 4A 5V DC Power Supply

Packaging Details:
* Weight: 0.3kg
