Description:
1. CYT-1024LI-AU is a professional network stage lighting controller, converter, console extender (ArtNet<—>DMX512).
2. It uses a high-speed processor, stable and reliable work, following standard protocol for ArtNet, providing RJ45 network interface and standard DMX512 output interface. It has 2 input/output lines with a total of 1024 channels (suitable for various types of small and medium stage venues).
3. It can control all lamps and equipment that support DMX512 signal.



More Details:
* Set to input mode: DMX512->ArtNet. Connect a physical console to a computer 3D software to control the effect of simulated lamps.
1. DMX512-ArtNet mainly packs DMX512 signal input from a physical console into network data, and then transmits it to a computer through the network. Computer software decodes and controls your lighting equipment on a simulated stage to demonstrate stage effect.
2. It can support DMX512 signal input from all physical consoles to this controller and then to a computer.
3. You can connect a physical console to software for Sunlite's Magic 3D Easy View without charges. It is a simple and easy-to-use stage lighting scene simulation software!
4. It can support software for WYSIWYG external physical console to enter computer 3D simulation, software required for lighting design.
5. Can support professional lighting simulation software for LightingStudio (users need to buy dongle on official website)

* Set to output mode: ArtNet->DMX512. Control the operation of physical lamps through computer software.
1. ArtNet-DMX512 is an Ethernet network control system based on ArtNet protocol. It can convert network data packets in the ArtNet protocol on the network into standard DMX512 data output, thereby controlling the effect of physical lamps.
2. Can replace your physical console to control physical lighting equipment.
3. Support all lighting control software with ARTNET output. For Freestyler, LightingStudio (lighting studio), Abuelites, PC_DIMMER, MagicQ, DMXControl, DMatriX, Tiger Touch simulator, Magic Easy 3D View, GrandMA2 on PC (users need to purchase a crack version) and so on all software that supports ART-NET, sACN E1.31 output interface.
4. Chinese version for FreestylerX2 is provided for free, which can support 1024 channels.
5. Can support for professional LED matrix software Madrix (we only provide a free trial version, please purchase a professional version).
6. Can be used as DMX signal extender for physical network console.

Features:
1. It is suitable for multiple operating systems Windows, MAC, Android (Note: To use on systems other than systems for Win, please download and install software suitable for your system);
2. Small square box type: small and light, easy to carry, easy to install with ear holes;
3. Simulated lights can be controlled through a physical console, which is a must for lighting designers;
4. Actual lamps can be directly controlled by computer software or console simulator, which can replace a physical console;
5. 1024 channels (2 DMX lines), standard 3-pin male/female XLR seat;
6. Built-in high-speed network processor chip, 10/100M adaptive network port;
7. Convenient, fast, professional and stable;
8. Default IP of the device is 192.168.0.98, you can set the IP address according to your needs;
9. A network cable can transmit up to 256 DMX lines (domains).

Package Included:

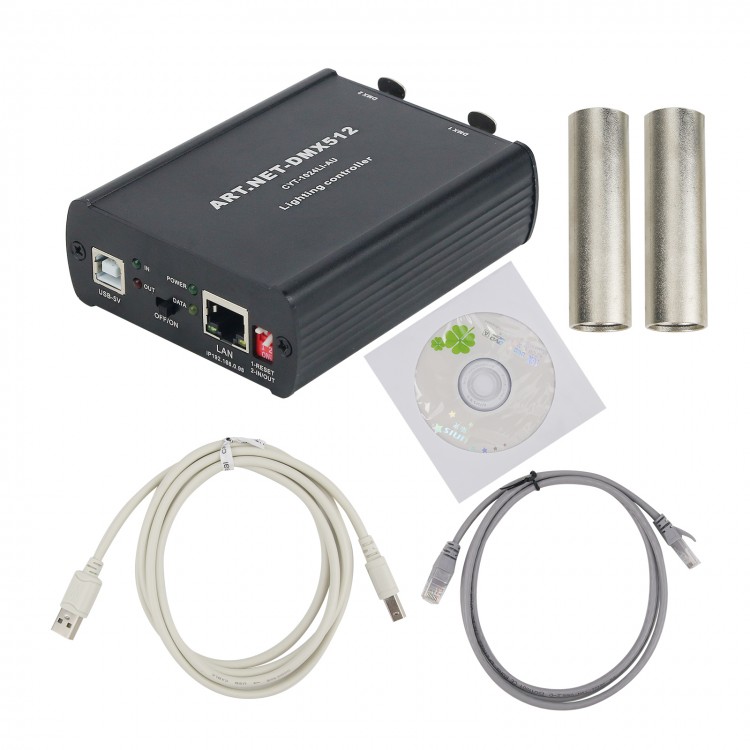

- 1 x Set of DMX Controller

Wiring Diagrams:
* Computer-Network Controller-Lighting Equipment


* Computer-Router-Network Controller-Lighting Equipment


* Physical Console-Network Controller- Light Equipment


* Physical Console-Network Controller-Computer


Some Screenshots of Computer Lighting Software:
