CZE-7C Stereo Frequency Modulation Transmitter Adjustment 1W/7W Radio Emitter Combo with Antenna
Product Features:
- Stereo LCD Display,1W,7W power can switch use
- Frequency can be set at the range 76M~108
- Excellent heat dissipation,stable power,fine tone quality
Product Parameter:
- Size:12.5x9.5x 5.5MM (LxWxH)
- Power voltage:DC12V
- Working current:<1.5A
- Frequency range:76~108MHz (65~90MHz can be customed)
- Frequency stepper:0.1MHz
- Frequency stabilization mode:phase-locked frequency compose
- Modulation mode:FM Stereo sound
- Frequency offset:+/-75KHz
- Pre emphasis delay:50us
- S/N(stereo sound):>40db
- Stereo crosstalk:-45dB(5000Hz~15000Hz)
- Frequency response:40KHZ~15KHz+-0.2db(stereo sound)
- Distortion degree:<0.3%
- Modulation degree:15%
- Input level:-15dBV
- RF output resistance:50ohm
Package List:
- 1x Main unit

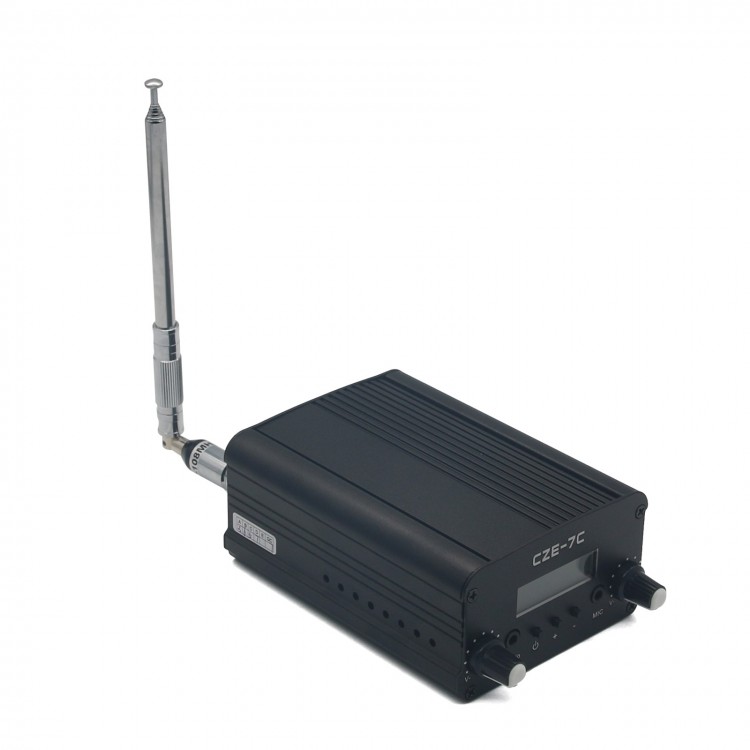

- 1 x Telescopic antenna
