Tags: CZE-7C
| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $67.38 | $66.01 | $63.95 | $61.20 | Contact US |
CZE-7C Stereo Frequency Modulation Transmitter Frequency Adjustment 1W/7W Radio Emitter Combo
Parameters:
- Working voltage:11V-13V (rated voltage: 12V)
- Working current: <1.5A
- Frequency range: 76-108MHZ
- Frequency stability:+-10PPM
- Frequency stepping:100KHZ
- Working temperature: -10---45 degree
- Output resistance:50 ohm
- Power range:1W, 7W
- Noise-signal ratio:>=60db
- Harmonic radiation: <=-60db
- Audio Distortion: 0.2%
- Frequency response: 50HZ-15000HZ
- Pre emphasis delay: 50us
- Resolution: >=65dB
- Input level:<=15dB
- KHz:+-75KHZ
- Dimension: 128*93*55MM
- Weight:423g

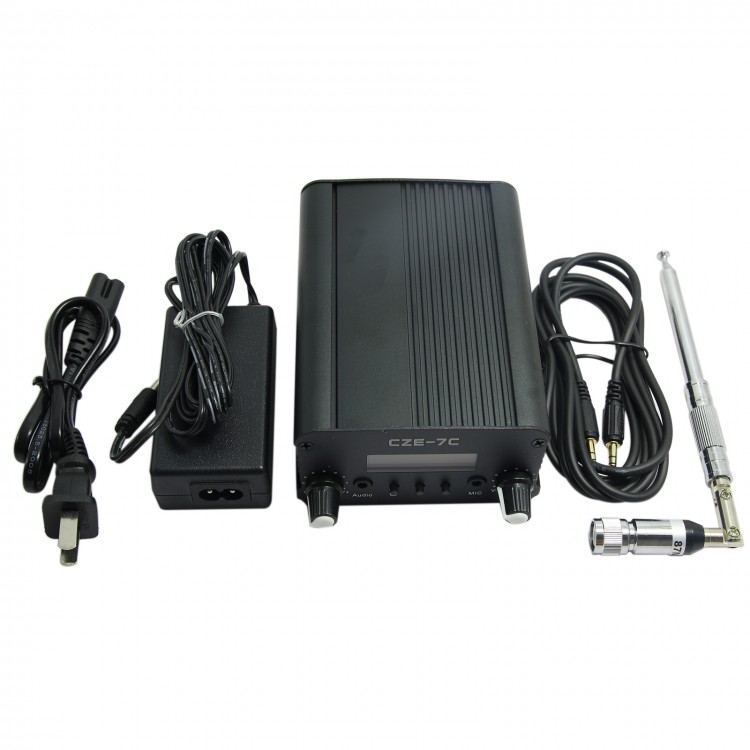

Package list:
- CZE-7C x 1
- GP antenna x 1
- Power supply adapter DC12V 2A x 1
- 3.5mm Audio line x 1
