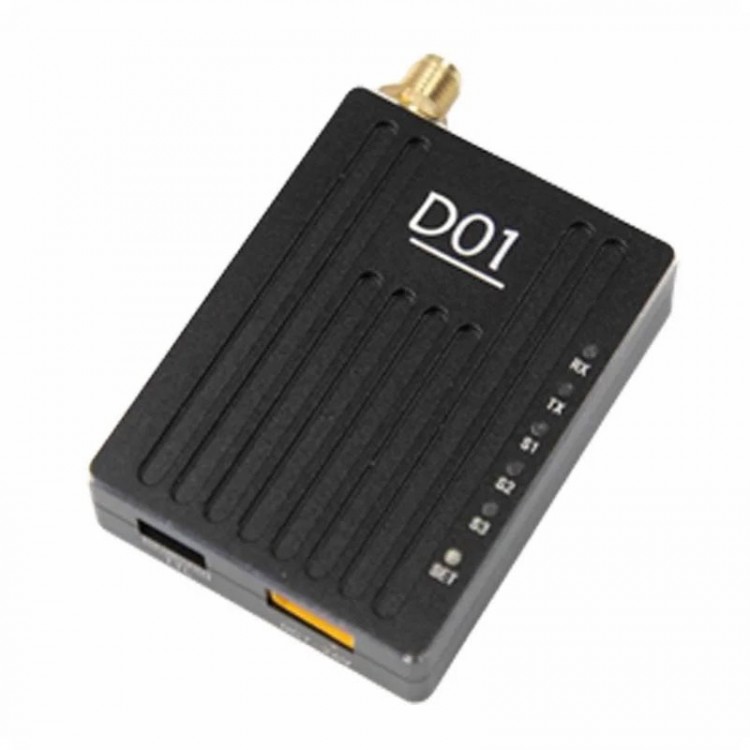

D01 1W 60KM Telemetry Radio Wireless Data Transmission Module with GH1.25-4PIN Data Interface
Description:
The D900-MINI series is a miniaturized telemetry radio of the D900 series. The D900-MINI series mainly includes D01 and D02 models. The only difference between the two is the interface. The D01 is mainly used for the UAV end, while the D02 uses the type-c interface for the ground end. Both of them have the characteristics of small size, good integration and high sensitivity. D900-MINI series products work in the frequency band of 902~928MHz. In a good environment, the maximum transmission distance can reach 60KM.

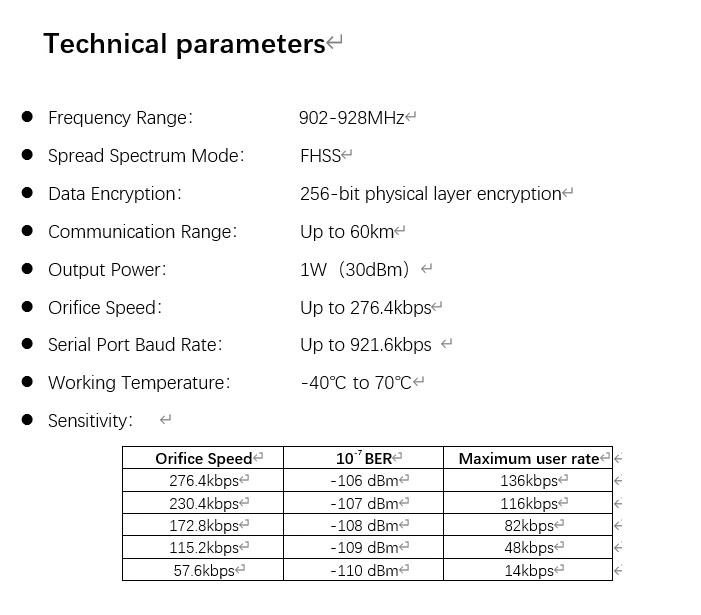

Specifications:
- Size: 62mm x 40mm x 13mm/2.4" x 1.6" x 0.5" (including 9mm/0.4" SMA)
- Weight: 43.5g/0.1lb
Indicator Lights and Button:
- TX light (red): When the TX light is on, the module is sending data.
- RX light (red): When the RX light is on, the module is receiving data.
- Power-on and configuration SET button: Press and hold the SET button and then power on. The released button will enter the AT command which is used to set parameters.
- S1, S2 and S3 lights (RSSI green lights): The greater the number of the lights, the greater the signal receiving strength.
Package Included:
- 1 x Telemetry Radio
Packaging Details:
- G.W.: 0.15kg
