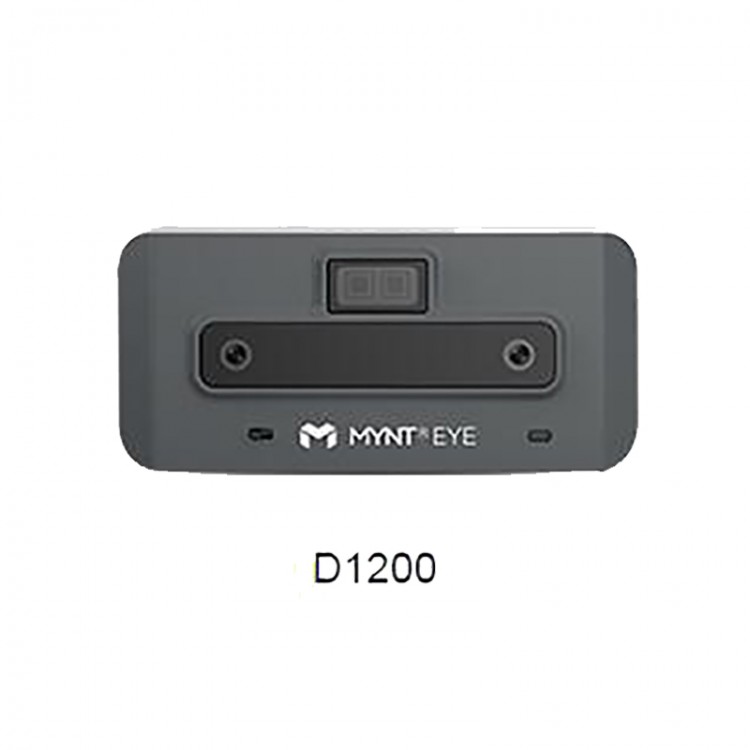

D1200 Binocular Depth Camera IMU Somatosensory Camera Support IR Range 0.2-3m/0.7-9.8ft For Android

D1200 Binocular Depth Camera IMU Somatosensory Camera Support IR Range 0.2-3m/0.7-9.8ft For Android

Description:
It is a Binocular Camera Depth Mobile version. It adopts Type-C interface for the first time, supports Android platform, is equipped with color image sensor, and integrates infrared structured light technology, which can be applied to 3D Many stereo vision related fields such as perception, three-dimensional recognition, and stereo measurement are very suitable for secondary development of related applications.

Advantages:
* Type-C interface
* IR active light
* Lightweight and portable 44g
* Applicable to a variety of AI scenarios

Specifications:
- Model: Depth Mobile Version D1200
- Size: 75.5x34.5x12.9mm
- Frame rate: Up to 30FPS
- Resolution: 2560x720; 1280x480
- Depth resolution: 1280x720; 640x480
- Support IR: YES
- IR detectable distance: 2m
- Viewing angle: D:66° H:59° V:35°
- Color mode: Color
- Pixel size: 3.0 x 3.0μm
- Baseline: 40.0 mm
- Focal length: 3.3mm
- Depth working distance: 0.2-3m/0.7-9.8ft
- Exposure method: Rolling shutter
- Maximum power consumption: 0.75-2.5W at 5V DC from USB
- Output data format: YUYV/MJPG
- Data transmission interface: Type-C/Micro USB2.0
- Product weight: 44g
- UVC mode: YES

Software:
- Support operating system: For Android 5.x ~ Android 8.x

Surroundings:
- Operating temperature: -10°C to 55°C
- Storage temperature: -15°C to 70°C
- Humidity: 10% to 80% non-condensing

Accuracy:
- Depth measurement accuracy: the error does not exceed 1%

Package Included:
- 1 x Set of Depth Camera

If you want to obtain a better depth effect during regular use of binocular depth cameras, you need to pay attention to the following interference factors:
1. When the camera's working scene is illuminated by other strong light sources including infrared bands, it will interfere with the infrared light emitted by the camera's own infrared optical components, resulting in depth calculation errors. For example, under external environmental conditions, the sunlight in each wavelength band is relatively strong, which will pollute the optical pattern information emitted by the camera itself and affect the measurement results. Or under the condition that the interference light source is relatively strong, the working distance of the infrared optical components will become shorter.
2. If the surface of the object to be measured absorbs light severely, for example, an object with a black outer surface will absorb the pattern of enhanced texture emitted by infrared optical components, resulting in insufficient light received by the camera's optical sensor and unclear imaging, which will affect the measurement result.
3. If the surface of the object to be measured is highly reflective, it is difficult for the reflective area to form feature points, which will affect the measurement result.
4. If the object to be measured is in a scene with relatively bright ambient light, the white balance of the camera will be affected, and overexposure will easily occur, which will affect the measurement results.
5. Operating temperature and humidity. The drastic changes in the temperature and humidity of the external environment will cause condensation on the surface of the camera lens, which will reduce the image resolution of the camera. It needs to be placed for a period of time until the water vapor is completely eliminated before using the camera. Please avoid placing the camera in an environment where the temperature or humidity changes greatly.

Precautions For Use:
When using Binocular Depth Camera, follow the precautions below to get a better depth measurement effect.
1. Use in an indoor environment without strong sunlight to obtain higher depth measurement accuracy.
2. Avoid specular reflection light entering the camera.
3. Keep the camera within a suitable working temperature and humidity range.
4. Keep the camera stable, such as using a stable tripod, tightening screws, etc.
5. If the camera is installed on a moving object and there are vibrations and bumps, it is recommended that the camera installation design should consider shock absorption measures.
6. If the application scene is an outdoor scene, the camera's waterproof and moisture-proof measures need to be considered.
