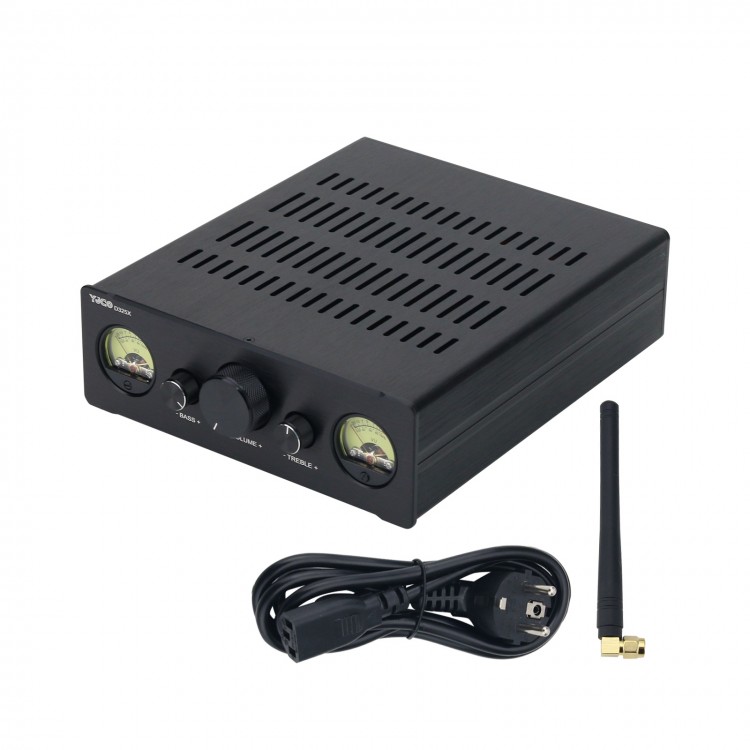

D325X High Power TPA3255 Dual Channel Balanced Digital Bluetooth5.1 Audio Power Amplifier (for QCC3034 Bluetooth)
Description:
- Using the TPA3255 digital power amplifier chip, the output power can reach up to 300W per channel, and the distortion is very low. The dual mechanical watch design takes the overall style to the next level.
- The D315 power amplifier is equipped with a high-power LLC switching power supply, with a total power of up to 600W, which is higher in power and lower in ripple compared to traditional switching power supplies, resulting in better sound quality. In order to further improve the sound quality, the main filter capacitor uses FC series capacitors for Panasonic, which provide warm sound, thick mid frequency, natural warmth, and excellent high-frequency extension. The coupling part uses advanced audio capacitors for ELNA to further improve sound quality. The machine operational amplifier is a replaceable design, and this machine comes standard with a JRC5532 operational amplifier, and you can also replace it with a more advanced operational amplifier according to your own needs.
- The D325X has a built-in 3034 Bluetooth module that supports APTX HD lossless transmission, and an independent decoding chip PCM5102, making the Bluetooth output comparable to CD player input. It is very convenient to use.
- Supports two wired inputs, XLR and RCA, which can be compatible with more audio sources.
Precaution:
- Bluetooth connection has the highest priority, and when Bluetooth is connected, RCA and XLR inputs will be disconnected.
- The Bluetooth name is "YJHIFI", search for the name and connect it.
Specification:
- Model: D325X
- Input: RCA, XLR, Bluetooth
- Output: 2 groups of mini crystal wiring terminal
- Working voltage: AC220V
- Standby power consumption: 1W
- Bluetooth: for QCC3034
- Bluetooth support: for SBC / AAC / APTX / APTX-LL / APTX HD, 16 - 24Bit, 44.1 - 48KHz
- Power amplifier chip: TPA3255 x 1
- Output power: 300W x 2/4ohm, 150W x 2/8ohm
- THD: < 0.02%
- SNR: 110DB
- Frequency response: 20 - 20K at 1KHz +/- 0.3DB
- Product size: 240 x 190 x 65mm
- Product weight: 1.7kg
Package Included:
- 1 x Host
- 1 x Power Cable
- 1 x Bluetooth Antenna
- 1 x User Manual
