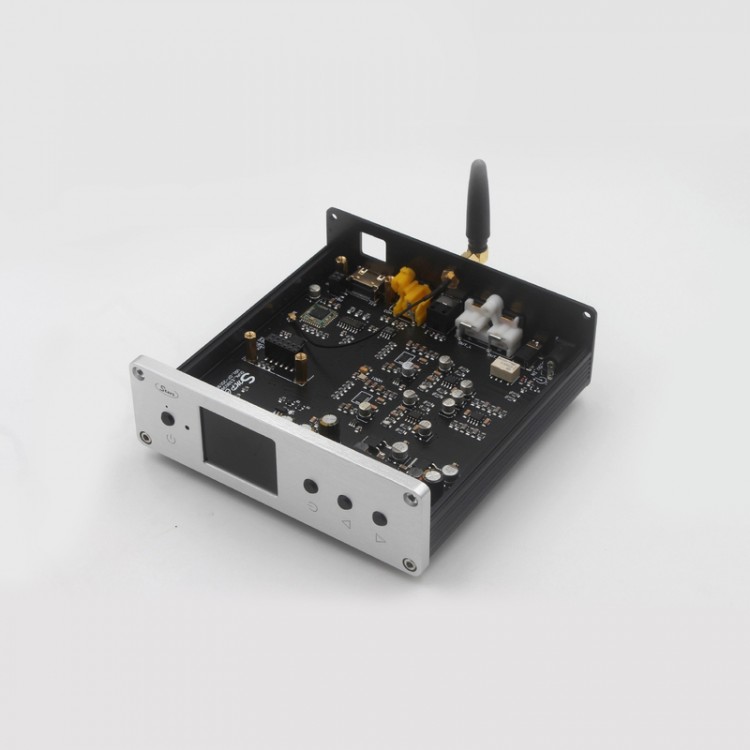

D38 ES9038Q2M DAC DSD Bluetooth 5.0 DAC Bluetooth Decoder w/ Remote Control (Without USB)

D38 ES9038Q2M DAC DSD Bluetooth 5.0 DAC Bluetooth Decoder w/ Remote Control (Without USB)

Features:
- Support IIS/Coaxial/Optic/Bluetooth inputs
- Not for U disk, memory card, nor mobile hard disk.
- D38 is equipped with CSR8675 Bluetooth chip, which supports for audio coding such as LDAC, APTX HD, APTX, AAC, SBC. High-quality digital audio is output to 2pcs ES9038Q2M through Bluetooth 5.0 CSR8675, which realizes 96Khz / 24Bit high-definition decoding, and obtains sound quality far better than CD.
- Enable external connection of IIS input. With IIS input function based on HDMI interface, it is convenient to connect high-end digital players, USB interface and other digital devices with IIS output based on HDMI interface. This HDMI interface is limited to IIS input, and does not support the HDMI interface for multimedia video output such as TV boxes and notebook computers.
- 2pcs ES9038Q2M decoder chip. Support DOP decoding, the sound is greatly improved than ES9018, featuring dynamic, wide sound field, pure sound, no harshness. Chip characteristics -120dB THD + N, + 129dB DNR. Chip specifications are not equal to the machine parameters.
- 100Mhz low phase noise crystal oscillator. The ES9038Q2M chip is particularly sensitive to clock phase noise. The low phase noise clock signal plays a very important role in audio signal restoration.
- High-quality raw materials. Using HiFi capacitors, OPA1612 op amp, 100MHz low phase noise crystal oscillator, DS8921 coaxial receiver, CSR8675 HD Bluetooth receiver, relay for lossless mute processing, isolated power module, LT763 low noise LDO, APD151 low noise LDO and 90LV048 high speed differential receiver.

Digital Input:
- Coaxial:
* PCM 44.1KHz-192KHz / 24Bit;
* DSD DSD 64 (DOP)
- Optical fiber:
* PCM 44.1KHz-192KHz / 24Bit;
* DSD DSD 64 (DOP)
- IIS:
* PCM44.1KHz-384KHz / 32Bit;
* DSD DSD 64/128/256/512 (Native DSD)
- Bluetooth: For LDAC / apt xX HD / apt X / AAC / SBC

Analog Output:
- RCA output: 2.4Vrms / -0dB
- THD + N: 0.0005%@1KHz

Power Supply Requirements:
- Power adapter: input: AC110-240V50 / 60H; output: 5V / 2A
- Host power supply voltage: DC voltage regulation +5V, voltage range: ±5%
- Host Power Interface Specification: 5.5 / 2.1, positive inside and negative outside
- Host standby current: 10MA
- Host working current:> 650MA

Product Dimensions:
- 132 x 128 x 42mm (WxDxH) (Exclude the size of convex parts)

Note:
- The pictures are for reference only, and the actual product shall prevail. As the raw materials supplied by the market may change, the products are subject to change without notice. Please make sure that you don't mind before purchasing. Thank you for your understanding!
- When the whole machine is connected to other power adapters, the input power supply must meet the power supply requirements of the host, especially the power supply polarity and voltage range. Anything beyond the power supply voltage range or the reverse polarity of the power supply will cause damage to the machine.

Package Included:
- 1 x D38 Main Unit
- 1 x 5V 2A Power Adapter
- 1 x Bluetooth Antenna
- 1 x Remote Control
