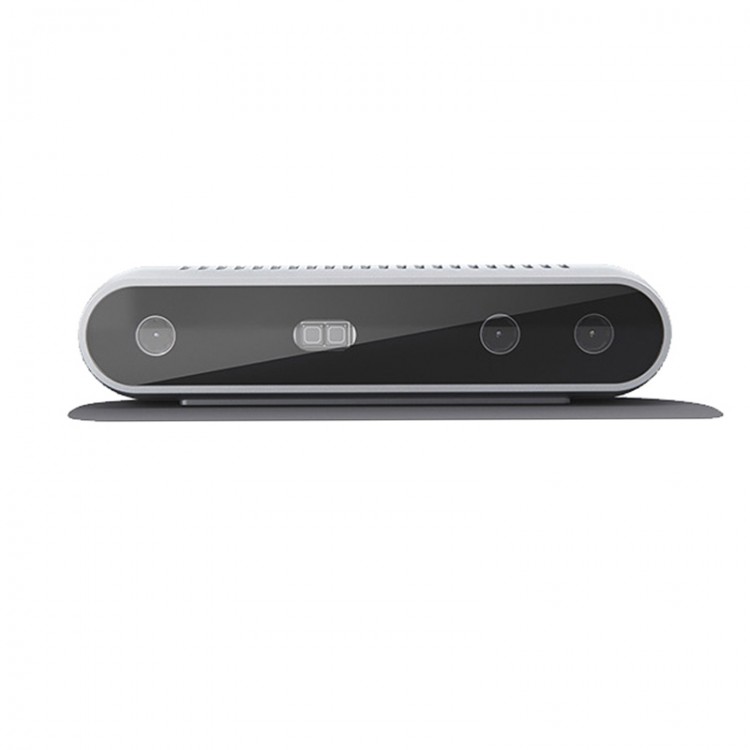

D415 Stereo Depth Camera Binocular Rolling Shutter Range 10M/32.8FT 1280x720 90FPS Outdoors Indoors

D415 Stereo Depth Camera Binocular Rolling Shutter Range 10M/32.8FT 1280x720 90FPS Outdoors Indoors

Description:
D415 has a standard field of view well suited for high accuracy applications such as 3D scanning. With a rolling shutter on the depth sensor, the D415 offers our highest depth quality per degree.

Features:
- Precision and Accuracy. When accuracy is the most important factor for your solution, the D415 is the perfect choice. The D415 has a tightly focused field of view, which offers higher quality depth per degree. Featuring an integrated RGB sensor, the D415 is perfect for facial authentication, 3D scanning or volumetric capture.
- Ideal for Development & Productization. This camera puts an module and vision processor into a small form factor ideal for development and productization. Lightweight, powerful, and low‑cost, it pairs with customizable software to enable a one‑stop shop for assembly and creation of a new generation of sensing solutions and devices that are better able understand and interact with their surroundings.
- Ideal for Precise Measurement. The D415 has a standard field of view and uses rolling shutter sensors. This field of view results in higher depth resolution for smaller objects or when more precise measurements are required. The rolling shutter sensors and smaller lenses allow for a lower cost, yet highly capable depth camera.
- Complete Suite for Simple Integration. The D415 takes latest depth‑sensing hardware and software and packages it into easy‑to‑integrate product. Complete suite of solutions includes vision processors, turnkey modules, cameras, and SDKs and computer vision libraries. Perfect for developers, makers, and innovators looking to bring depth‑sensing vision to devices, it offer simple out‑of‑the‑box integration and enable a whole new generation of intelligent vision‑equipped devices.
- On-Chip Calibration in Seconds. SDK 2.0 now provides an on-chip self-calibration option for your D400 stereo camera. This allows camera calibration in less than 15 seconds without the need for specialized targets. Hassle free!
- Start developing with SDK 2.0. Our open‑source SDK 2.0 offers a variety of wrappers supporting popular programming languages and platforms.

Technical Parameters:
Features:
- Use Environment: Indoor/Outdoor
- Image Sensor Technology: Rolling Shutter, 1.4μm x 1.4μm pixel size
- Maximum Range: Approx. 10 meters. Accuracy varies depending on calibration, scene, and lighting condition.

Depth:
- Depth Technology: Active IR Stereo
- Minimum Depth Distance (Min-Z): 0.16 m
- Depth Field of View (FOV): 65°±2° x 40°±1° x 72°±2°
- Depth Output Resolution: Up to 1280 x 720
- Depth Frame Rate: Up to 90 fps

RGB:
- RGB Sensor Resolution: 1920 x 1080
- RGB Frame Rate: 30 fps
- RGB Sensor FOV (H x V x D): 69.4° x 42.5° x 77° (±3°)

Major Components:
- Camera Module: Module D415
- Vision Processor Board: Vision Processor D4

Physical:
- Form Factor: Camera Peripheral
- Length x Depth x Height: 99 mm x 20 mm x 23 mm
- Connectors: USB‑C* 3.1 Gen 1*
- Mounting Mechanism:
* One 1/4‑20 UNC thread mounting point.
* Two M3 thread mounting points.

Package Included:
- 1 x Set of Depth Camera
