DA-2120C 120W+120W Bluetooth 5.0 DAC USB HiFi Power Amp Digital Power Amplifier with OLED Display

DA-2120C 120W+120W Bluetooth 5.0 DAC USB HiFi Power Amp Digital Power Amplifier with OLED Display

Advantages:
- Bluetooth 5.0 24Bit 44.1KHz
- QCC3008 chip
- For APT-X LL lossless transmission
- OLED display
- PC-USB input 24Bit 192KHz
- Coaxial input 24Bit 192KHz
- Optical fiber input 24Bit 192KHz
- AUX input 24Bit 48KHz
- CNC aluminum alloy body
- Remote control
- Bass pass-through
- 120W+120W

Features:
- Bluetooth DAC power amp.
- 120W+120W with low-pass output.
- Bluetooth 5.0 bass treble EQ sound effect adjustment.
- Ultra-high power 120W+120W: The classic TAS5508 (DSP) and TAS5532A power amplifier chips are used, and output power is up to 120W+120W. Equipped with a high-quality 32V5A power adapter, the power amplifier can drive most bookshelves/desktops/desktops/outdoors/floor standing speakers on the market.

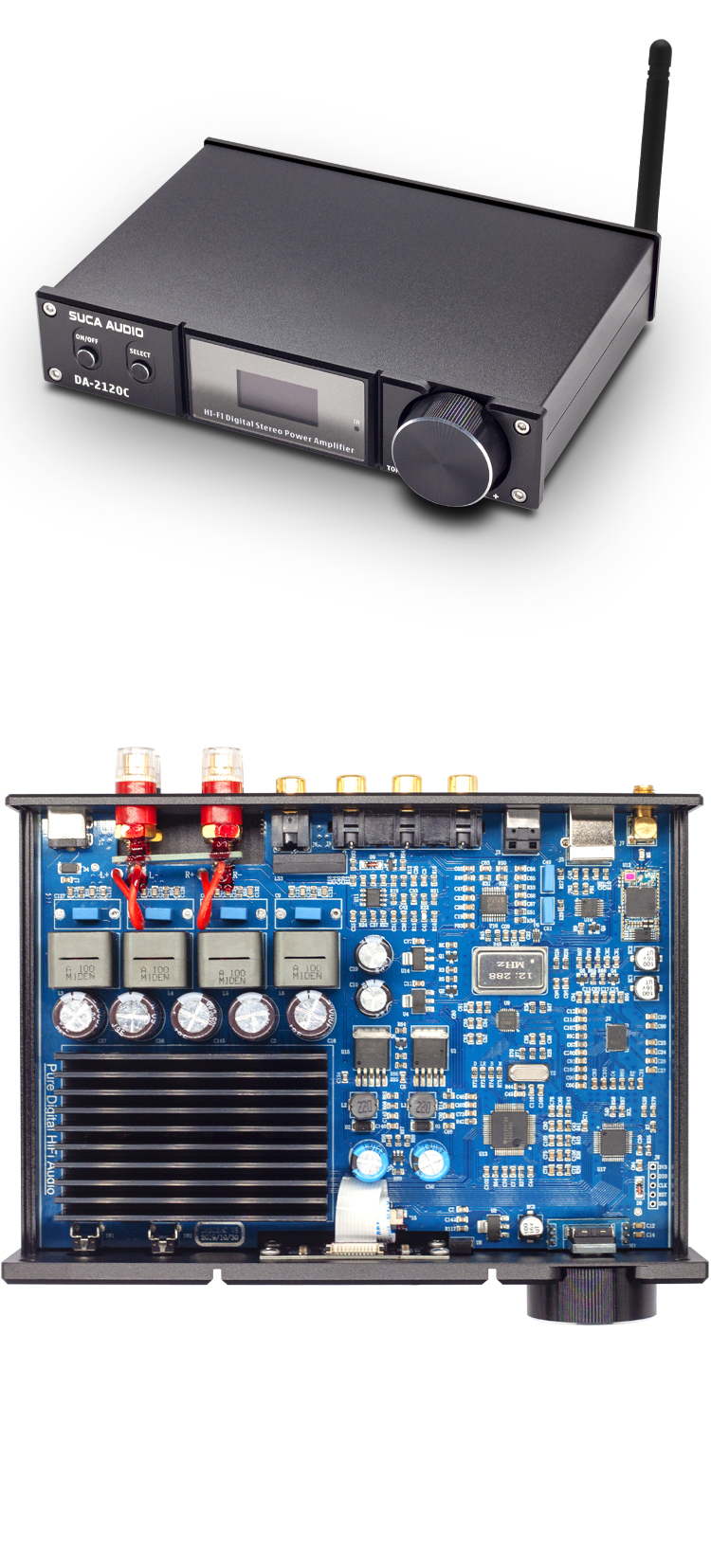

- Reasonable circuit layout and neat wiring of internal components. Excellent workmanship, selection of high-quality components to ensure product quality and high-fidelity HIFI sound quality. Built-in large heat sink extends the service life of the whole machine.

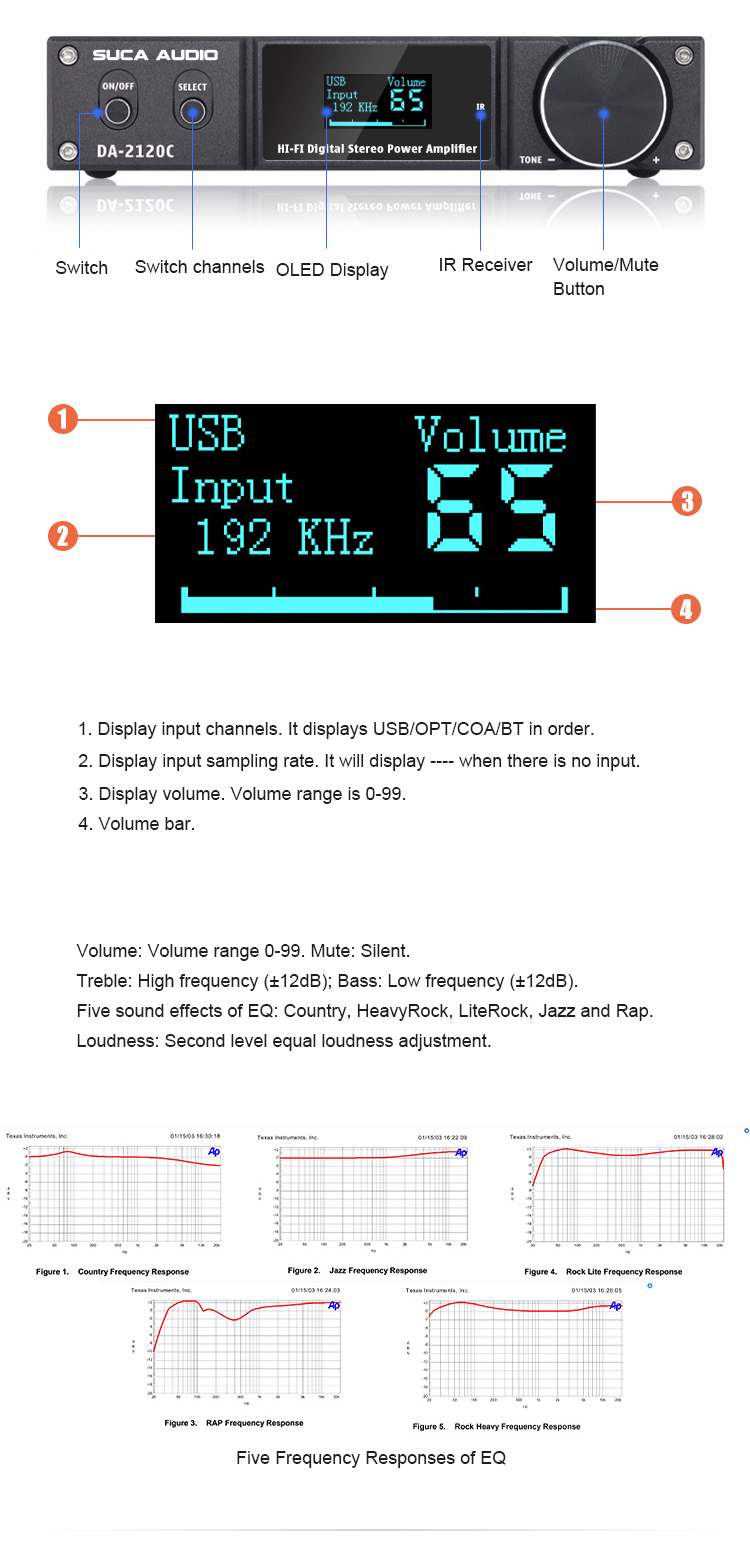

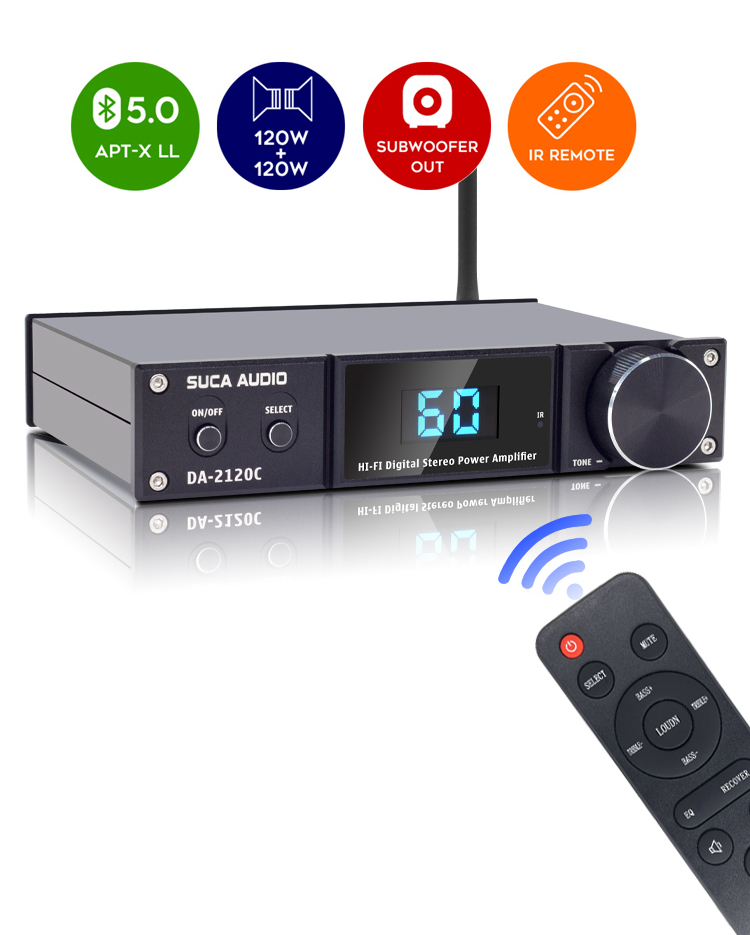

- OLED display and remote control: OLED cold light display shows real-time work information and status of DA-2120C. All functions can be operated and set with our remote control.
- With ±12dB high and low bass adjustment and EQ effect adjustment. Separate treble and bass adjustment, sound quality is under your control. Support pass-through function, you can turn off all sound effects to listen to the most original sound of HiFi.

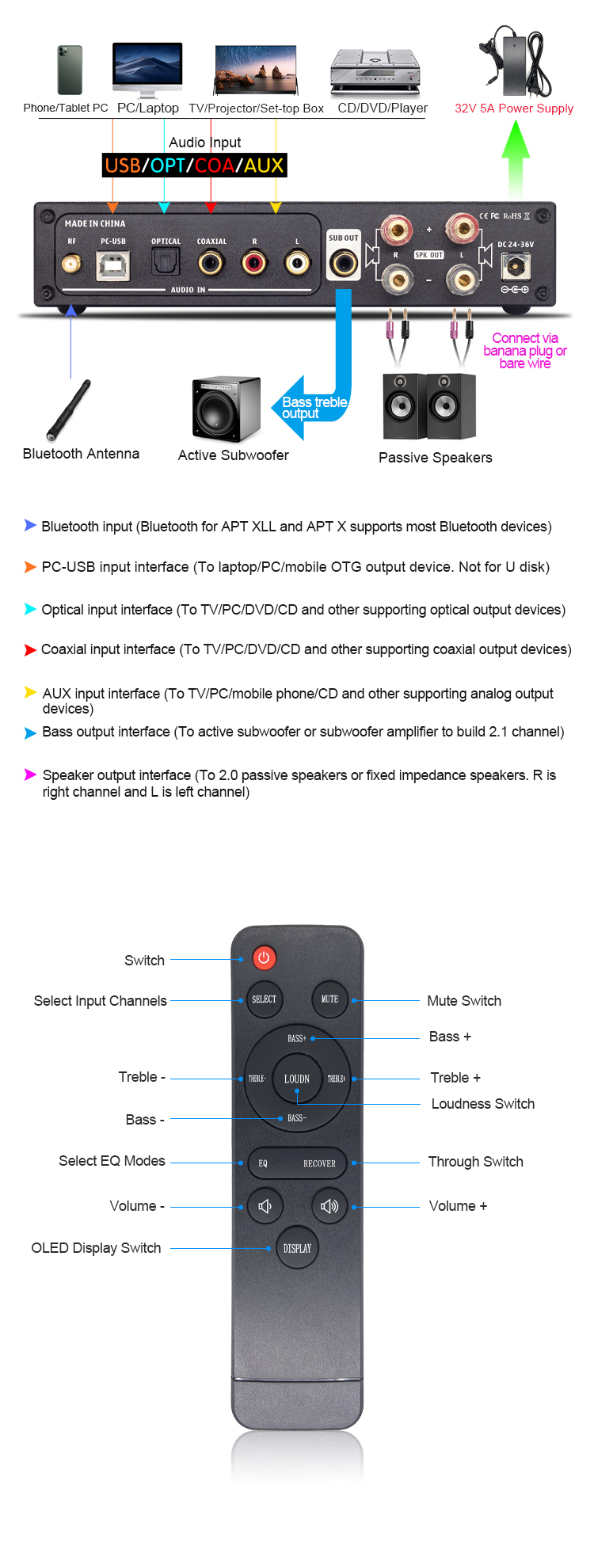

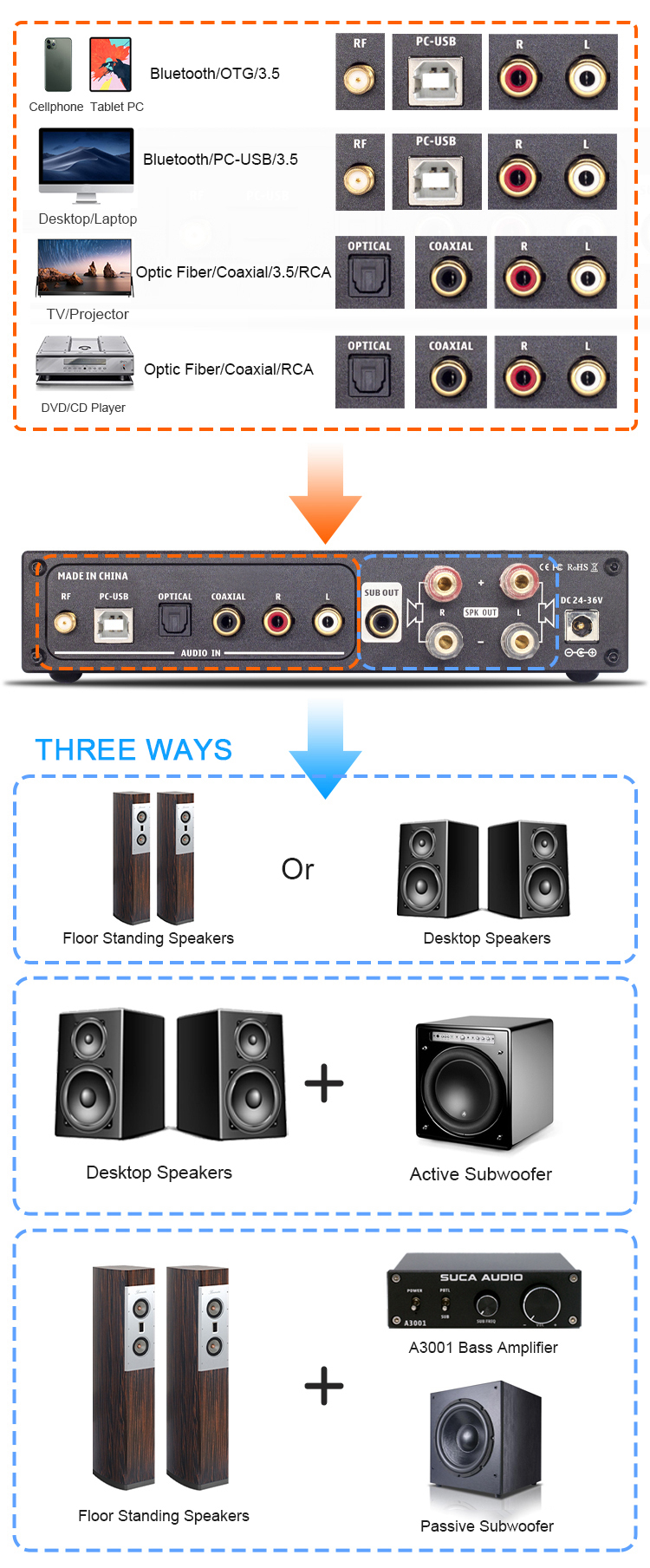

- Compatible with a variety of playing devices: Bluetooth/PC-USB/optical/coaxial digital interface and RCA analog interface.
- Power-off memory function. USB, Bluetooth, coaxial, optical and AUX inputs.

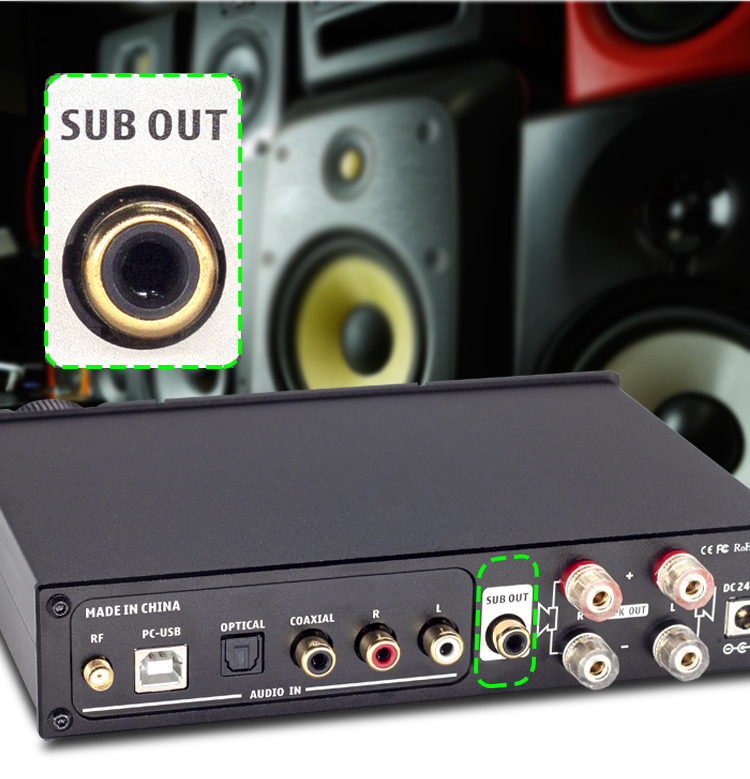

- Low-pass output: It can be used to connect active speakers to build a 2.1 environment, which greatly enhances bass effect and shocking auditory effects, making you feel like you are in a cinema or concert.
- Using imported QCC3008 chip, Bluetooth 5.0 version, providing high-quality wireless audio performance, supporting for APTX, APT XLL and other technologies, reaching HIFI standards. The signal is more stable, the transmission is more high-definition, and service life is longer.
- QCC3008 Chip: Bluetooth 5.0 version. For dual channels. Supports for APT-X, HFP, A2DP, I2S and TWS. For apt-X LL lossless transmission and ultra-low delay.

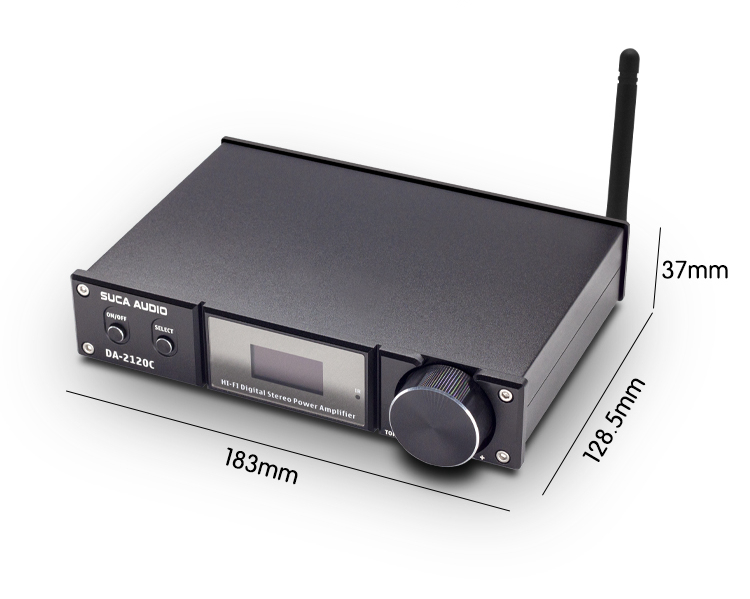

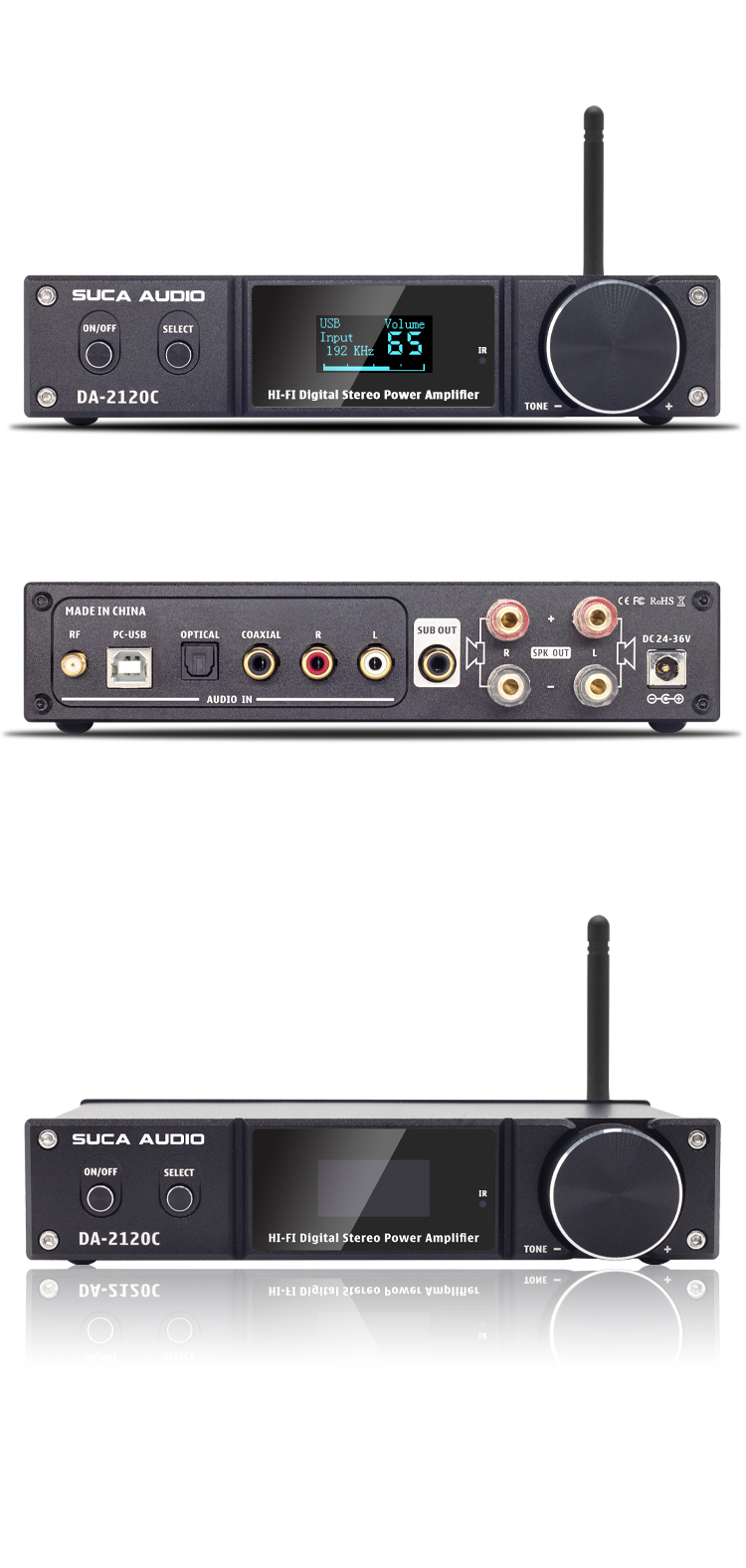

- Unique front panel. Black aluminum alloy body. Overall structure is simple and material is silky and shiny.

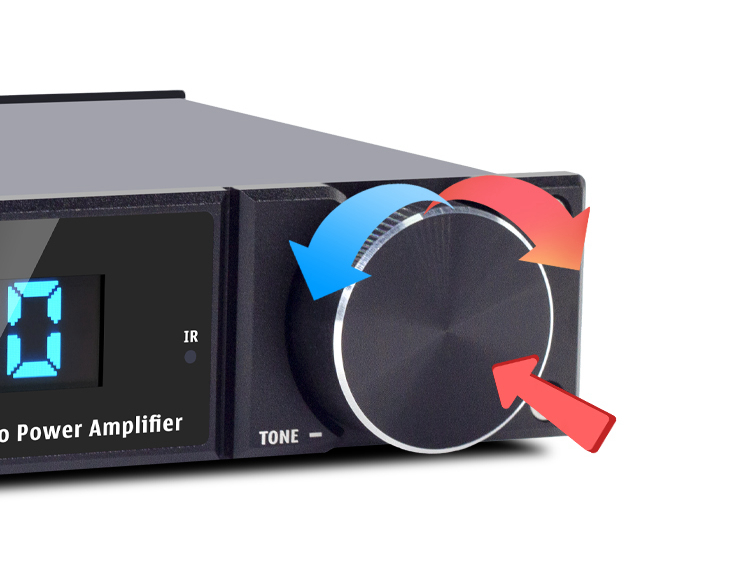

- Multifunctional knob enables easy operation. Composite central control encoder, volume adjustment knob. Rotate left and right to adjust volume. Press to knob to make it Mute.

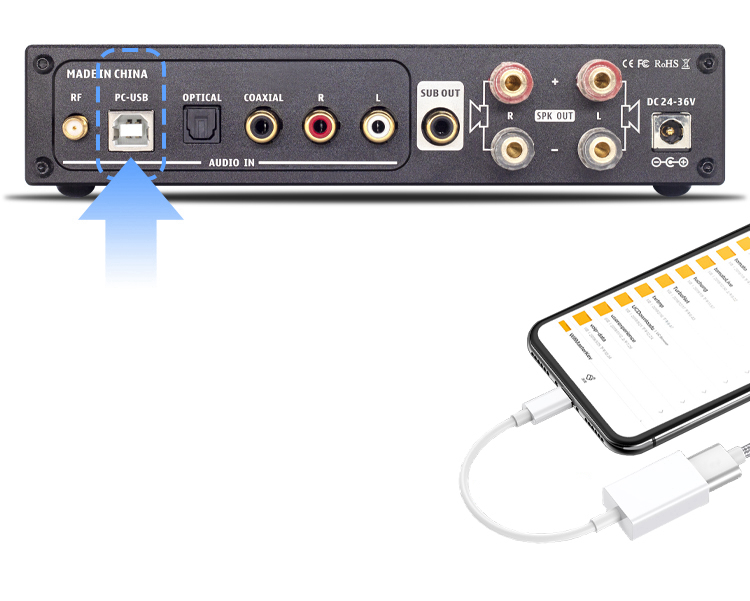

- With PC-USB interface on the rear panel. DA-2120C also supports mobile phone OTG transmission, and directly plays the lossless music files in your mobile phone. CD-level restored HIFI music. Cannot read U disk. PC-USB supports mobile phones, but the system for Android requires mobile phones to support OTG functions. The system for IOS needs to be equipped with an OTG adapter cable for Apple (please prepare OTG adapter cable by yourself). If you want to play lossless files on your phone, please download player for HiBy Music.

Specifications:
- Product model: DA-2120C
- Chipset: CM6642+TAS5508+TAS5352A+QCC3008+CS8422+WM8782
- Working voltage: DC 24-36V (voltage cannot exceed 36V)
- Input sensitivity: 0.775V
- Frequency response range: 20Hz-20kHz (±1dB)
- Signal to noise ratio: ≥105dB
- Distortion: 0.001%
- Bluetooth version: BT5.0 (QCC3008 chip)
- Bluetooth support: For ACC, SBC, aptX, aptX LL
- Speaker matching impedance: 4-8Ω
- Headphone maximum output power: 120W+120W 4Ω load
- PC-USB supports the highest sampling rate: PCM192kHz/24Bit
- Coaxial supports the highest sampling rate: PCM192kHz/24Bit
- Optical fiber supports the highest sampling rate: 192kHz/24Bit
- PC-USB support operating system: For XP/Win7/Win 10/mac/Linux/Mobile OTG
- Audio input interface: Bluetooth/PC-USB/optical/coaxial/RCA
- Audio output interface: Crystal banana jack/gold-plated bass port (connected to active subwoofer)

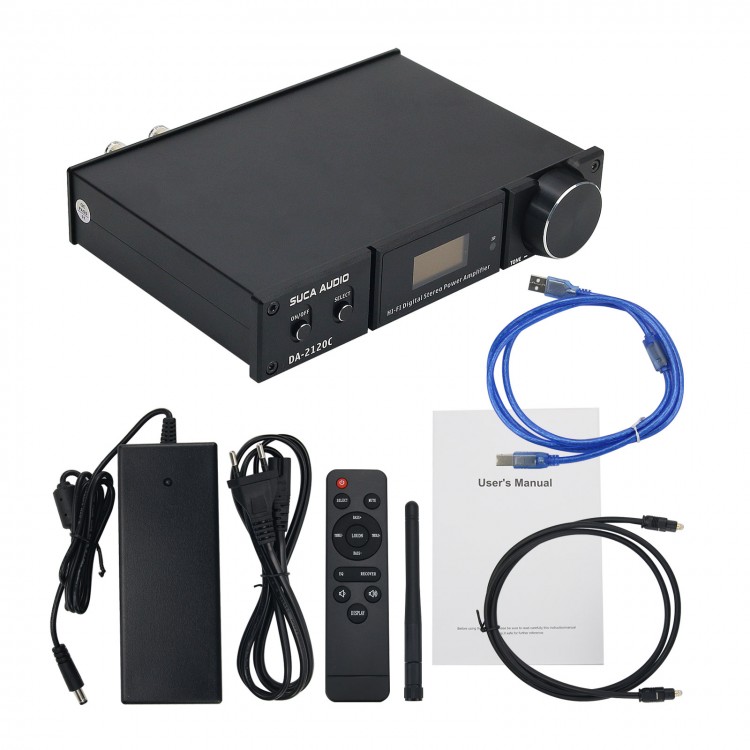

Package Included:
- 1 x DAC Amplifier
- 1 x Remote Control
- 1 x 32V 5A Power Adapter
- 1 x User Manual
- 1 x USB Connection Cable
- 1 x Optical Fiber Cable
- 1 x Bluetooth Antenna

Note:
- It is assembled.
- Battery for remote controller is not included in the package.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
